Descriere

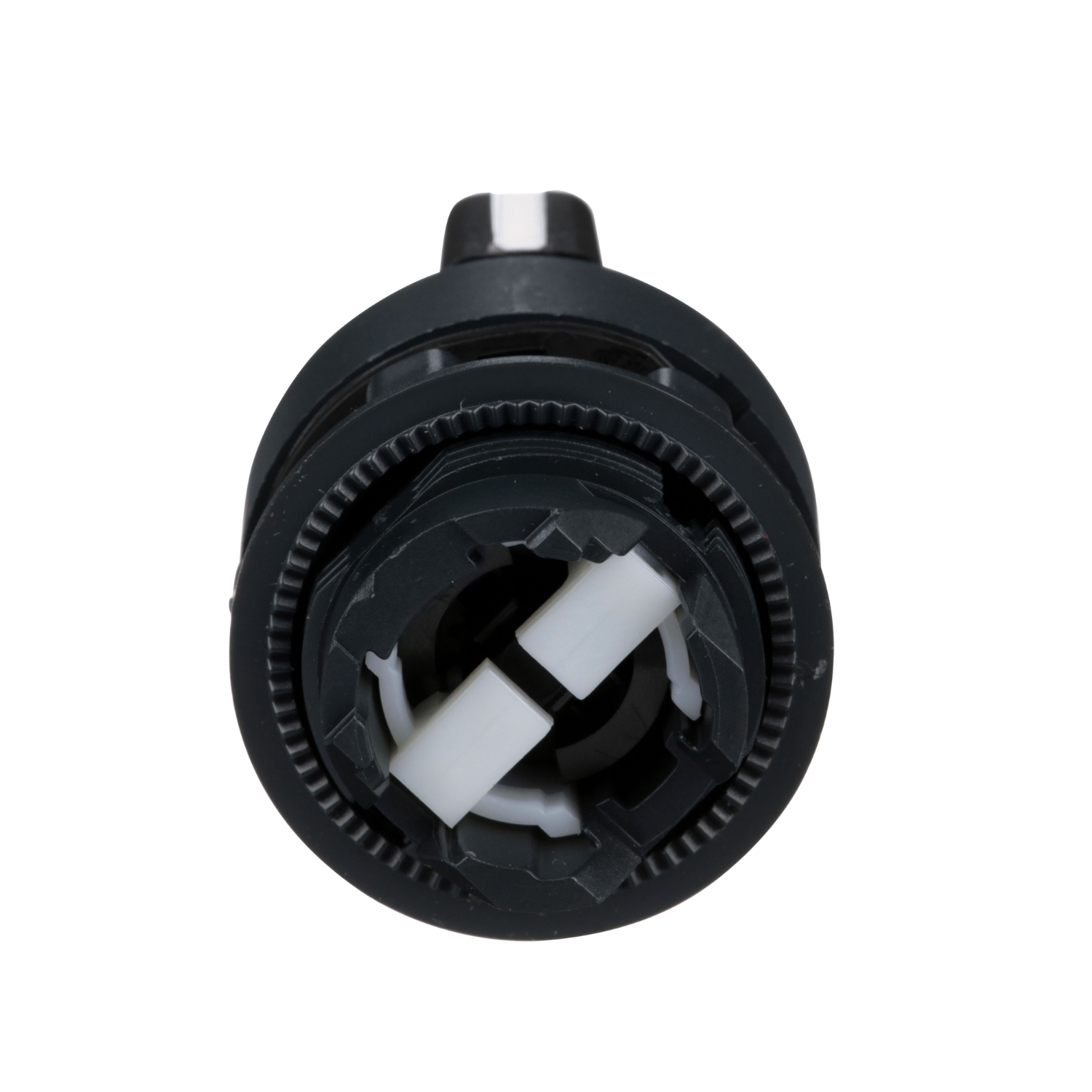

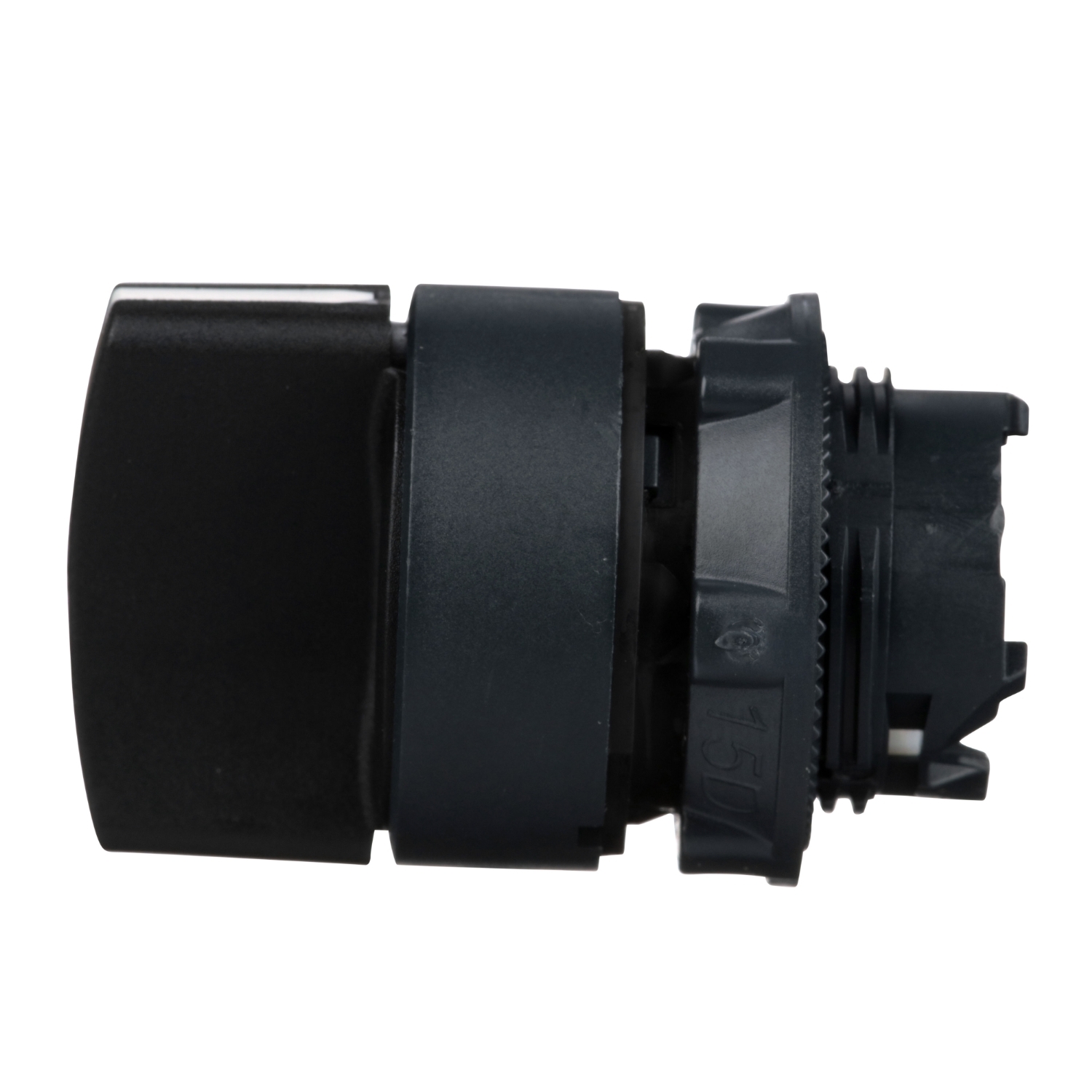

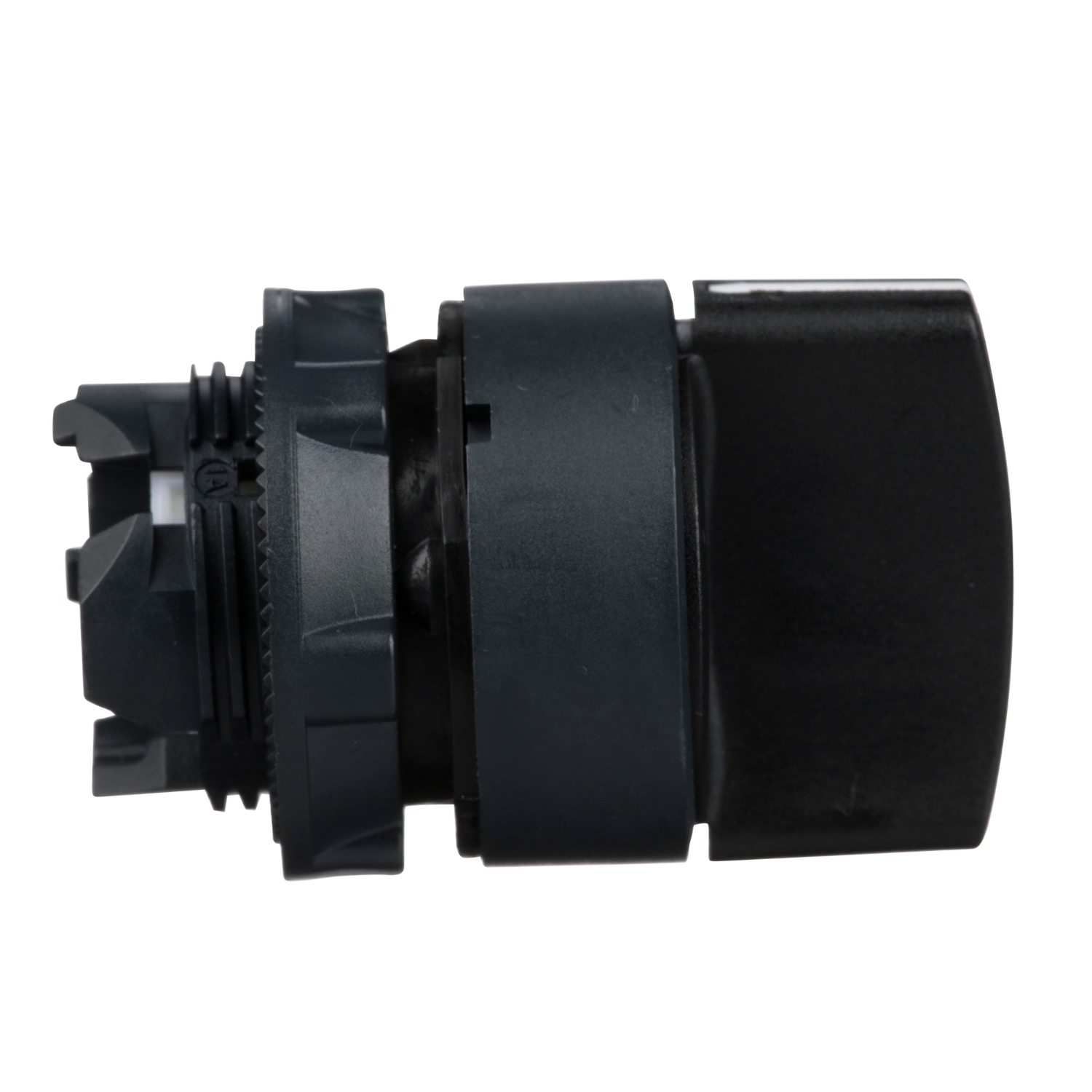

Cap de Selector, 2 Pozitii, Ø 22, Negru
Documente
Specificatii
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Black |
| Colour control element | Black |
| Colour indicator light cap | - |
| Model/type | |
| Type of control element | Short rotary handle |
| Construction type lens | Round |
| With front ring | Yes |
| Setting/control | |
| Number of switch positions | 2 |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP67/IP69K |
| Degree of protection (NEMA) | 13 |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 119,88 cm3 |
| weight | 24 g |
| length | 6 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110904963 |
| Package 2 | |
| volume | 450,5 cm3 |
| weight | 121 g |
| length | 26,5 cm |
| width | 3,4 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 53389110904968 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 5,304 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 43389110904961 |
| Package 4 | |
| weight | 52,604 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1600 |
| qmin | 1600 |
| um | PF |
