Descriere

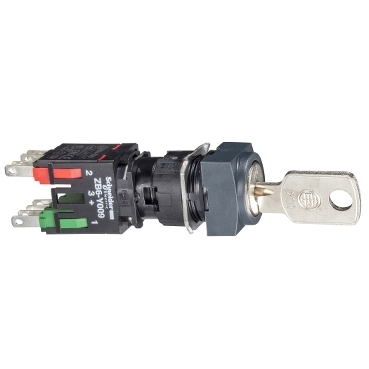

Selector cu Cheie Patrat, Ø 16, 3 Poz., Rama din Plastic, 1 No + 1 Nc
Documente
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | No |
| Type of control element | Key |
| With front ring | Yes |
| Options | |
| Spring-return | No |
| Switching function latching | Yes |
| Colour | |
| Colour front ring | Black |
| Colour button | Black |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Electrical | |
| Supply voltage | - |
| Setting/control | |
| Number of switch positions | 3 |
| Measurements | |
| Width opening | - |
| Hole diameter | 16.2 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Application | |
| Suitable for lighting | No |
| Protection | |
| Degree of protection (IP) | IP65/IP67 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 26,775 cm3 |
| weight | 29 g |
| length | 7,5 cm |
| width | 2,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110764680 |
