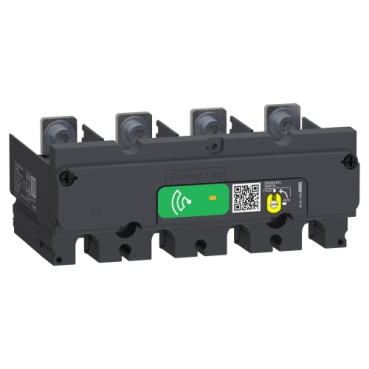

Senzor de energie POWERTAG NSX-250A 3p+N

Cod produs: LV434021

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606485467023

Senzor de energie PowerTag Monoconnect 250A 3P+N

Electrical
Max. current (Imax)	300 A
Nominal voltage (Un) L-L	0 V
Nominal current (In)	250 A
Nominal voltage (Un) N-L	230 V
Other
Frequency	50 Hz
Pulse output	None
Pulse rate	-
Accuracy class	B
Model/type
Model	Direct measurement
Pulse type	-
Energy type	Effective power and reactive power
Number of positions total (counter)	-
Tariff type	One-tariff
Type of indication	None
Pole type	Four conductor
Measurement type load profile	No
With lock code	No
Type of meter	Electronic
Options
Calibrated	Yes
Escapement mechanism	No
EEC40 signature	No
Approval/certification
Approval	Domestic
Measurements
Width in number of modular spacings	8
Height	57 mm
Width	140 mm
Depth	86 mm
Setting/control
Tariff control	-
Communication
Type of interface	Other
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Mounting/installation
Mounting method	Plug-in technique
Application
Suitable for	Purchase
Package 1
volume	2473,9 cm3
weight	546 g
length	17,3 cm
width	11 cm
qmax	1
qmin	1
um	C62
gtin	3606485467023
Package 2
volume	18000 cm3
weight	2,63 kg
length	40 cm
width	30 cm
qmax	4
qmin	4
um	CT
gtin	13606485467020
Package 3
volume	343200 cm3
weight	54,08 kg
length	80 cm
width	60 cm
qmax	64
qmin	64
um	PF

Afiseaza mai multe specificatii
