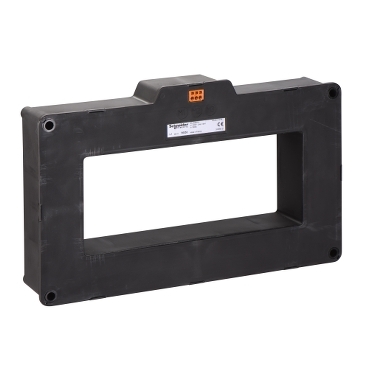

Senzor Dreptunghiular - 3200 A - 470 X 160 Mm - Pt. Vigilohm, Vigirex
Documente
Specificatii
| Model/type | |
| Model | Summation current transformer |
| With contact protection | Yes |
| With copper rail | No |
| Options | |
| Calibrated | Yes |
| Connection | |
| Number of primary inputs | 4 |
| Secondary connection | Screw connection |
| Electrical | |
| Rated primary current | 3200 A |
| Overcurrent limiting factor | - |
| Rated secondary current | 3.2 A |
| Rated secondary apparent power | - |
| Measurements | |
| Opening diameter | - |
| Width opening | 470 mm |
| Height opening | 160 mm |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 39780 cm3 |
| weight | 18,208 kg |
| length | 65 cm |
| width | 34 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430560548 |
| Package 2 | |
| volume | 720000 cm3 |
| weight | 175,872 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 9 |
| qmin | 9 |
| um | PF |
