Descriere

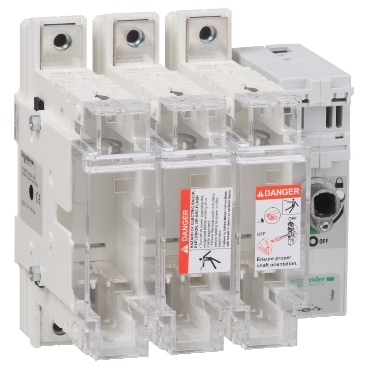

Corp Intrerupatoare Sigurante Tesys Gs2L - 3 Poli - 160 A - Din 0
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Cable entry | Other |
| Equipped with connectors | No |
| Model/type | |
| Version as emergency stop installation | No |
| Type of control element | Without actuator |
| Version as safety switch | No |
| Motor drive integrated | No |
| With error protection | No |
| Version as main switch | Yes |
| Mounting/installation | |
| Suitable for busbar mounting | Yes |
| Suitable for front mounting | No |
| Suitable for floor mounting | No |
| Protection | |
| Degree of protection (IP), front side | IP20 |
| Electrical | |
| Conditioned rated short-circuit current Iq | 100 kA |
| Rated permanent current Iu | 160 A |
| Max. rated operation voltage Ue AC | 750 V |
| Number of poles | 3 |
| Rated operation power at AC-23, 400 V | 80 kW |
| Rated short-time withstand current lcw | 100 kA |
| Application | |
| Suitable for fuses | NH0 |
| Setting/control | |
| Position control element | Other |
| Options | |
| Motor drive optional | No |
| Package 1 | |
| volume | 10374 cm3 |
| weight | 2,318 kg |
| length | 26 cm |
| width | 21 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119410724 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 68,632 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 73389119410723 |
