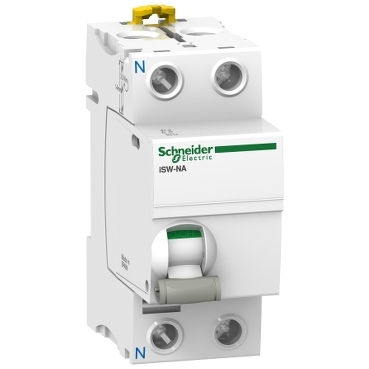

Separat. sarcina ISW-NA 1P-N 40A 250Vca

Cod produs: A9S70640

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480098901

Separator de Sarcina Isw-Na, 1P + N, 40 A

Electrical
Rated current	40 A
Rated voltage	240 V
Rated switching capacity	5 kA
Voltage type	AC
Short-circuit breaking capacity (Icw)	0.8 kA
Number of poles	2
Min. rated voltage	230 V
Max. lamp power	-
Measurements
Built-in depth	74.5 mm
Width in number of modular spacings	2
Model/type
With signal lamp	No
Switching function	Off switch
Lamp type	-
Other
Imprint/indication	None
Lamp socket	-
Colour
Colour calotte	White
Connection
Number of contacts as normally open contact	2
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Approval/certification
Forced segregation according to DIN VDE 0113	Yes
Protection
Degree of protection (IP)	IP20
Package 1
volume	320 cm3
weight	187 g
length	10 cm
width	8 cm
qmax	1
qmin	1
um	C62
gtin	3606480098901
Package 2
volume	36000 cm3
weight	10,468 kg
length	40 cm
width	30 cm
qmax	54
qmin	54
um	CT
gtin	43606480098909
