Descriere

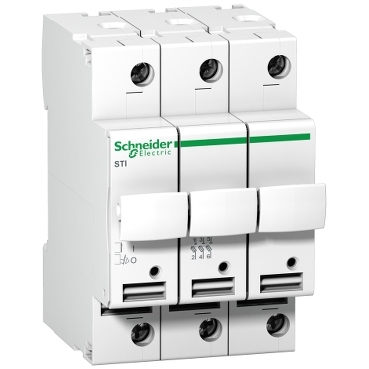

Acti9 - Separator cu fuzibil STI - 3P - 10 A - Pentru siguranta 8.5 x 31.5 mm
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Number of poles | 3 |
| Nominal voltage | 400 V |
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 3 |
| For fuse size | 8.5x31.5 mm |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Concurrently switching neutral conductor | No |
| Lockable | Yes |
| Mounting/installation | |
| Mounting method | DIN rail |
| Model/type | |
| With optical defect indication | Yes |
| Package 1 | |
| volume | 337,875 cm3 |
| weight | 167 g |
| length | 8,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480619564 |
| Package 2 | |
| volume | 1721,25 cm3 |
| weight | 729 g |
| length | 22,5 cm |
| width | 9 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13606480619561 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 9,166 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 48 |
| qmin | 48 |
| um | CT |
| gtin | 43606480619562 |
| Package 4 | |
| weight | 85,325 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 384 |
| qmin | 384 |
| um | PF |
