Descriere

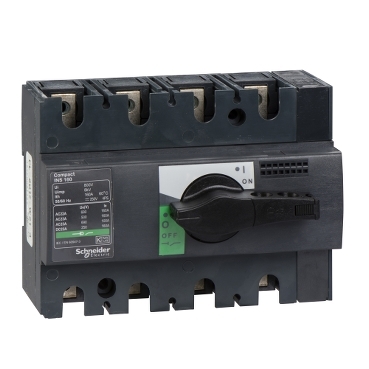

Acest model Compact INS160 este un intrerupator de sarcina neautomat cu patru poli, cu maner rotativ negru. Este adecvat pentru izolare cu indicarea contactelor pozitive, conform definitiilor din standardele IEC 60947-1 si IEC 60947-3. Curentul de functionare este de 160 A la 415 V c.a. in categoriile AC22A si AC23A. Tensiunea nominala este de 690 V c.a. 50/60 Hz sau 250 V c.c. Manerul rotativ negru este proiectat pentru a asigura o operare usoara si performanta sporita in intreruperea curentilor. Compact INS160 este un dispozitiv frontal cu nivel de izolare clasa II, conform standardului IEC 60664.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 2 |
| Number of auxiliary contacts as normally open contact | 0 |
| Model/type | |
| Version as emergency stop installation | No |
| Type of control element | Long rotary handle |
| Version as main switch | Yes |
| Version as maintenance-/service switch | Yes |
| Version as safety switch | No |
| Number of switches | 1 |
| Motor drive integrated | No |
| Electrical | |
| Rated operation power at AC-3, 400 V | - |
| Rated permanent current Iu | 160 A |
| Conditioned rated short-circuit current Iq | 65 kA |
| Max. rated operation voltage Ue AC | 690 V |
| Number of poles | 4 |
| Rated short-time withstand current lcw | 5.5 kA |
| Rated operating voltage | 690 V |
| Rated operation power at AC-23, 400 V | 75 kW |
| Rated permanent current at AC-21, 400 V | - |
| Switching power at 400 V | - |
| Rated permanent current at AC-23, 400 V | 160 A |
| Options | |
| Version as reversing switch | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Motor drive optional | No |
| Mounting/installation | |
| Suitable for front mounting centre | Yes |
| Suitable for front mounting 4-hole | Yes |
| Suitable for intermediate mounting | No |
| Suitable for floor mounting | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Protection | |
| Degree of protection (IP), front side | IP40 |
| Degree of protection (NEMA) | - |
| Colour | |
| Colour control element | Black |
| Application | |
| Suitable for distribution board installation | Yes |
| Package 1 | |
| volume | 2211 cm3 |
| weight | 1,123 kg |
| length | 15 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430289135 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 11,594 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 13303430289132 |
| Package 3 | |
| volume | 422400 cm3 |
| weight | 106 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
| gtin | 73303430289134 |
