Descriere

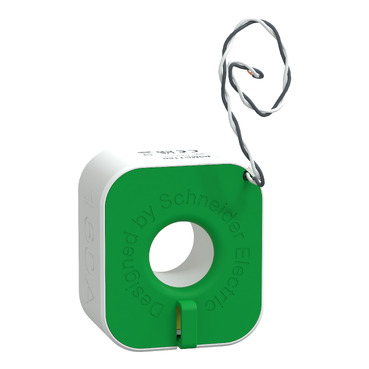

Set de 3 transformatoare de curent Resi9, 160A, trifazat
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Options | |
| Calibrated | Yes |
| Model/type | |
| Model | Attachable current transformer |
| With contact protection | No |
| With copper rail | No |
| Connection | |
| Number of primary inputs | 1 |
| Secondary connection | Cable |
| Electrical | |
| Rated primary current | 160 A |
| Overcurrent limiting factor | - |
| Rated secondary current | 0.08 A |
| Rated secondary apparent power | - |
| Measurements | |
| Opening diameter | 19 mm |
| Width opening | 48 mm |
| Height opening | 29 mm |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 445,5 cm3 |
| weight | 335 g |
| length | 13,5 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606487091288 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 8,44 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 13606487091285 |
