Descriere

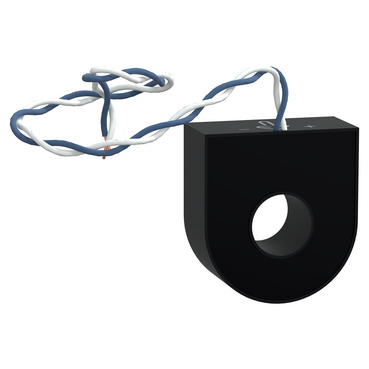

Set de 6 transformatoare de curent Resi9, 80A, monofazat
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Options | |
| Calibrated | Yes |
| Model/type | |
| Model | Attachable current transformer |
| With contact protection | No |
| With copper rail | No |
| Connection | |
| Number of primary inputs | 1 |
| Secondary connection | Cable |
| Electrical | |
| Rated primary current | 80 A |
| Overcurrent limiting factor | - |
| Rated secondary current | 0.08 A |
| Rated secondary apparent power | - |
| Measurements | |
| Opening diameter | 10 mm |
| Width opening | 27 mm |
| Height opening | 13 mm |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 342,125 cm3 |
| weight | 178 g |
| length | 11,5 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606487091318 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,844 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 13606487091315 |
