Descriere

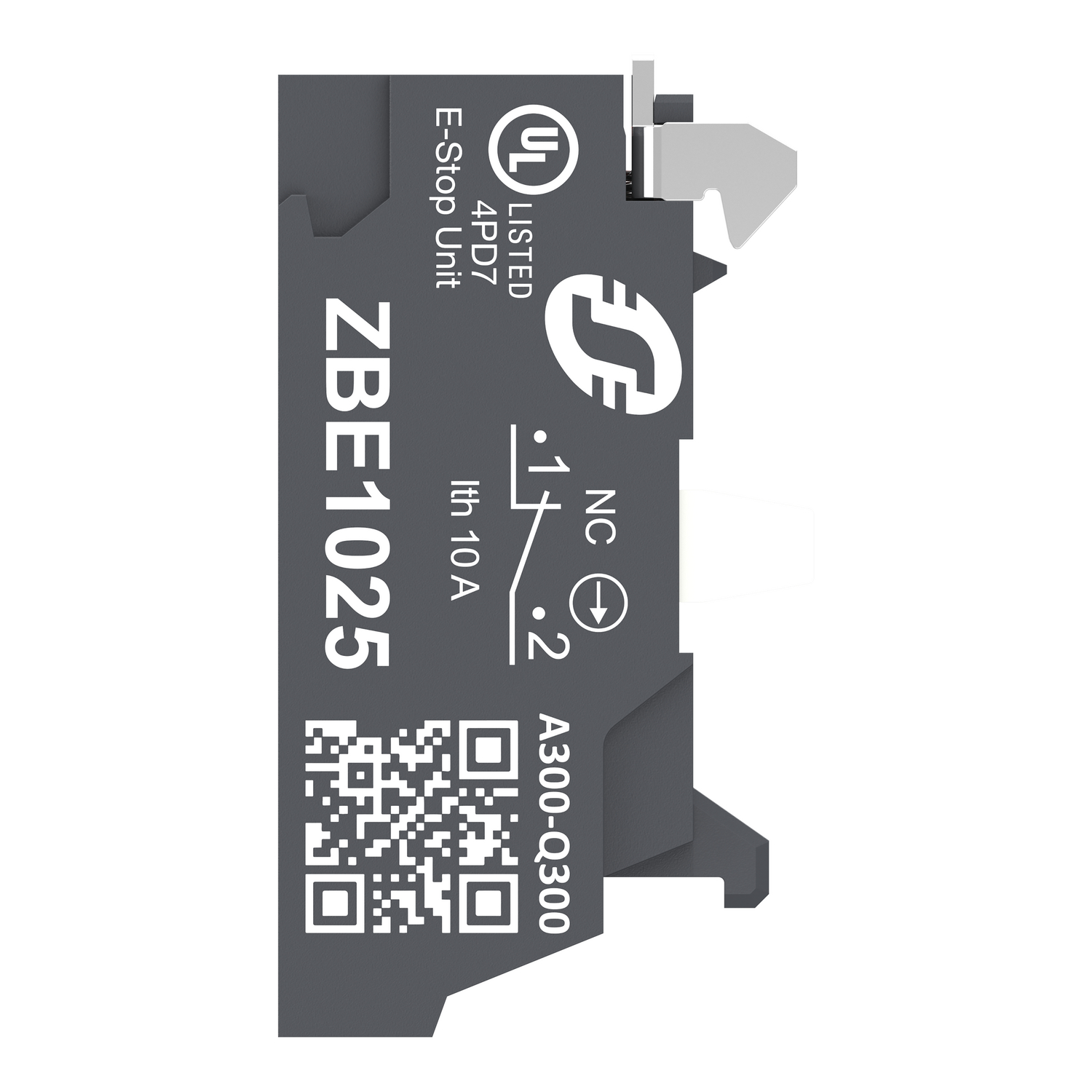

Contact Bloc 1Nc cu Arc Terminal
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Other |
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 A |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| volume | 6,65 cm3 |
| weight | 5 g |
| length | 3,5 cm |
| width | 1,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119037433 |
| Package 2 | |
| volume | 81,09 cm3 |
| weight | 32 g |
| length | 5,3 cm |
| width | 4,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 23389119037437 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 3,406 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 500 |
| qmin | 500 |
| um | CT |
| gtin | 33389119037434 |
