Descriere

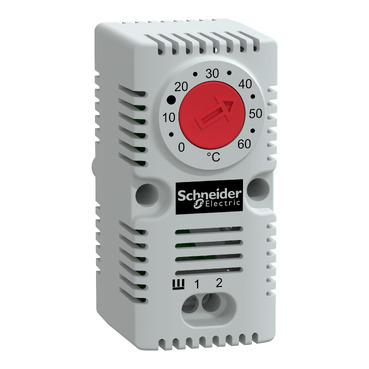

ClimaSys CC termostat simplu. 250 V c.a. 68 x 33 x 44 mm. Senzor bimetal cu tip de contact NC. 1 functie de incalzire. Conexiune electrica prin 4 borne de 2,5 mm². Mod de montare prin sina DIN de 35 mm, sine transversale, pe placa de montaj verticala PanelSet. Fabricat din PC. Gri deschis. Autostingere UL94 (material V0). Protectie IP20.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Rated voltage | 250 V |
| Rated current In | 10 A |
| Model/type | |
| With digital indication | No |
| Model | Thermostat |
| Type of switch function | Breaker contact (NC) |
| Setting/control | |
| Adjustable setting value for relative air humidity | - |
| Temperature setting range | 0 °C |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| volume | 216 cm3 |
| weight | 66 g |
| length | 6 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480152498 |
| Package 2 | |
| volume | 1920000 cm3 |
| weight | 249,6 kg |
| length | 120 cm |
| width | 100 cm |
| qmax | 3600 |
| qmin | 3600 |
| um | PF |
