Descriere

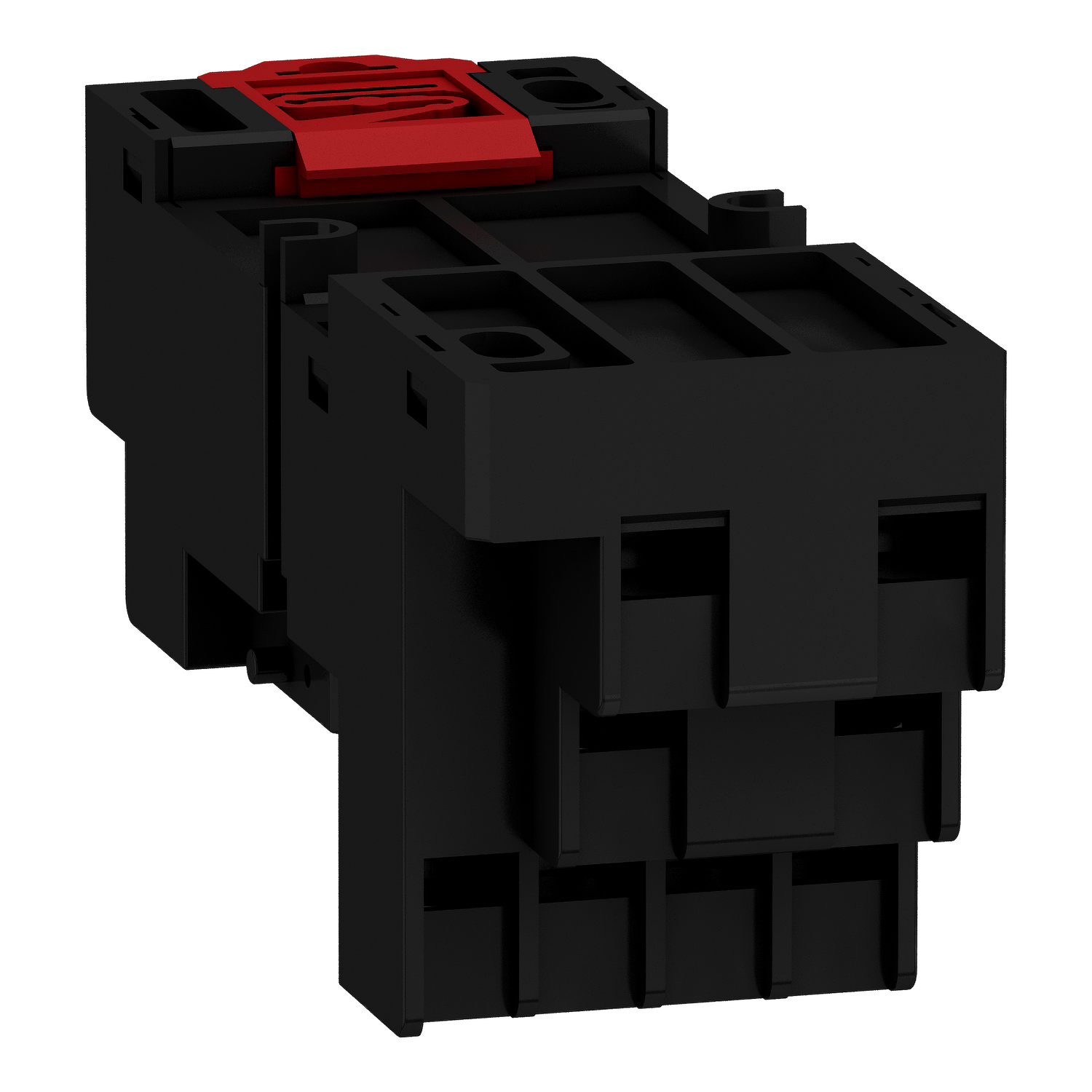

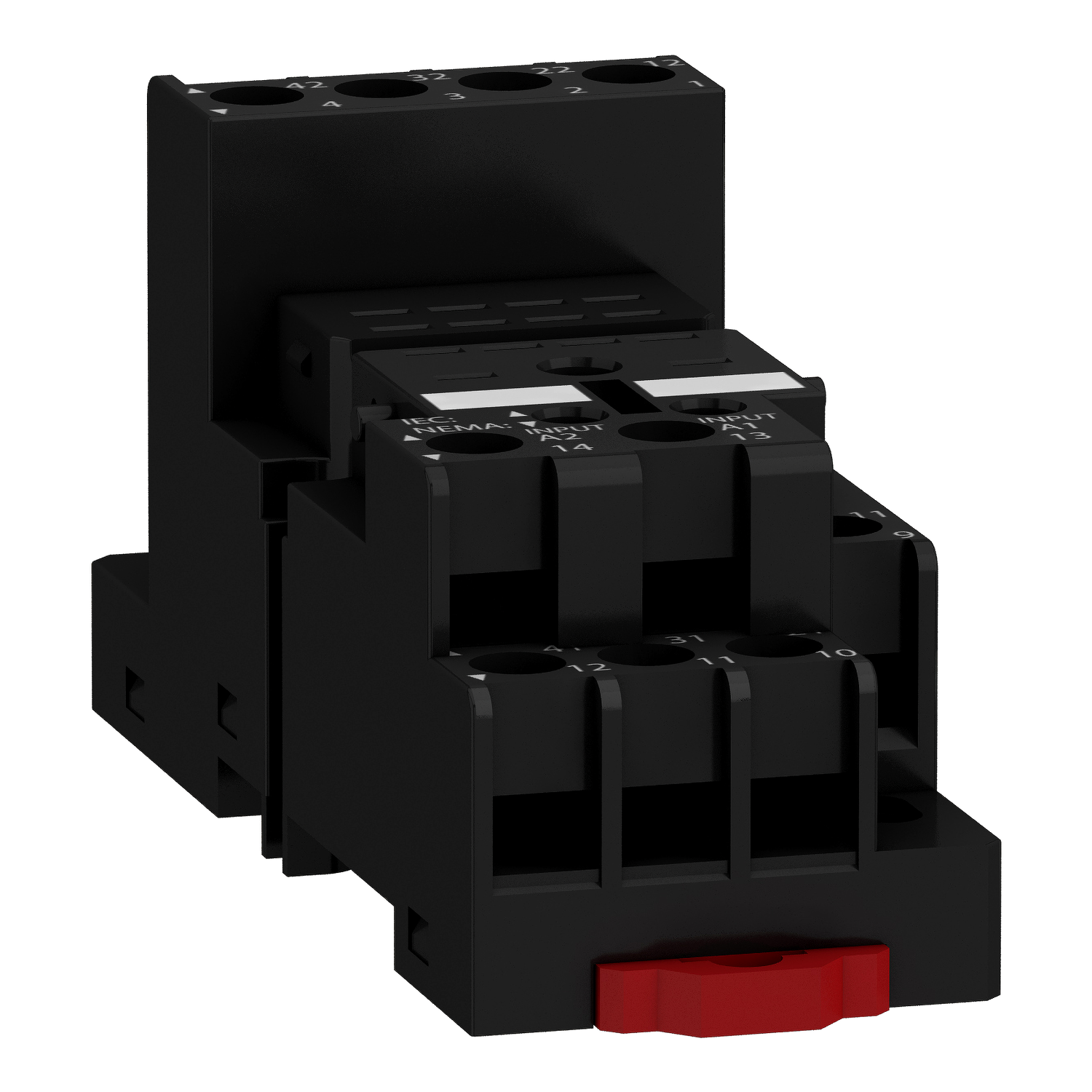

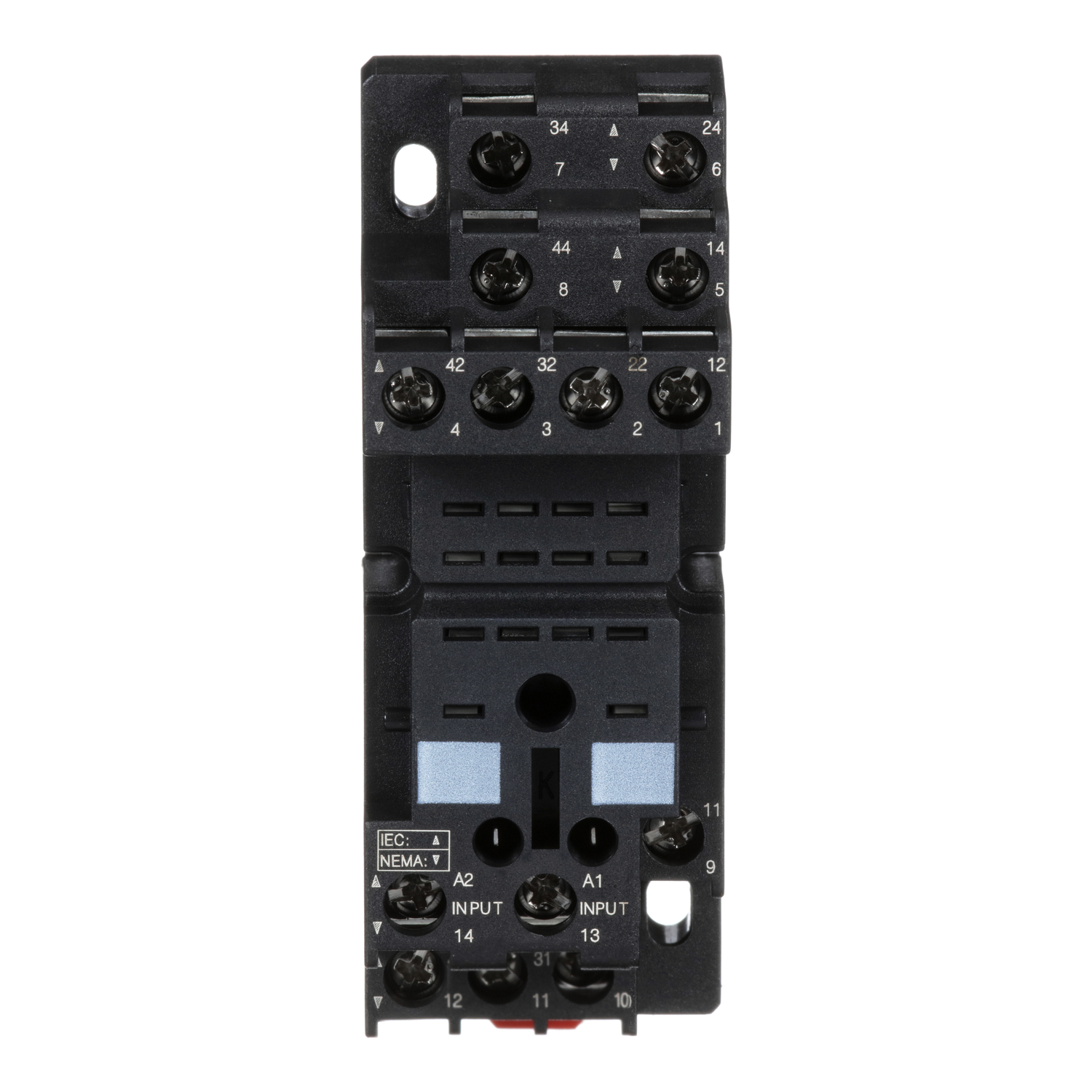

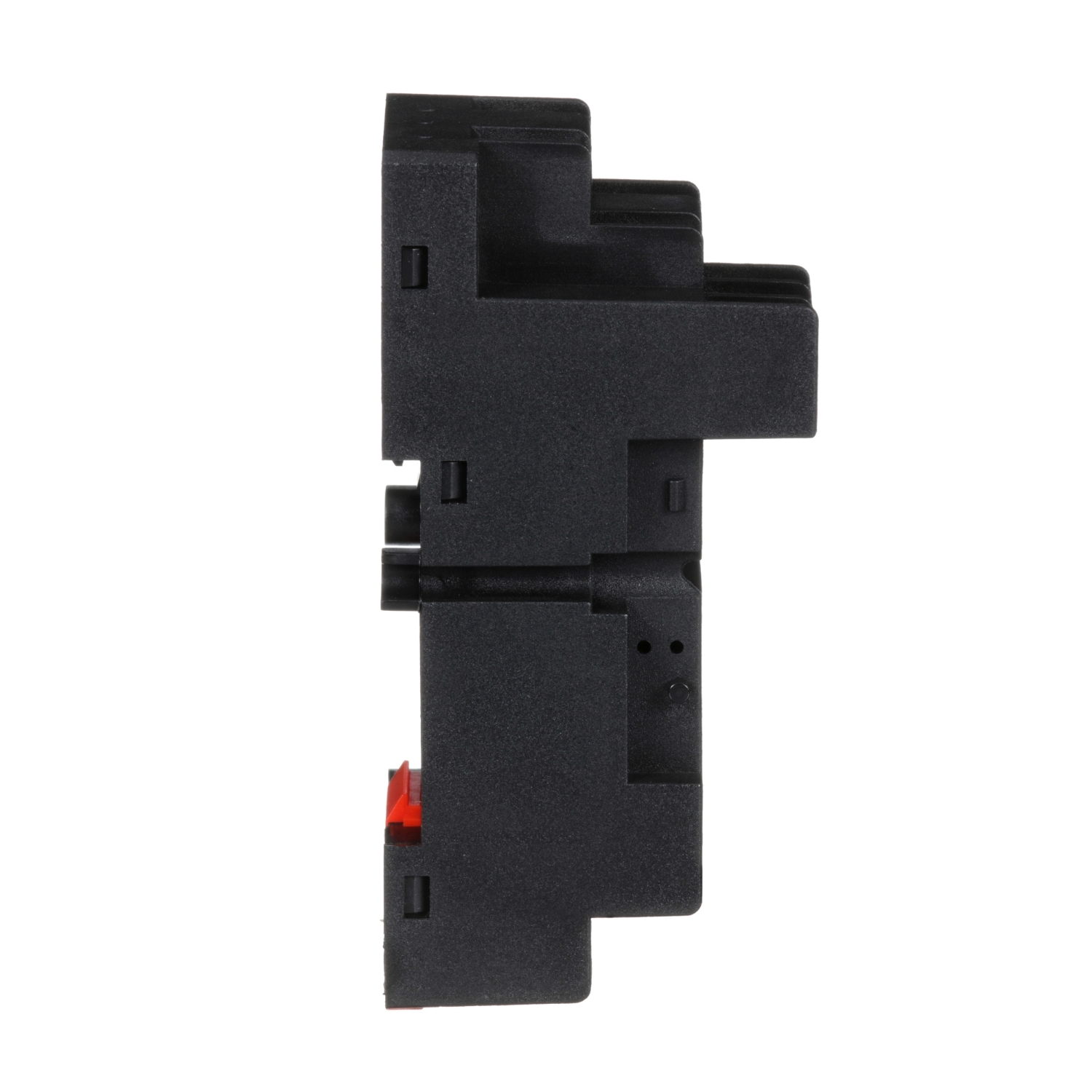

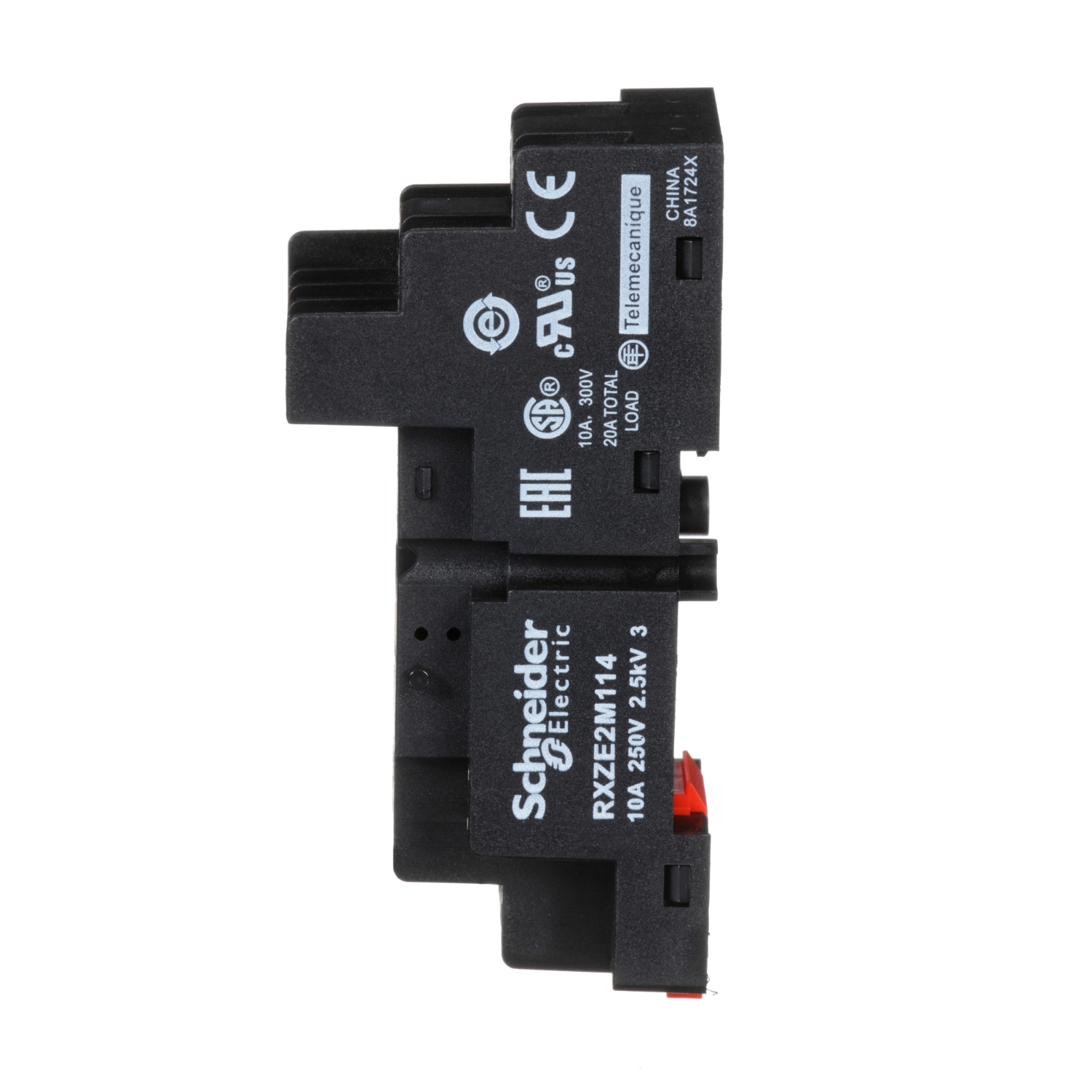

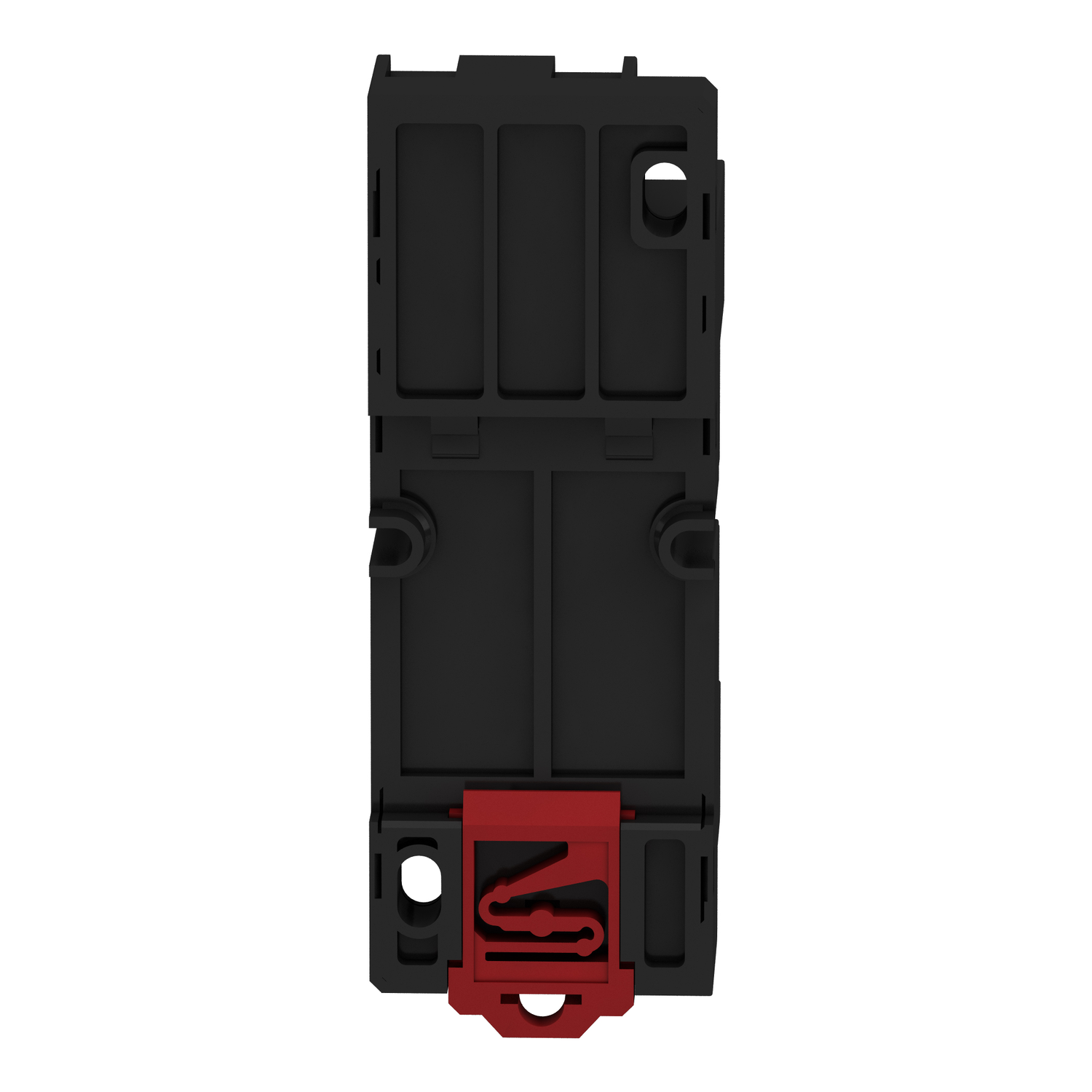

Soclu Rxz, Contact Comb., 10A, 250V, Clema surub -pentru Releu Rxm2, , Rxm4
Documente
Fisa tehnica
Altele
Specificatii
| Measurements | |
| Width | 30 mm |
| Height | 82.5 mm |
| Depth | 76 mm |
| Model/type | |
| Number of pins | 14 |
| With detachable clamps | No |
| Options | |
| Function extension possible | No |
| Connection | |
| Type of electric connection | Screw connection |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Package 1 | |
| volume | 56,42 cm3 |
| weight | 56 g |
| length | 7 cm |
| width | 3,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119404242 |
| Package 2 | |
| volume | 1048,42 cm3 |
| weight | 600 g |
| length | 15,5 cm |
| width | 8,9 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389119404249 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 12,449 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 43389119404240 |
| Package 4 | |
| weight | 104,764 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1600 |
| qmin | 1600 |
| um | PF |
