Descriere

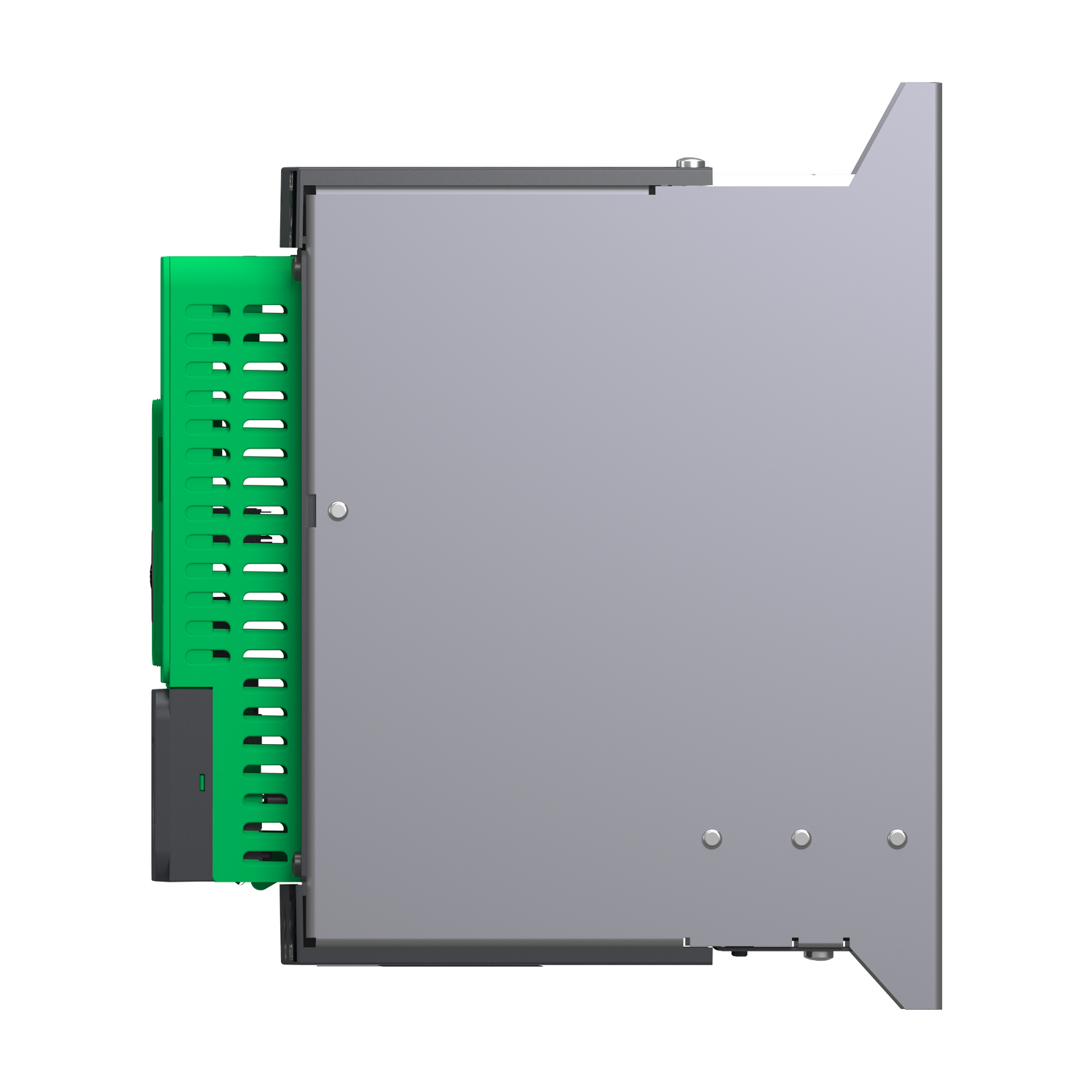

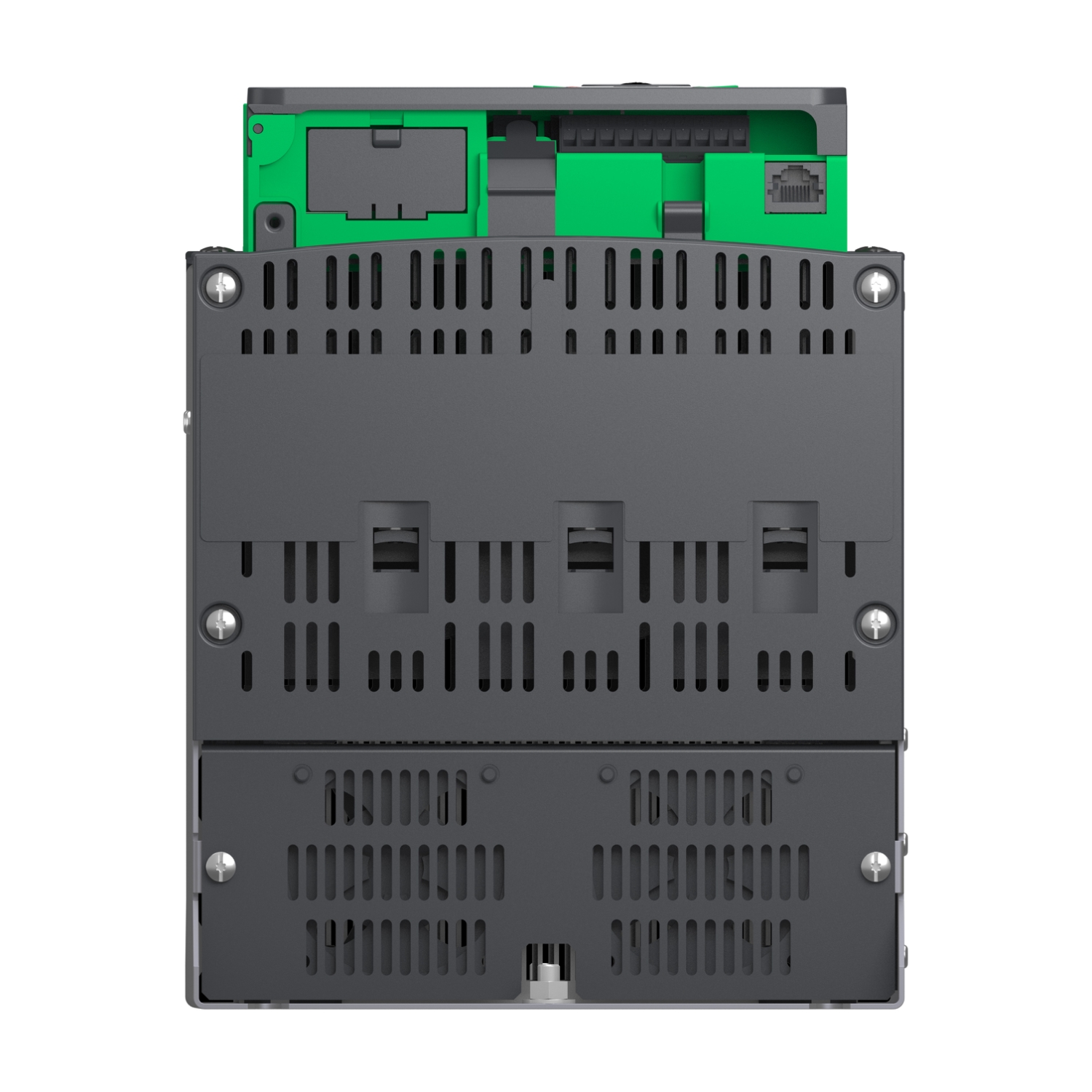

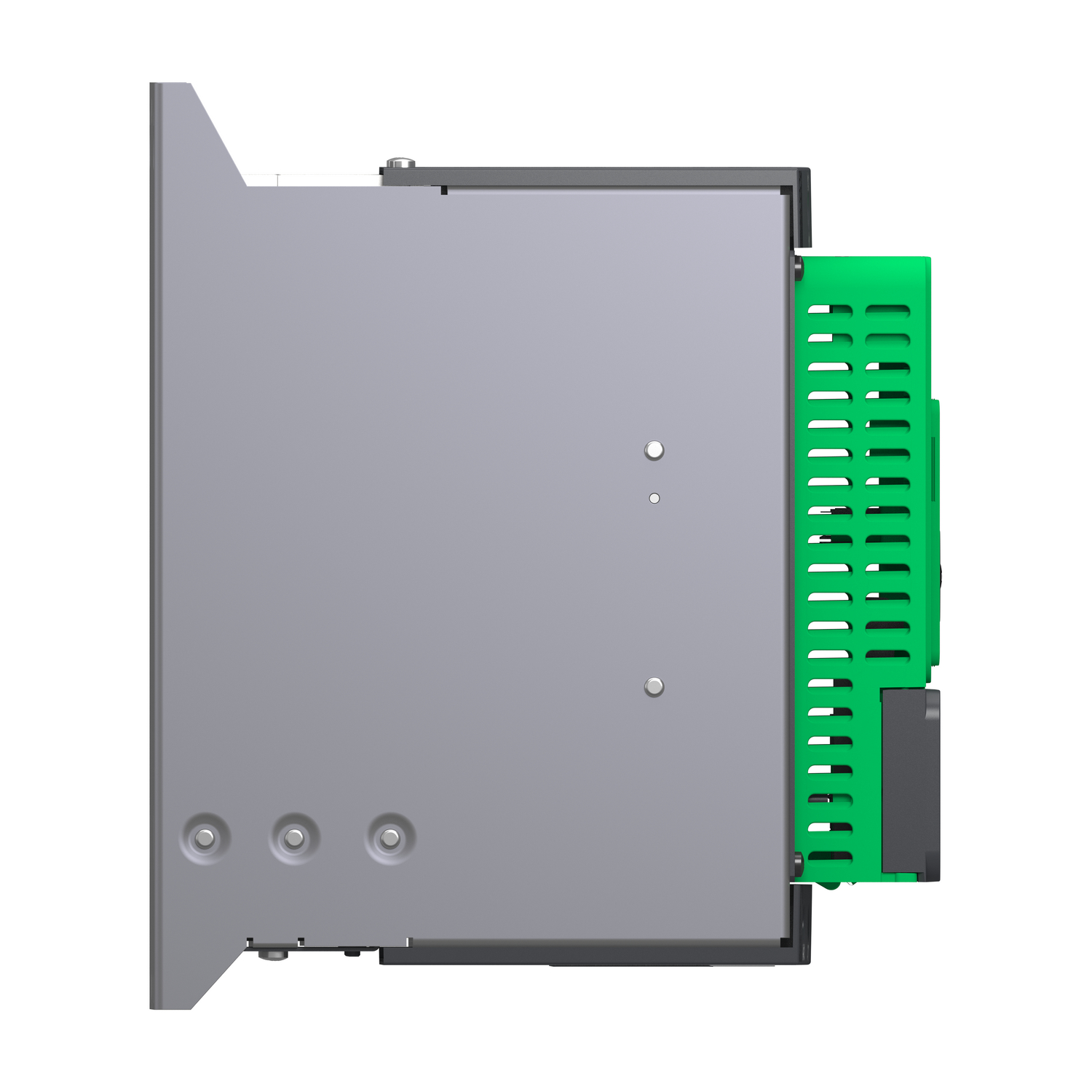

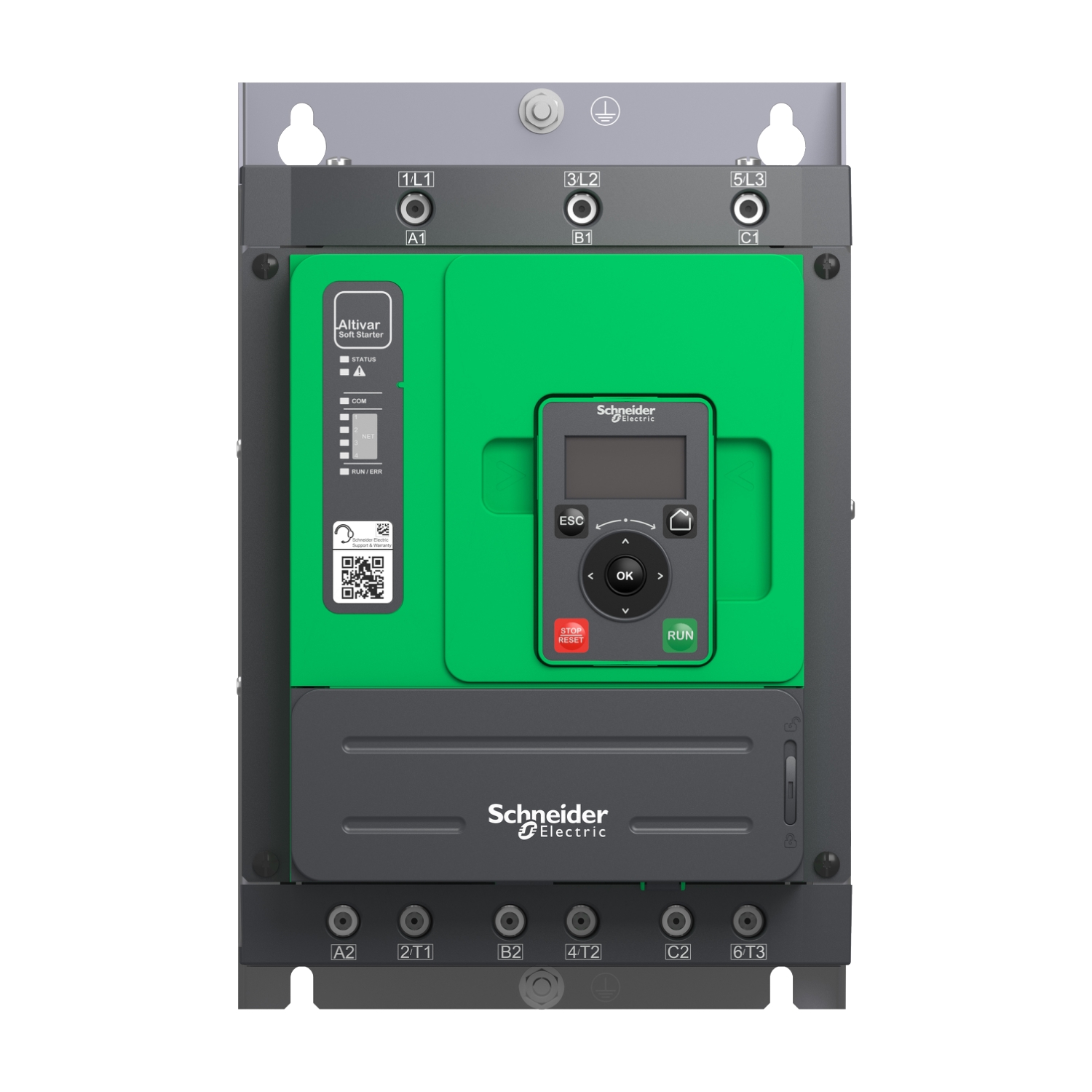

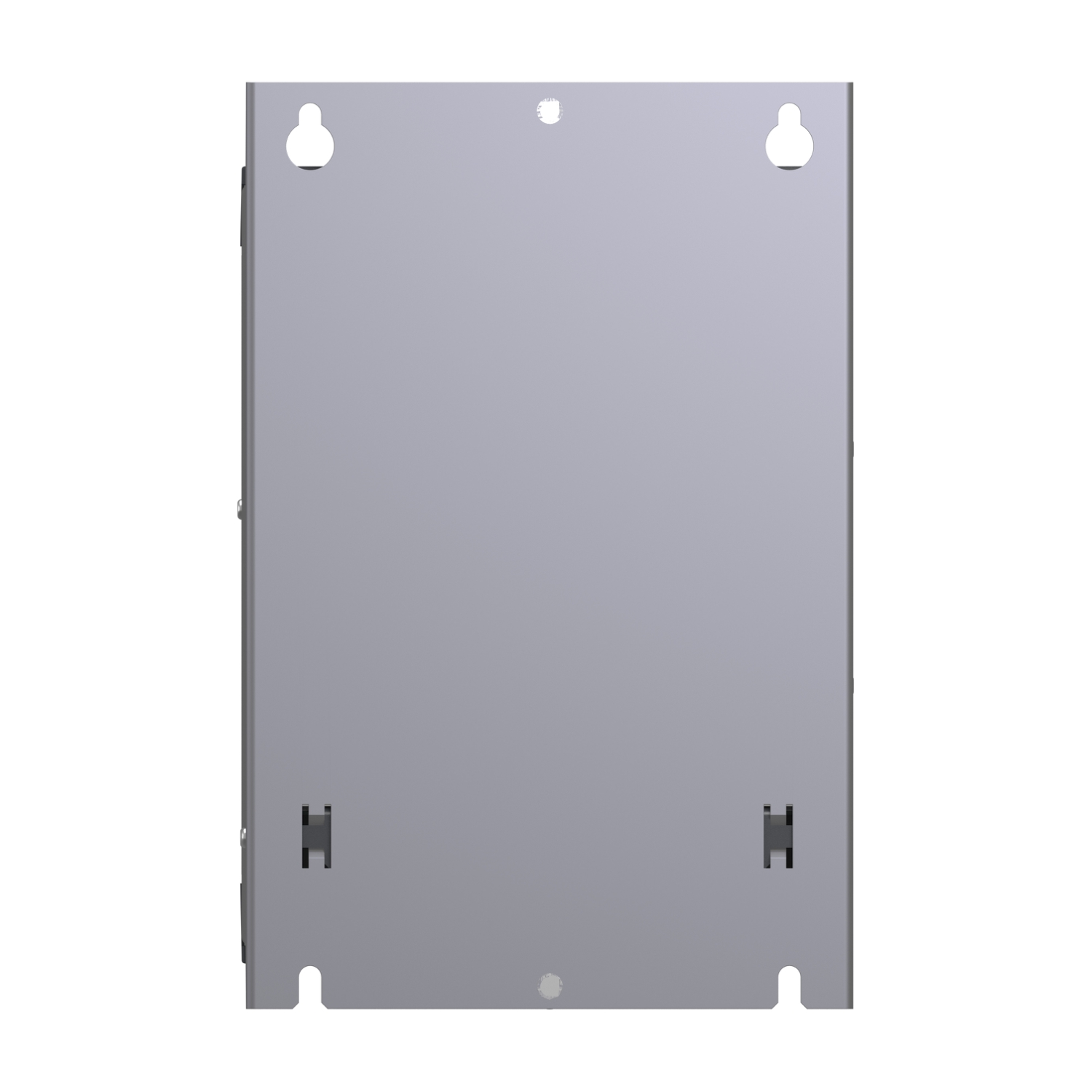

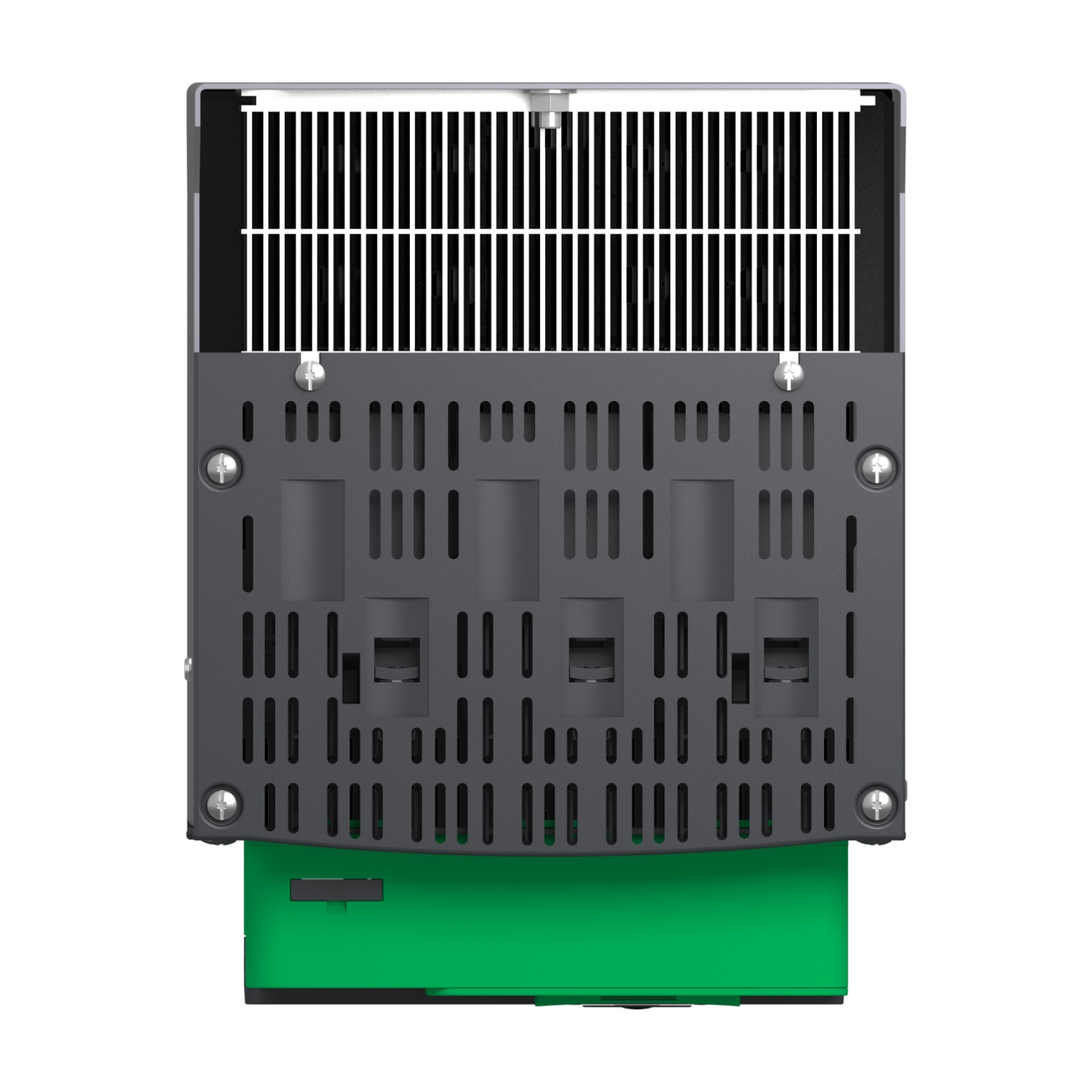

Demaror progresiv Altivar ATS480, 110 A, de la 208 pana la 690V AC, tensiune de comanda de la 110 pana la 230V AC
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With display | No |
| Function | Single direction |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 208 V |
| Rated control supply voltage AC 60 Hz | 208 V |
| Rated operating voltage Ue | 208 V |
| Rated operation current Ie at 40 °C Tu | 110 A |
| Rated power three-phase motor, inline, at 230 V | 30 kW |
| Rated power three-phase motor, inline, at 400 V | 55 kW |
| Rated control supply voltage DC | - |
| Voltage type for actuating | AC |
| Rated power three-phase motor, inside delta, at 230 V | 55 kW |
| Rated power three-phase motor, inside delta, at 400 V | 90 kW |
| Other | |
| Release class | Other |
| Options | |
| Internal bypass | No |
| Setting/control | |
| Torque control | Yes |
| Protection | |
| Integrated motor overload protection | Yes |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | - |
| Operating conditions | |
| Rated surrounding temperature without derating | 40 °C |
| Package 1 | |
| volume | 44733 cm3 |
| weight | 9,877 kg |
| length | 39 cm |
| width | 31 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481089076 |
| Package 2 | |
| volume | 412800 cm3 |
| weight | 87,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 8 |
| qmin | 8 |
| um | PF |
| gtin | 73606481089075 |
