Descriere

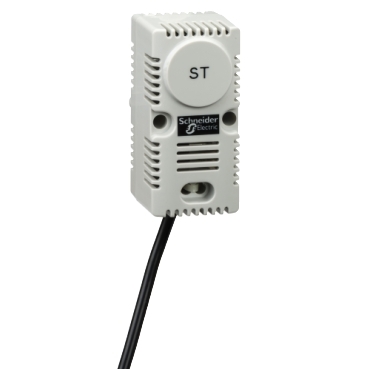

Climasys CC, senzor temperatura, Interv temperatura -30…+80°C, cablu=3m
Documente
Fisa tehnica
Specificatii
| Options | |
| Error registration possible | No |
| Trend representation | - |
| Average temperature measuring | No |
| Fixed cable to sensor | Yes |
| Passive temperature measurement | - |
| Measurement of relative air humidity | No |
| Wireless | No |
| Measurement of VOC | No |
| Active temperature measurement | Yes |
| Sensor element outside housing | - |
| Measurement of CO2 | No |
| Measurement of dewpoint | No |
| Sensor element inside housing | No |
| IFTTT support available | No |
| Wi-Fi-compatible | No |
| Enthalpy measurement | No |
| Particulate matter measurement (PM) | No |
| Measurement of absolute air humidity | No |
| LoRa technology | No |
| Connection | |
| Number of output ranges 0 V ... 5 V | - |
| Number of output ranges 2 V ... 10 V | - |
| Type of electric connection | Screw connection |
| Number of output ranges 4 mA ... 20 mA | - |
| Number of output ranges 0 mA ... 20 mA | - |
| Number of output ranges 0 V ... 10 V | - |
| Electrical | |
| Rated supply voltage AC | - |
| Rated supply voltage DC | - |
| Type of power supply | - |
| Model/type | |
| Type of display | - |
| Number of measuring ranges | - |
| With reverse polarity protection | - |
| Standby push button | No |
| Number of measuring points | 1 |
| With display | No |
| With housing | Yes |
| Sensor type | NTC, 10K |
| Technology | Other |
| Number of output signals | 1 |
| Communication | |
| Supporting protocol for MP (multi point) | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| NFC (Near Field Communication) | No |
| Supporting protocol for KNX | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | No |
| Bluetooth | No |
| Mounting/installation | |
| Suitable for duct mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for tube mounting | No |
| Suitable for wall mounting | Yes |
| With mounting material | Yes |
| Material | |
| Material element | Other |
| Measurements | |
| Insert length | - |
| Diameter sensor element | 7 mm |
| Housing height | 60 mm |
| Housing depth | 43 mm |
| Housing width | 33 mm |
| Cable length | 3 m |
| Sensor length | 25.8 mm |
| Operating conditions | |
| Ambient temperature | -40 °C |
| Application | |
| Scope of application | Other |
| Suitable for liquids | No |
| Suitable for gases | No |
| Suitable for air | Yes |
| Scope of application, flow speed medium | - |
| Setting/control | |
| Temperature measuring range | -40 °C |
| Offset setting possible | No |
| Potentiometer with adjustment knob | No |
| Other | |
| Measuring range absolute air humidity | - |
| Enthalpy measuring range | - |
| Tolerance | 2 % |
| Measuring range relative air humidity | - |
| CO2 measuring range | - |
| VOC measuring range | - |
| Max. ambient humidity (non-condensing) | - |
| Cover attachment | Screwed |
| Dewpoint measuring range | - |
| Particulate matter measuring range (PM) | - |
| Colour | |
| Housing colour | Grey |
| Protection | |
| Degree of protection (IP) | IP67 |
| Explosion-proof | No |
| UV resistant | No |
| Package 1 | |
| volume | 720 cm3 |
| weight | 132 g |
| length | 20 cm |
| width | 6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480632130 |
| Package 2 | |
| volume | 60543 cm3 |
| weight | 11,676 kg |
| length | 63 cm |
| width | 31 cm |
| qmax | 75 |
| qmin | 75 |
| um | CT |
| gtin | 3606480632136 |
