Descriere

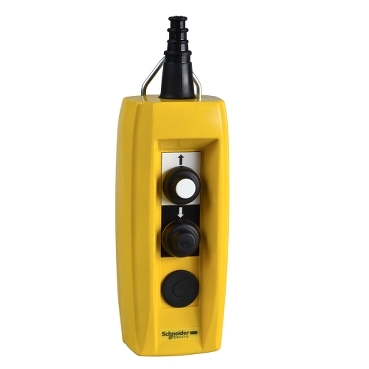

Post De Comanda Suspendat Xac-B - 2 Butoane
Documente
Specificatii
| Measurements | |
| Width | 85 mm |
| Depth | 74.5 mm |
| Height | 265 mm |
| Model/type | |
| Type of executable motions | Other |
| Number of speeds | 1 |
| Number of command positions | 2 |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Application | |
| Suitable for emergency stop | No |
| Colour | |
| Colour housing cover | Yellow |
| Electrical | |
| Rated operation current Ie at AC-15, 600 V | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 3199,875 cm3 |
| weight | 764 g |
| length | 26,5 cm |
| width | 11,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110636154 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,15 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43389110636152 |
