Descriere

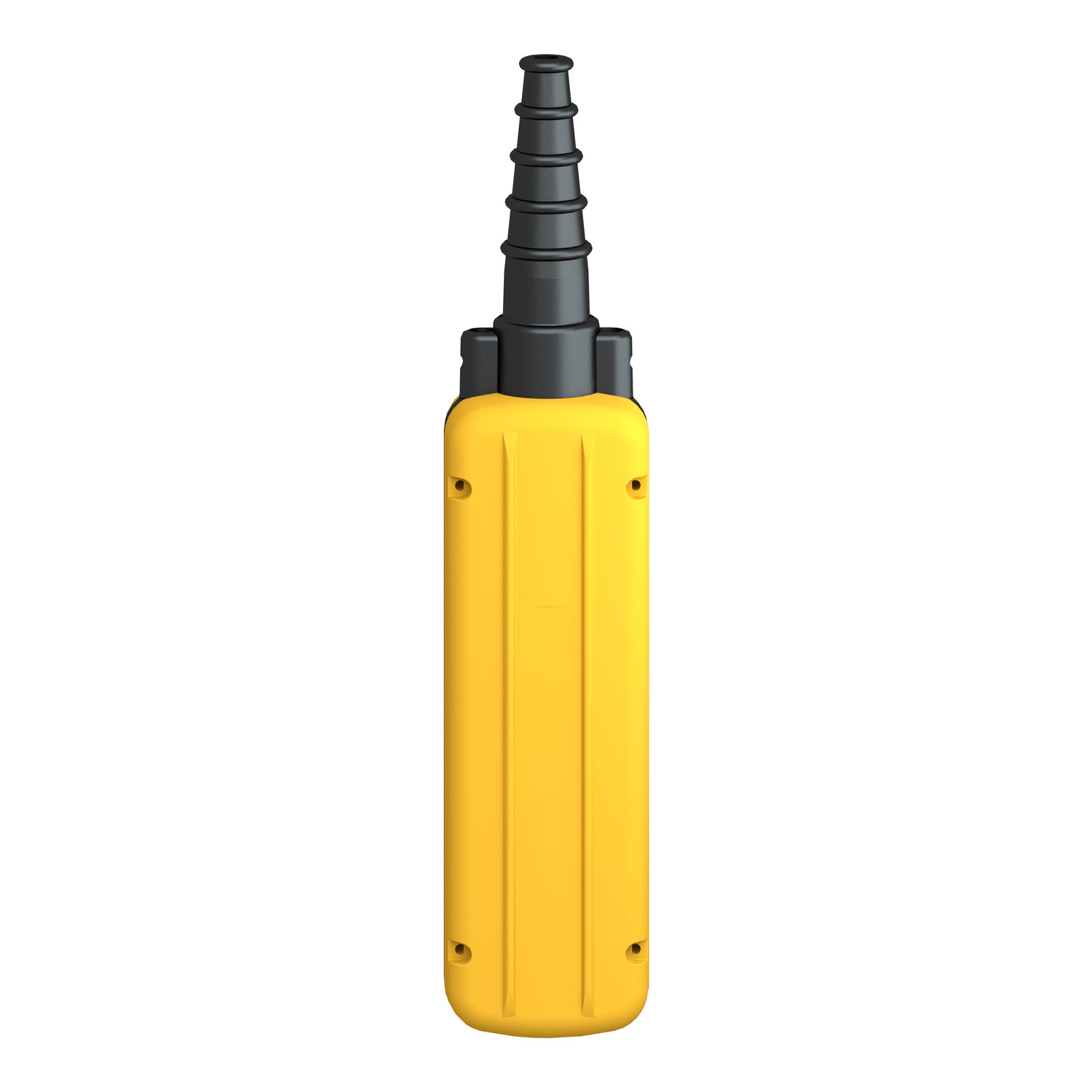

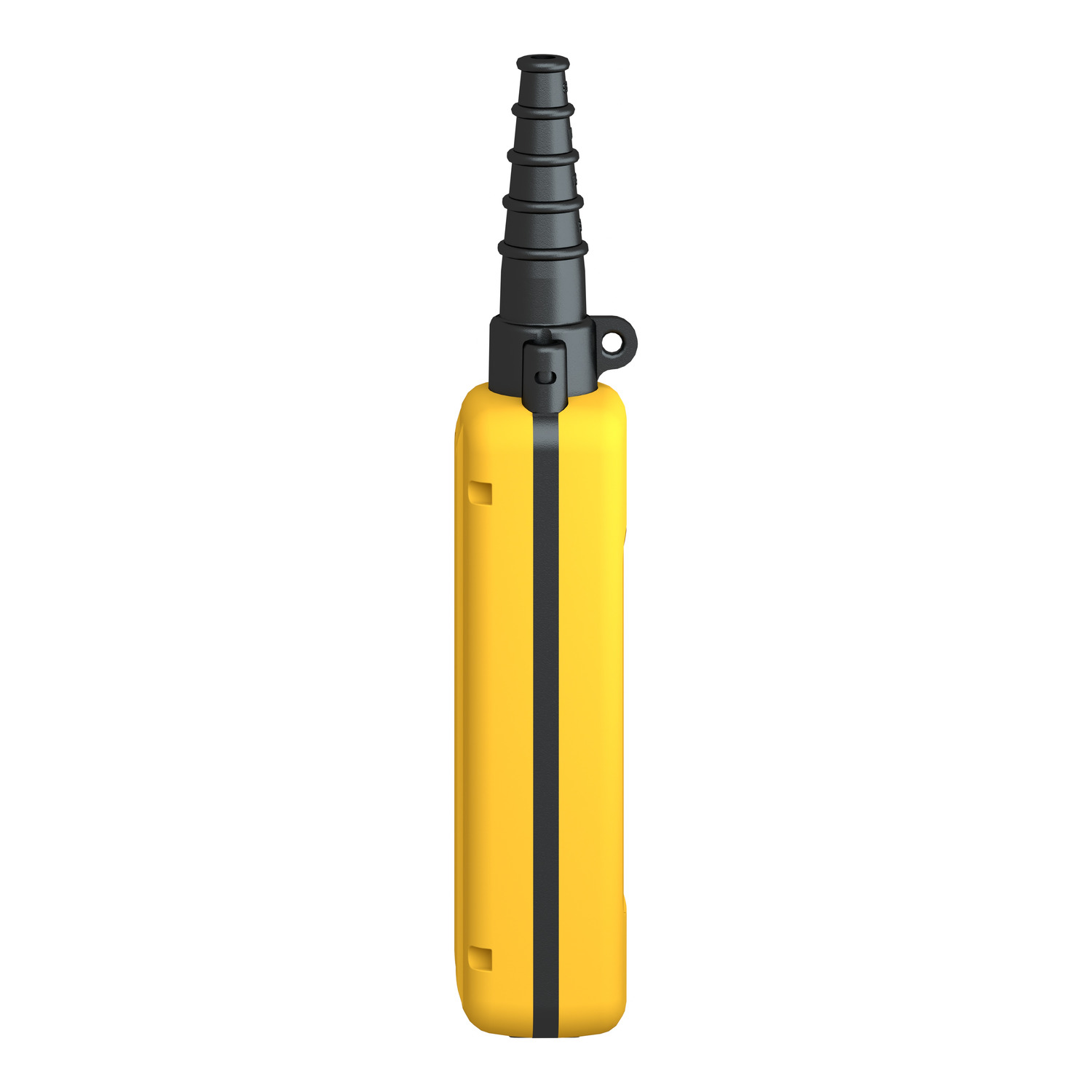

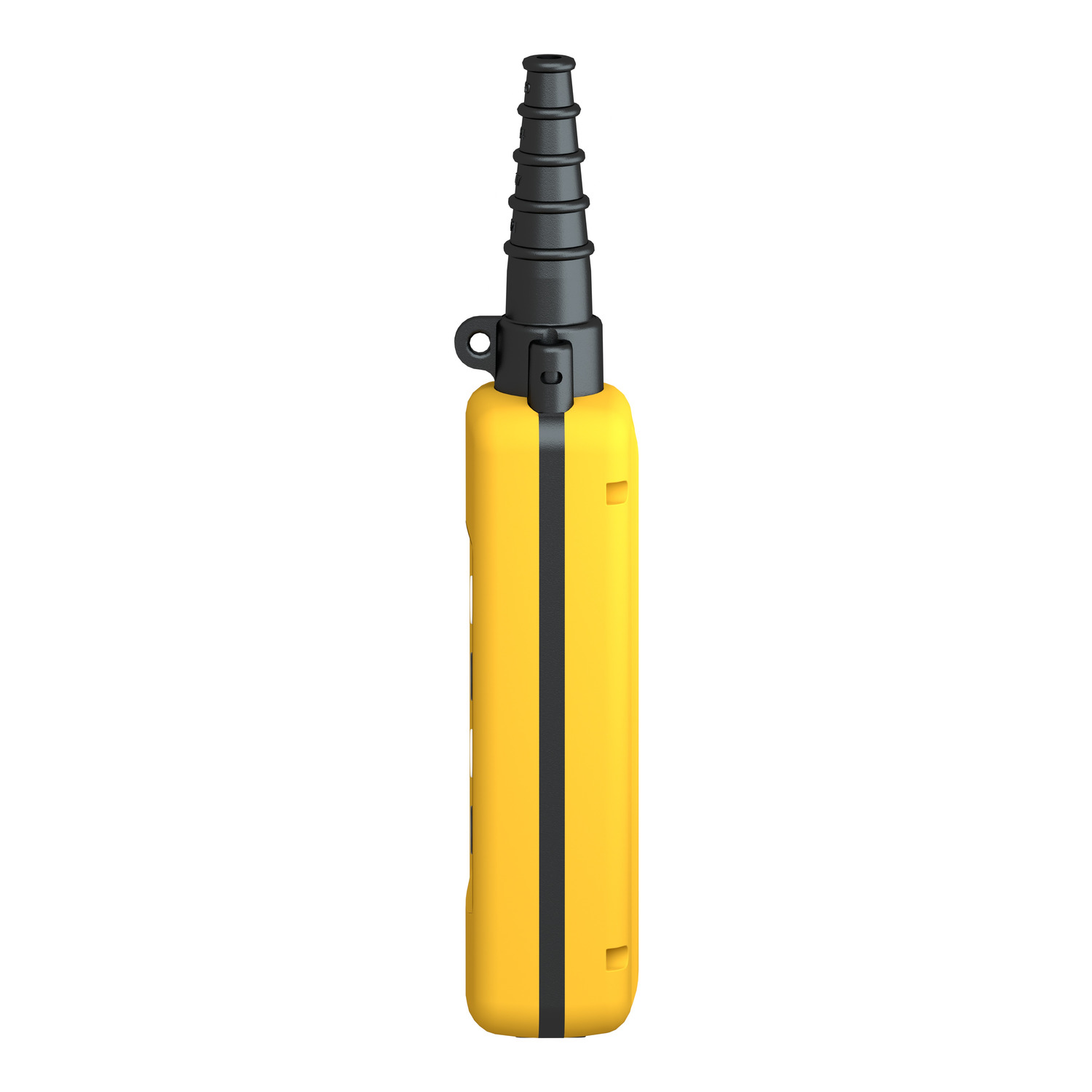

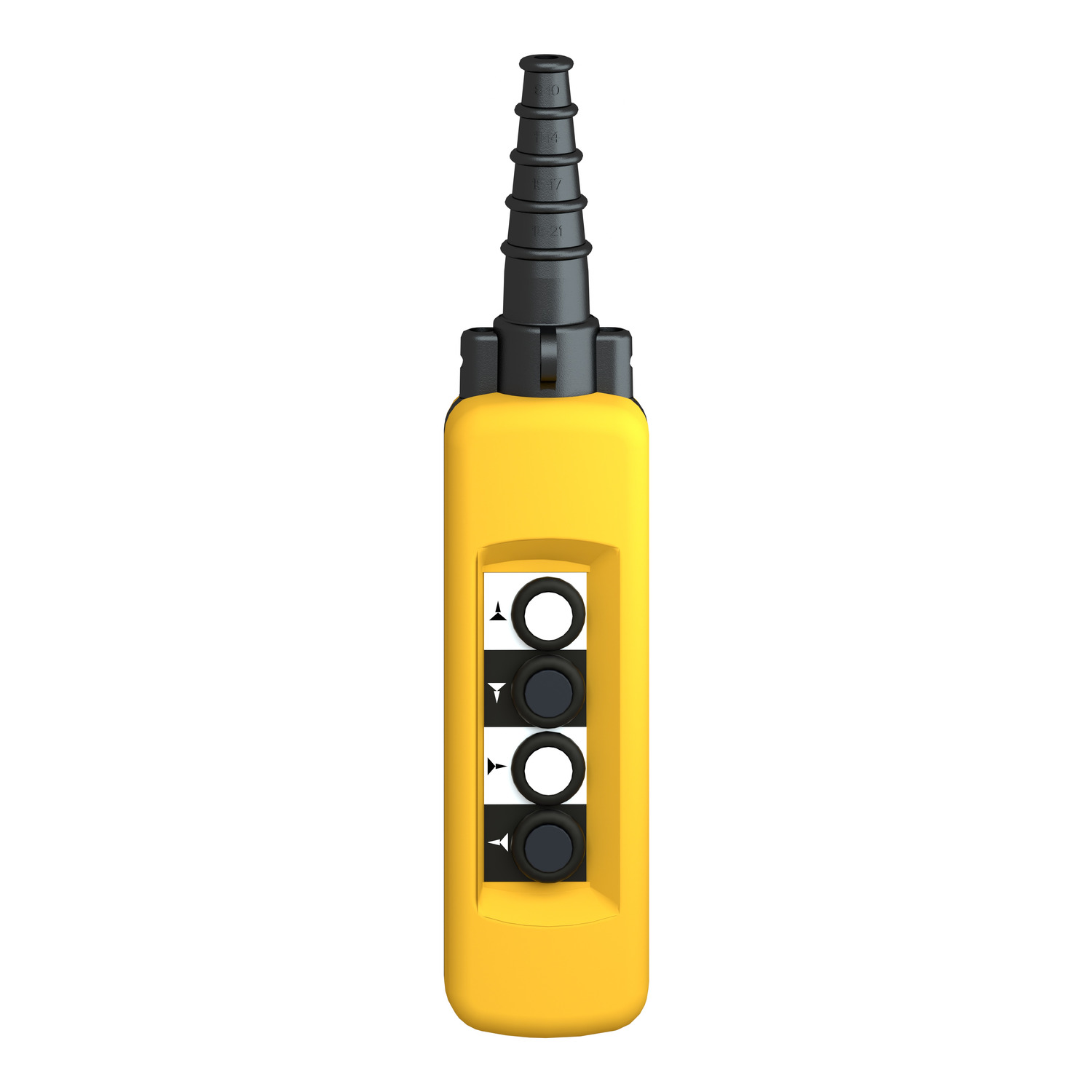

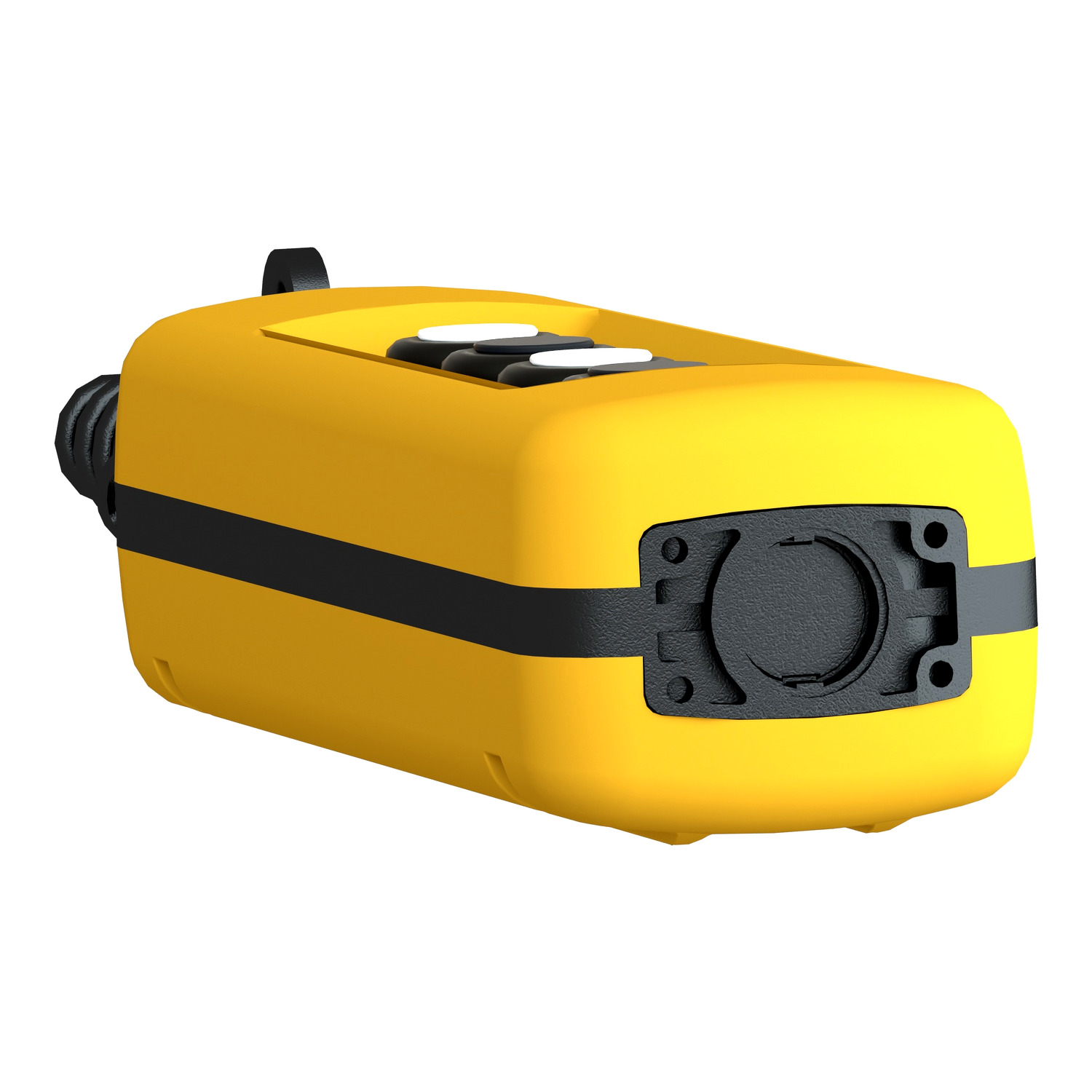

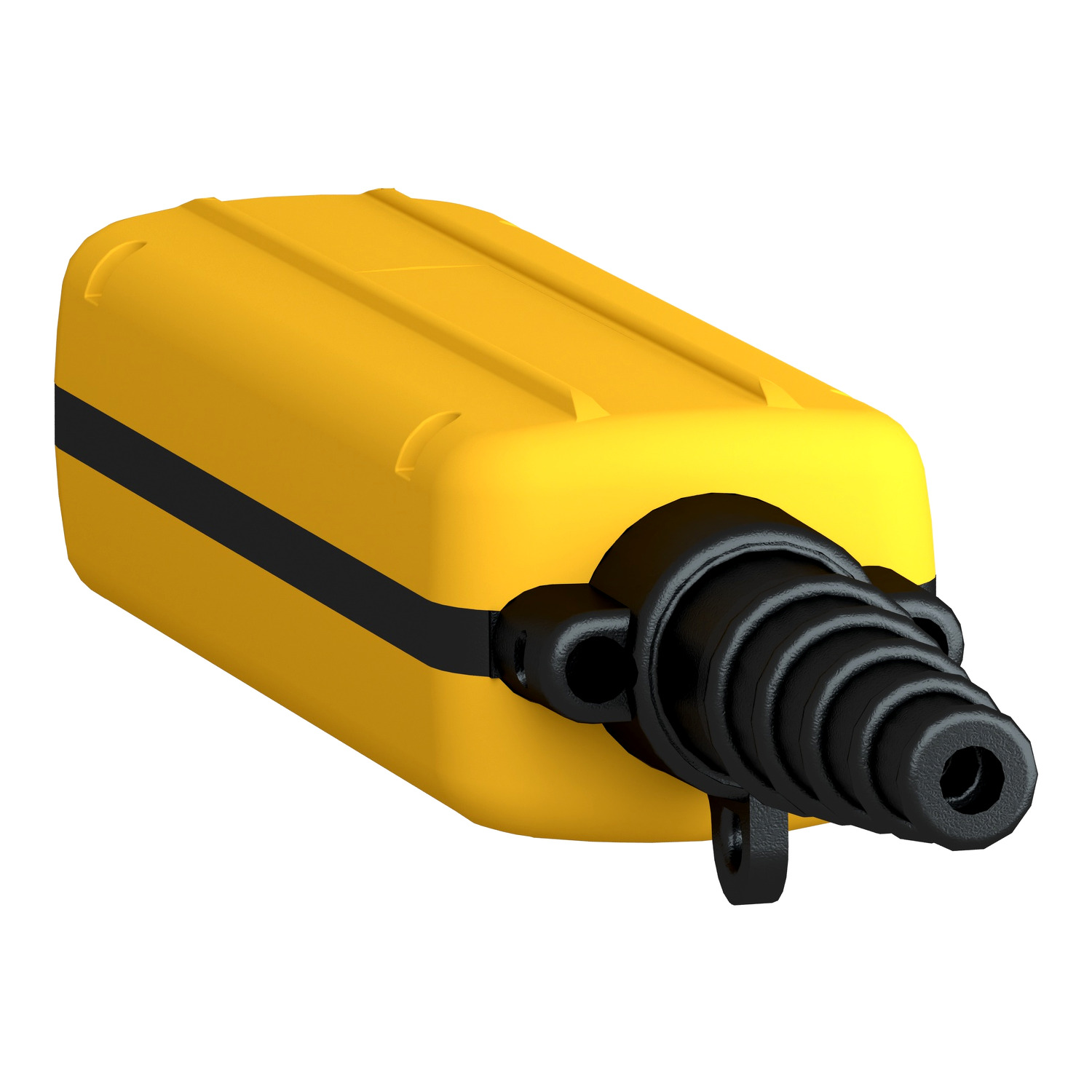

Post De Comanda Suspendat Xac-A - 4 Butoane
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Model/type | |
| Type of executable motions | Transport - hoist |
| Number of speeds | 2 |
| Number of command positions | 4 |
| Measurements | |
| Width | 80 mm |
| Depth | 70 mm |
| Height | 250 mm |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Application | |
| Suitable for emergency stop | No |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 13 |
| Colour | |
| Colour housing cover | Yellow |
| Electrical | |
| Rated operation current Ie at AC-15, 600 V | 1.2 A |
| Package 1 | |
| volume | 3404,25 cm3 |
| weight | 825 g |
| length | 44,5 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110325768 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 10,55 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 13389110325765 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 50,2 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
