Descriere

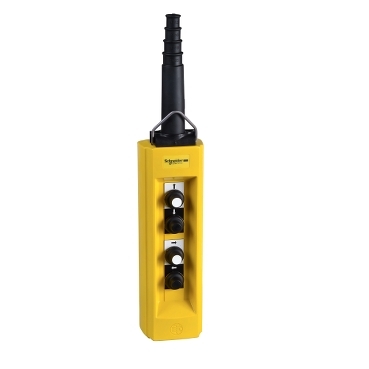

Cutie Suspendata Xac-B - 4 Butoane
Documente
Fisa tehnica
Specificatii
| Model/type | |
| Type of executable motions | Other |
| Number of speeds | 1 |
| Number of command positions | 4 |
| Measurements | |
| Width | 98 mm |
| Depth | 76 mm |
| Height | 499 mm |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Application | |
| Suitable for emergency stop | No |
| Electrical | |
| Rated operation current Ie at AC-15, 600 V | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 13 |
| Colour | |
| Colour housing cover | Yellow |
| Package 1 | |
| volume | 5929,056 cm3 |
| weight | 1,524 kg |
| length | 51,9 cm |
| width | 11,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110665659 |
