Descriere

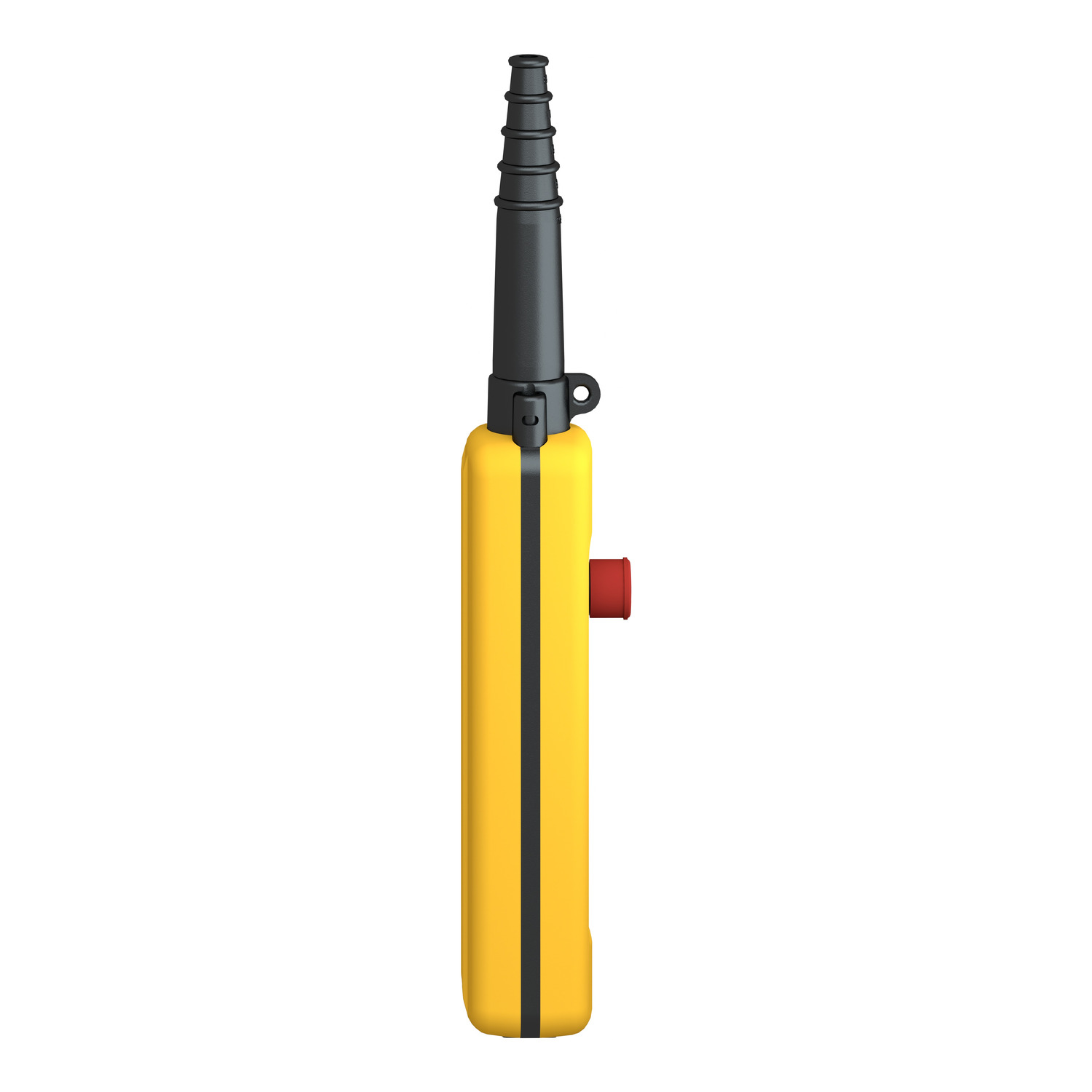

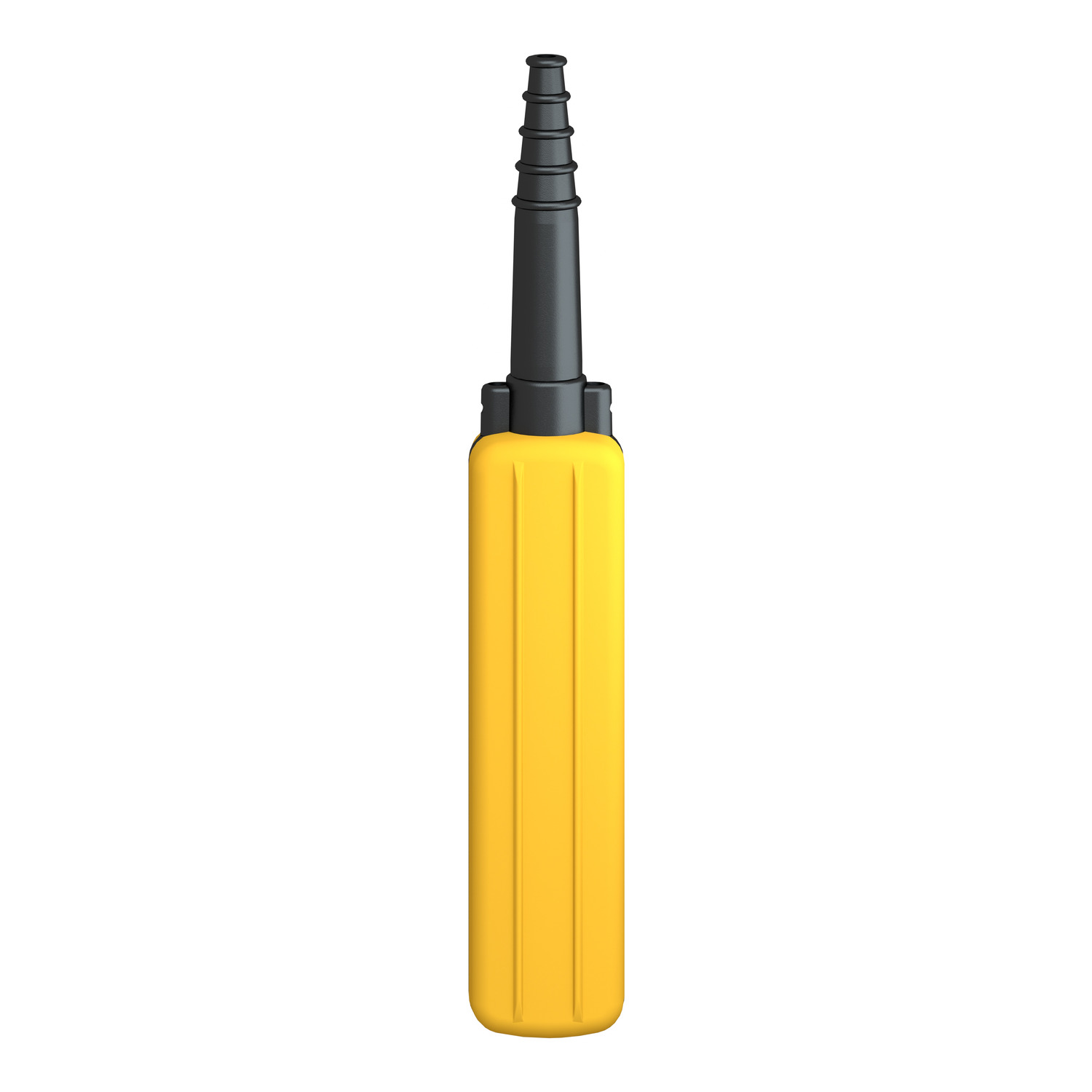

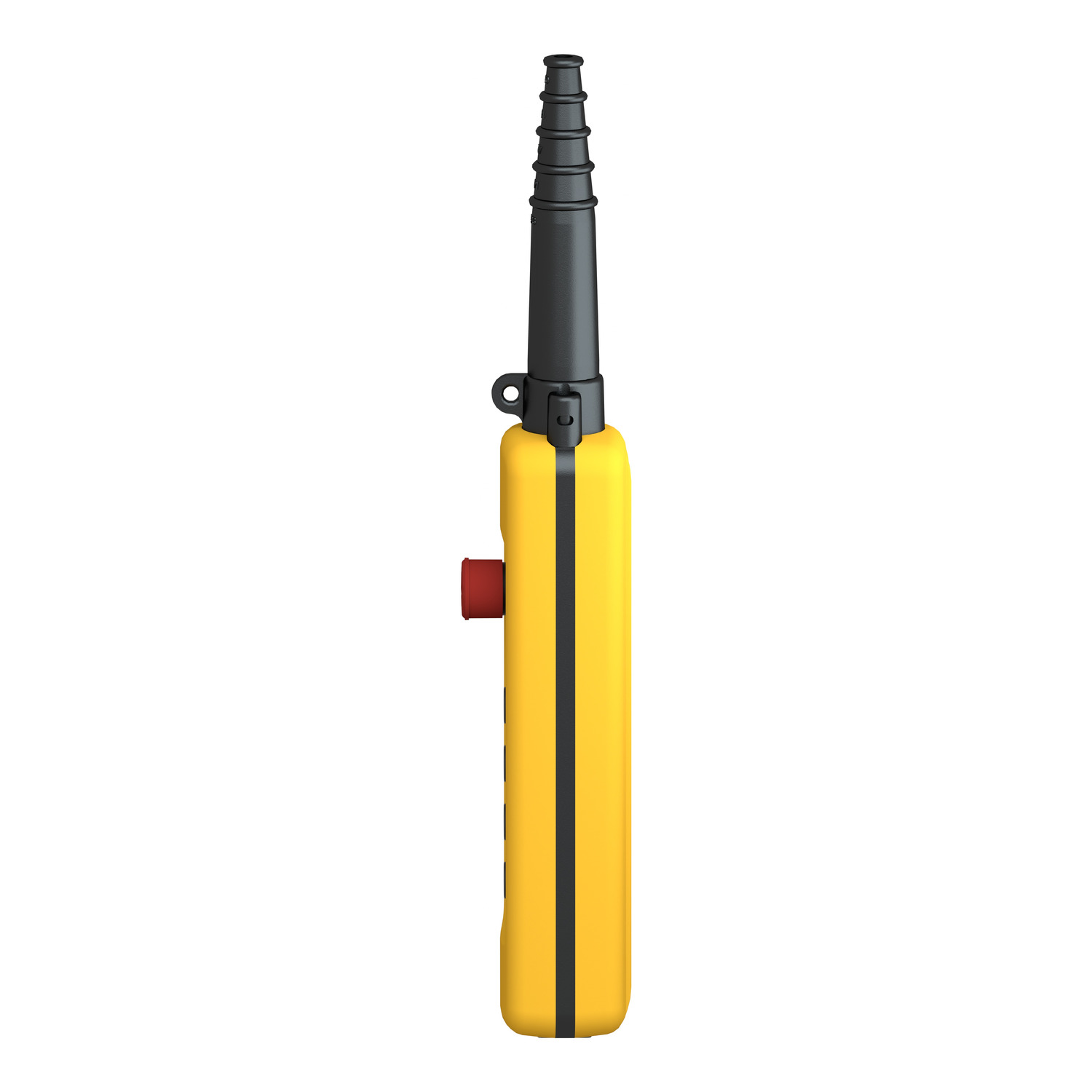

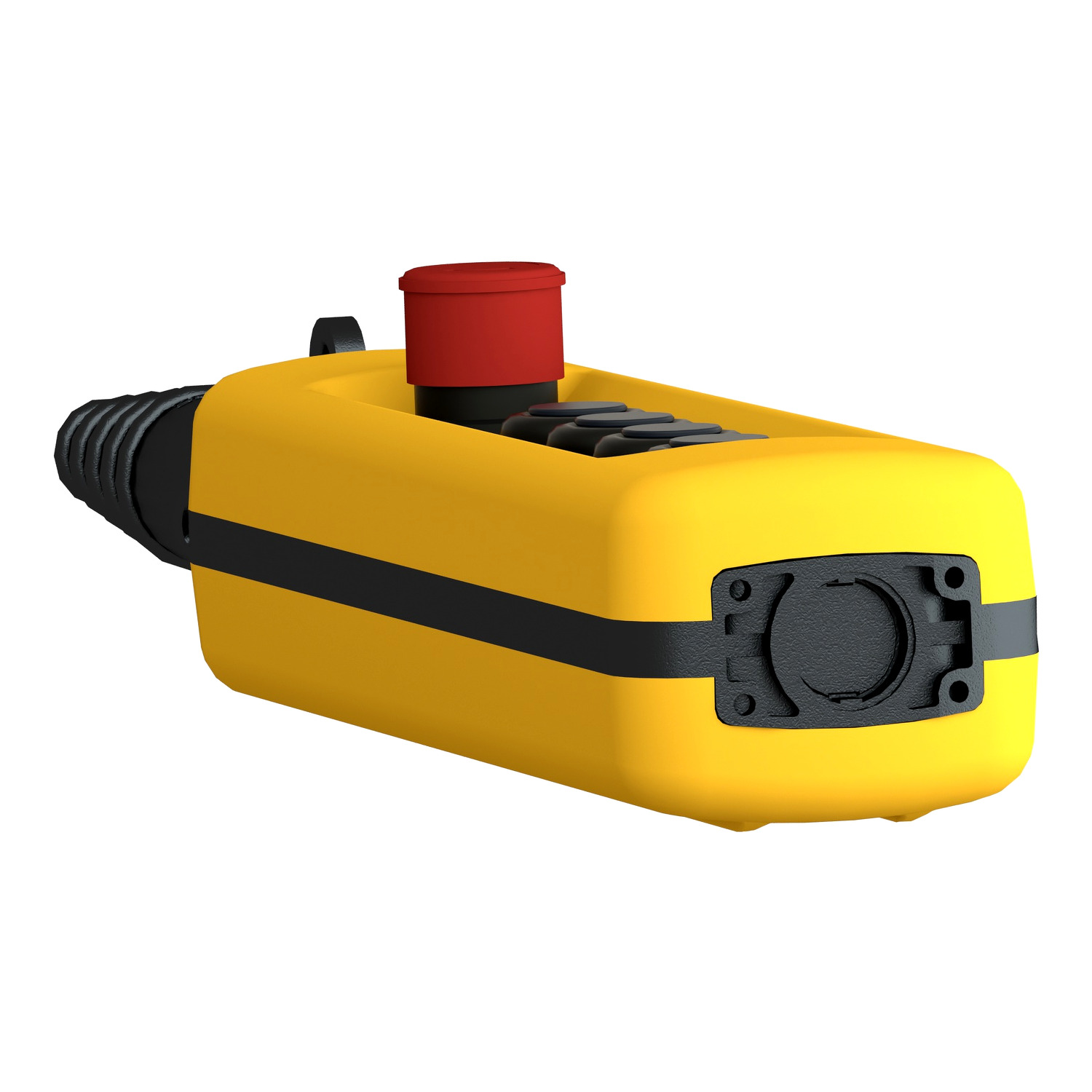

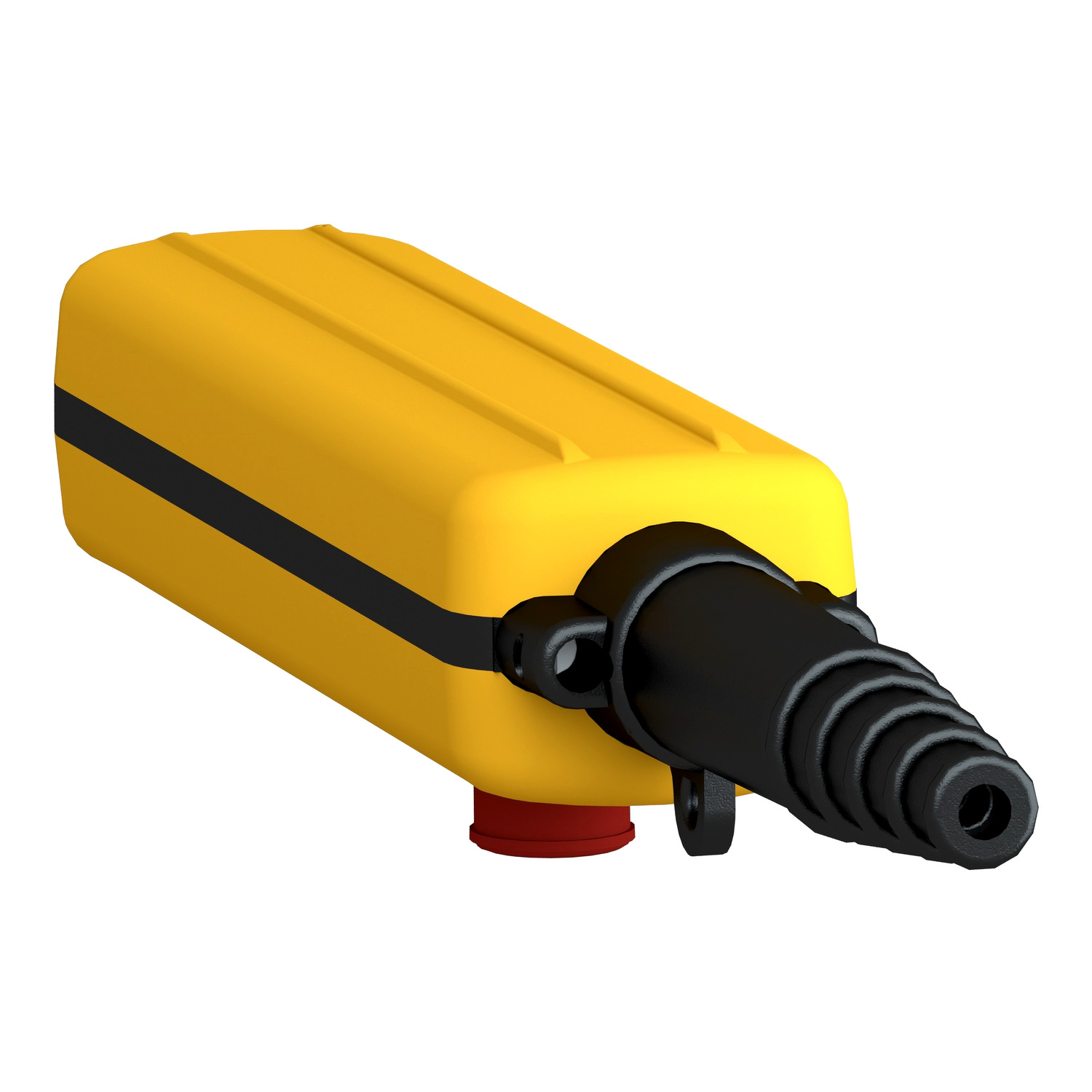

Post De Comanda Suspendat Xac-A - 4 Butoane - 1 Oprire De Urgenta
Documente
Fisa tehnica
Instructiuni
Altele
Specificatii
| Measurements | |
| Width | 80 mm |
| Depth | 107 mm |
| Height | 250 mm |
| Model/type | |
| Type of executable motions | Transport - hoist |
| Number of speeds | 1 |
| Number of command positions | 4 |
| Material | |
| Housing material | Plastic |
| Housing material quality | Other |
| Application | |
| Suitable for emergency stop | Yes |
| Colour | |
| Colour housing cover | Yellow |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 13 |
| Electrical | |
| Rated operation current Ie at AC-15, 600 V | 1.2 A |
| Package 1 | |
| volume | 6006 cm3 |
| weight | 777 g |
| length | 52 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110426878 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 36,73 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 73389110426877 |
Accesorii
