Descriere

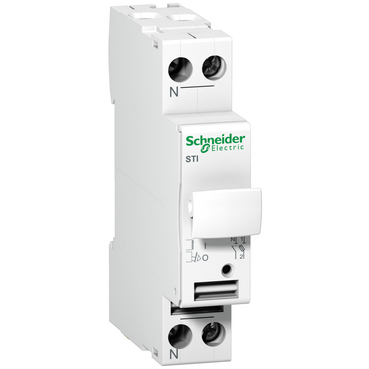

Acti9 - Separator cu fuzibil STI - 1P+N - 10 A - Pentru siguranta 8.5 x 31.5 mm
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Built-in depth | 44 mm |
| Width in number of modular spacings | 1 |
| For fuse size | 8.5x31.5 mm |
| Electrical | |
| Number of poles | 1 |
| Nominal voltage | 400 V |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Concurrently switching neutral conductor | No |
| Lockable | Yes |
| Mounting/installation | |
| Mounting method | DIN rail |
| Model/type | |
| With optical defect indication | Yes |
| Package 1 | |
| volume | 114,75 cm3 |
| weight | 73 g |
| length | 8,5 cm |
| width | 1,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480619526 |
| Package 2 | |
| volume | 1720,4 cm3 |
| weight | 930 g |
| length | 22 cm |
| width | 9,2 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480619523 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 11,653 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 144 |
| qmin | 144 |
| um | CT |
| gtin | 43606480619524 |
