Descriere

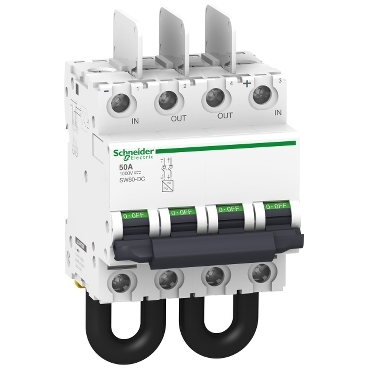

SW60-DC Intreruptor 1000VDC 50A 2P
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Electrical | |
| Rated current | 50 A |
| Rated voltage | 1000 V |
| Rated switching capacity | 1 kA |
| Voltage type | DC |
| Short-circuit breaking capacity (Icw) | 0.6 kA |
| Number of poles | 2 |
| Min. rated voltage | 1000 V |
| Max. lamp power | - |
| Measurements | |
| Built-in depth | 77.4 mm |
| Width in number of modular spacings | 4 |
| Model/type | |
| With signal lamp | No |
| Switching function | Off switch |
| Lamp type | - |
| Other | |
| Imprint/indication | None |
| Lamp socket | - |
| Colour | |
| Colour calotte | Black |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 926,695 cm3 |
| weight | 543 g |
| length | 14,5 cm |
| width | 7,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480504143 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 16,882 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606480504141 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 146,776 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
