Descriere

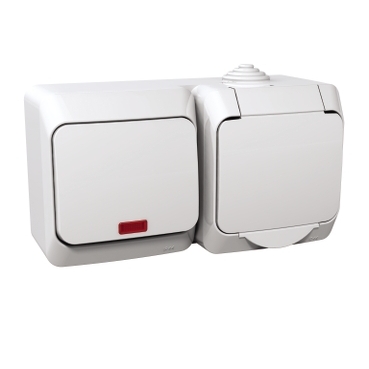

Priza Simpla impamantare+Comutator cu revenire, 16A(X),Indicator luminos, Alb
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | - |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | - |
| Material quality | Thermoplastic |
| Mounting/installation | |
| Mounting direction | Horizontal |
| Type of fastening | Mounting with screw |
| Mounting method | Surface mounted |
| Model/type | |
| With lighting | Yes |
| Number of socket outlets | 1 |
| Type of switch | Two-way switch |
| Type of socket outlet | Earthing pin |
| With miniature fuse | - |
| Protection | |
| Suitable for degree of protection (IP) | IP44 |
| Fault current protection | - |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Measurements | |
| Device depth | 54 mm |
| Min. depth of built-in installation box | - |
| Device width | 132 mm |
| Device height | 79 mm |
| Electrical | |
| Rated current | 16 A |
| Nominal voltage | 250 V |
| Overvoltage protection | - |
| Nominal current socket outlet | - |
| Setting/control | |
| Method of operation | Rocker/button |
| Connection | |
| Number of active contacts (flat) | - |
| Number of active contacts (round) | - |
| Package 1 | |
| volume | 556,875 cm3 |
| weight | 194 g |
| length | 13,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303432403133 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 1,074 kg |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13303432403130 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,868 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 23303432403137 |
