Descriere

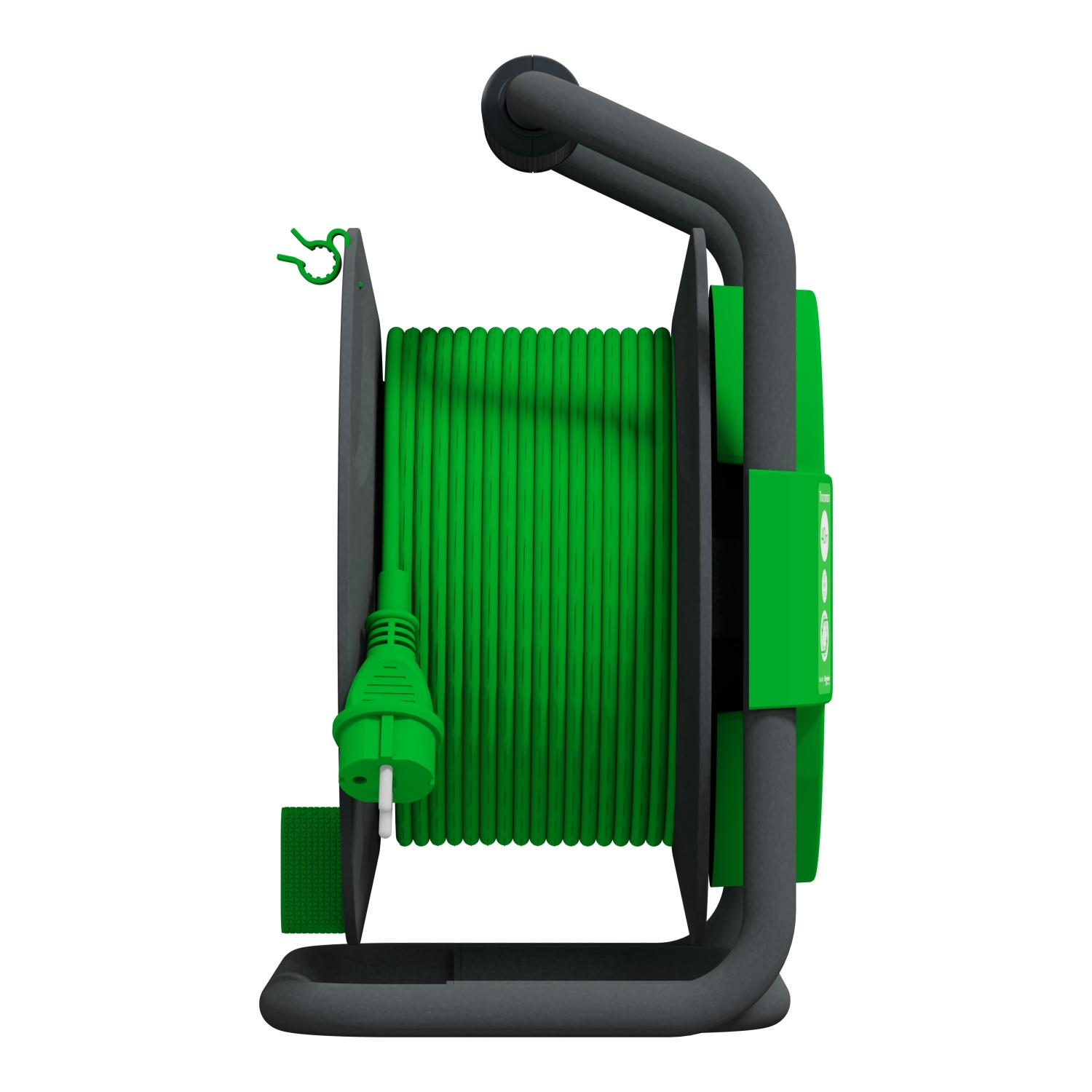

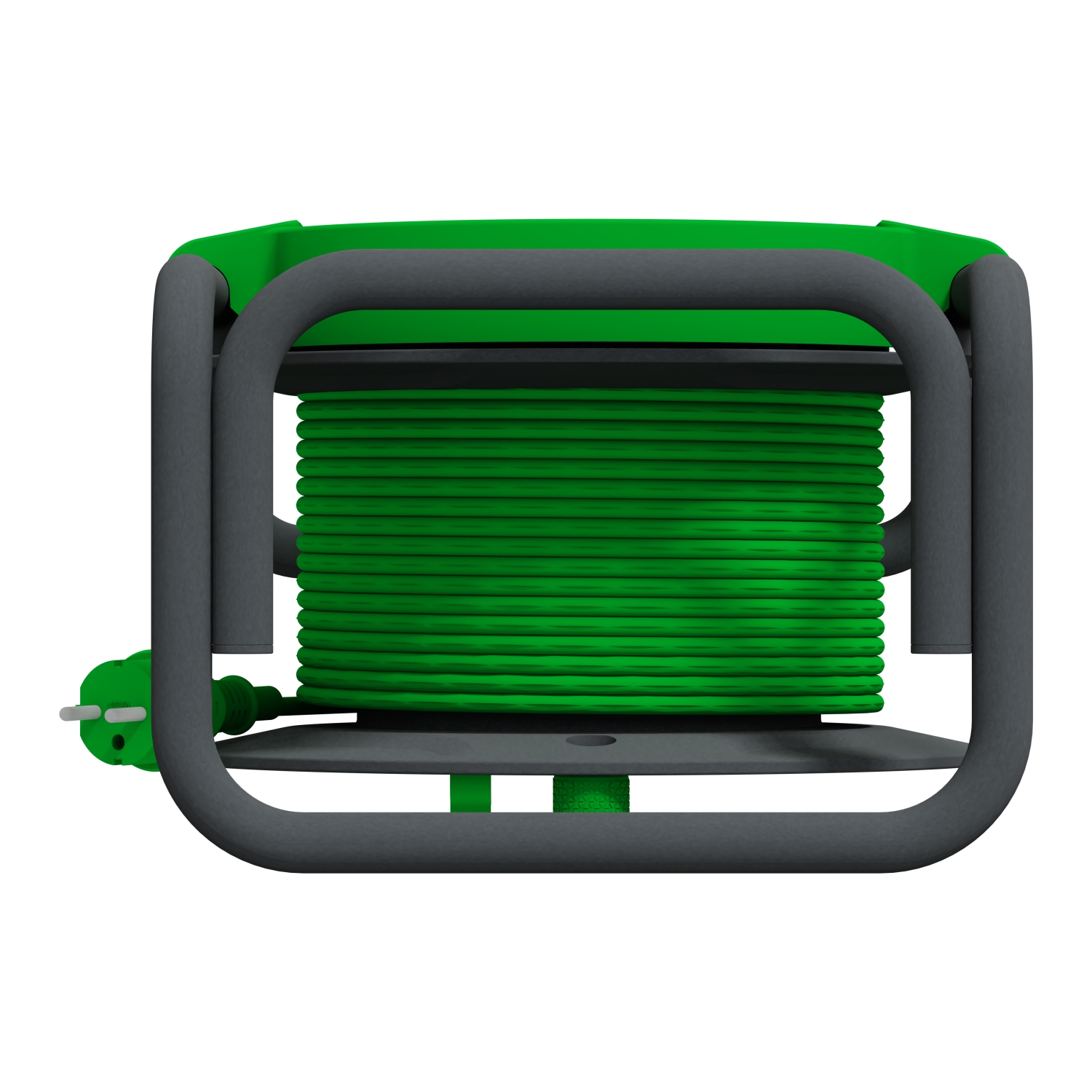

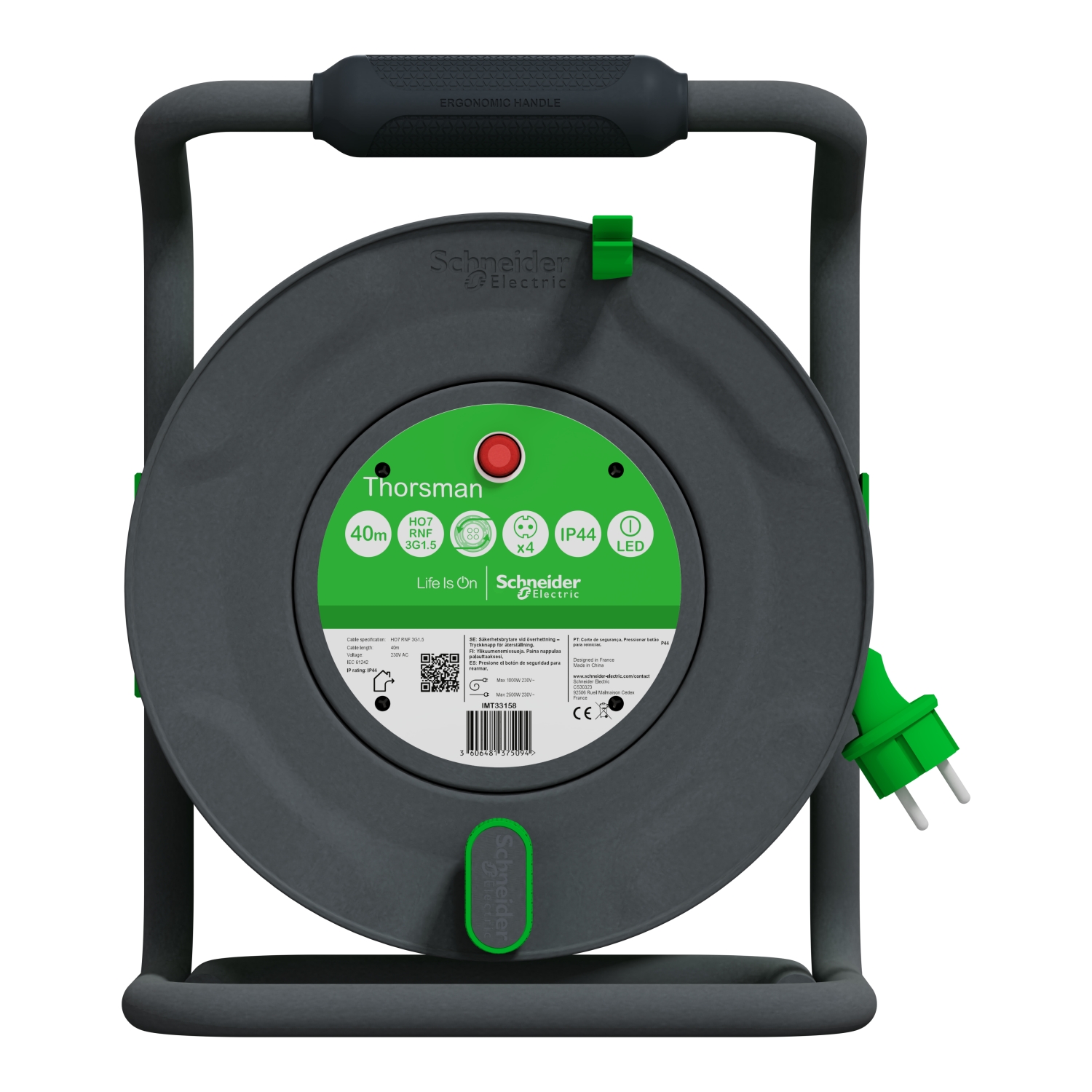

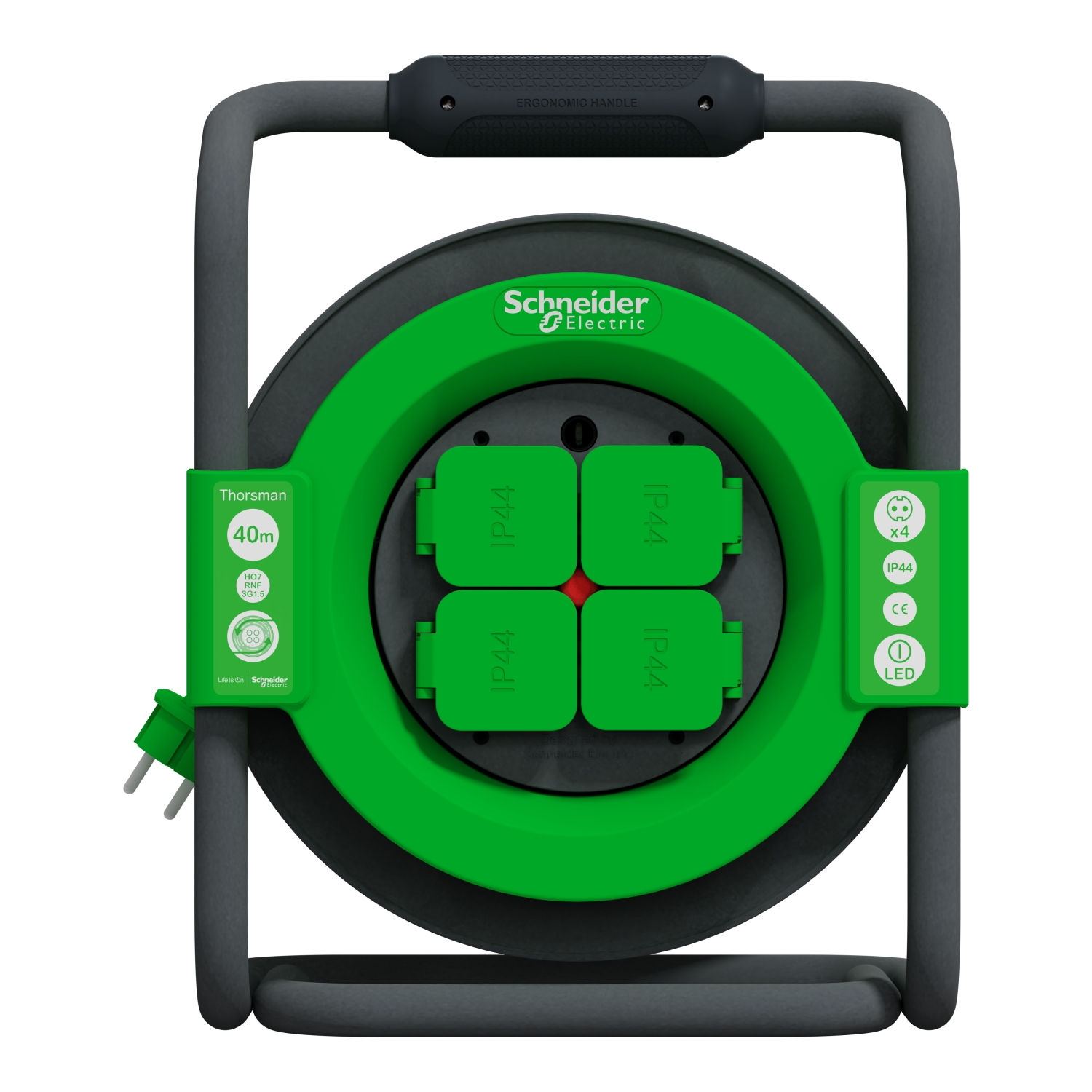

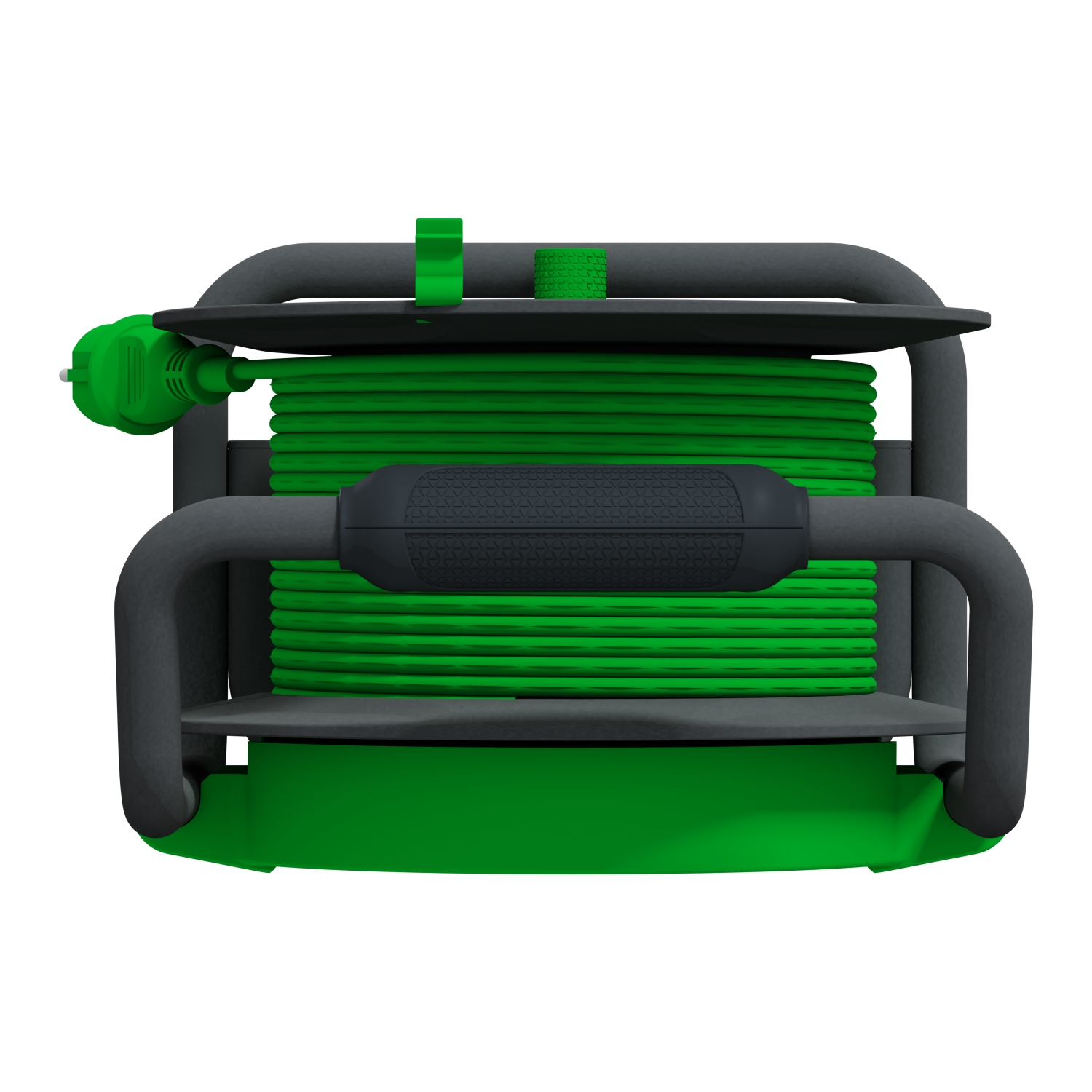

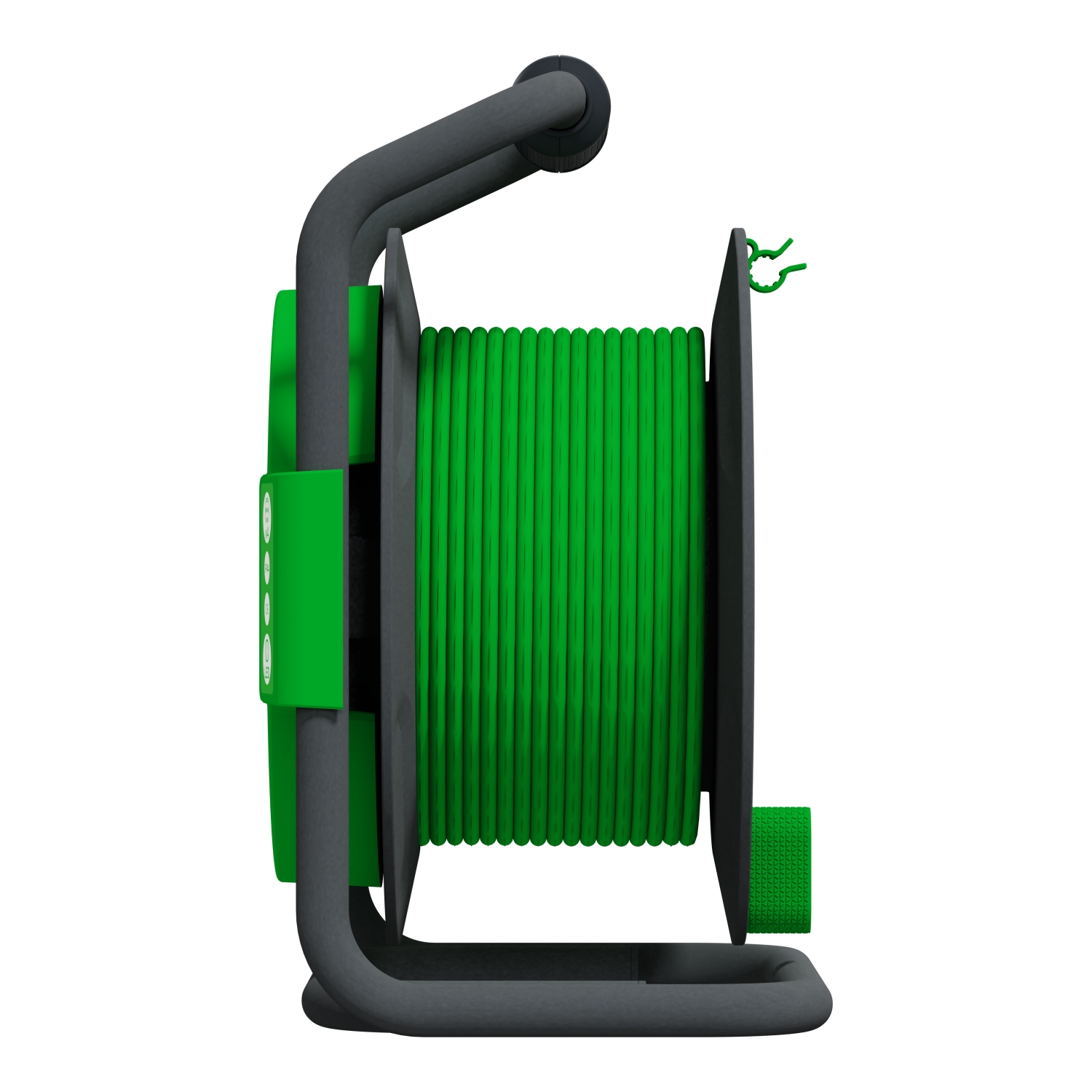

Thorsman, Tambur cablu 40M Profesional HO7RNF 3G1.5 IP44 4 prize
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Colour | |
| Colour | Green |
| Mounting/installation | |
| With mounting frame | No |
| Connection | |
| Core cross section | 1.5 mm² |
| Type of mains connection | - |
| Measurements | |
| Cable length | 40 m |
| Options | |
| Automatic cable winding | No |
| Model/type | |
| Cable assembly | H07RN-F |
| Number of cores | 3 |
| Number of CEE socket outlets (IEC 60309) | - |
| Number of socket outlets with protective contact CEE 7/3 (type F) | 4 |
| With locking | No |
| Number of socket outlets Italian standard type Bipasso | - |
| With thermal overload protection | Yes |
| Number of socket outlets Swiss standard type 25 | - |
| Number of socket outlets Swiss standard type 23 | - |
| Number of socket outlets Swiss standard type 15 | - |
| Number of socket outlets Swiss standard type 13 | - |
| Protection | |
| Protection | - |
| Degree of protection (IP) | IP44 |
| Material | |
| Housing material | Plastic |
| Electrical | |
| Leakage current type | - |
| Package 1 | |
| volume | 54510 cm3 |
| weight | 11,575 kg |
| length | 46 cm |
| width | 39,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481375094 |
| Package 2 | |
| volume | 1536000 cm3 |
| weight | 219,6 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
