Descriere

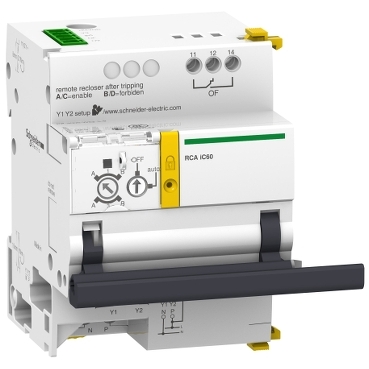

Auxiliar RCA cu Ti24 Comanda de La Distanta pentru Ic60 1P-1Pn-2P
Documente
Specificatii
| Electrical | |
| Rated voltage | 230 V |
| Rated switch current | 0.01 A |
| Suitable for max. number of poles main contact unit (total) | 2 |
| Suitable for max. current main contact unit | 63 A |
| Voltage type for actuating | AC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Remote drive |
| Measurements | |
| Width in number of modular spacings | 3.5 |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 2 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 1603,8 cm3 |
| weight | 511 g |
| length | 16,2 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480097966 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,64 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 14 |
| qmin | 14 |
| um | CT |
| gtin | 43606480097964 |
Accesorii
Recomandari
