Descriere

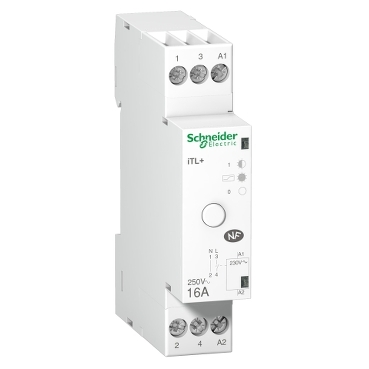

Releu impuls iTL+, 1P+N, 1NO, 16A, bobina 230 VAC 50Hz
Documente
Specificatii
| Electrical | |
| Frequency control voltage 1 | 50 Hz |
| Type of control voltage 2 | - |
| Frequency control voltage 2 | - |
| Rated switch current | 16 A |
| Max. load fluorescent lamp (parallel compensated) | 2900 VA |
| Supply voltage | 250 V |
| Voltage type (supply voltage) | AC |
| Max. incandescent lamp load | 2900 W |
| Max. load fluorescent lamp | 2900 VA |
| Max. load fluorescent lamp (Duo circuit) | - |
| Control voltage 1 | 230 V |
| Type of control voltage 1 | AC |
| Max. switching current (cos phi = 0.6) | 2900 A |
| Control voltage 2 | - |
| Application | |
| Suitable for manual operation | Yes |
| Measurements | |
| Built-in depth | 43.5 mm |
| Width in number of modular spacings | 1 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Model/type | |
| Function | Mechanical switch |
| Package 1 | |
| volume | 195,96 cm3 |
| weight | 92 g |
| length | 9,2 cm |
| width | 7,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480376979 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,052 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 63 |
| qmin | 63 |
| um | CT |
| gtin | 43606480376977 |
