Descriere

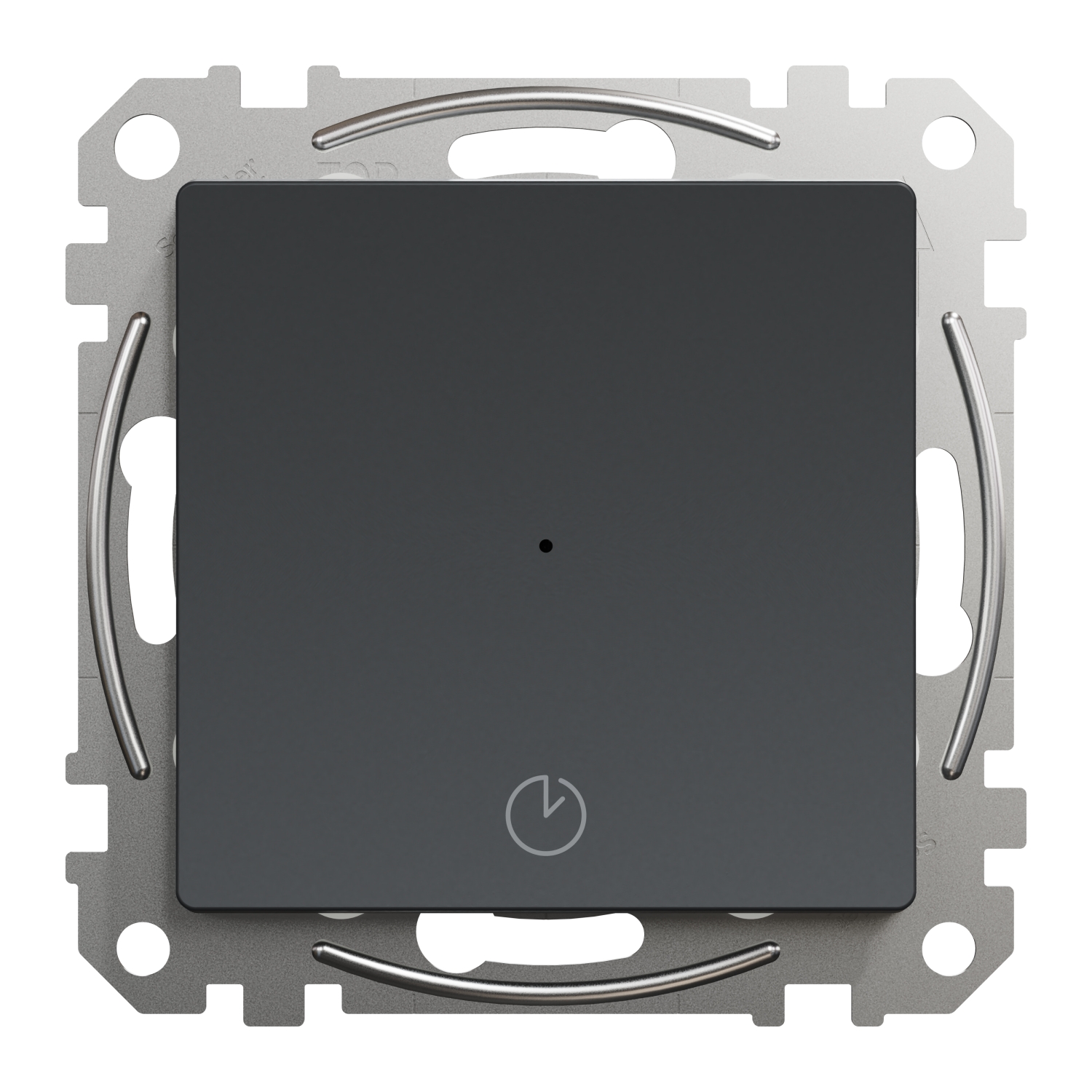

Sedna Design, Temporizator cu numaratoare inversa 10A, antracit
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Plastic |
| Material quality | Thermoplastic |
| Measurements | |
| Built-in depth | - |
| Device depth | 45 mm |
| Min. depth of built-in installation box | 40 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Other | |
| Frequency | 50 Hz |
| Shortest switching interval | 5 min |
| Performance | |
| Max. power | 2200 W |
| Autonomy | 8 h |
| Model/type | |
| Model | Electronic |
| Number of modules (module system) | 0 |
| With socket outlet | No |
| Assembly arrangement | Basic element with central cover plate |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 7021 |
| Transparent | No |
| Colour | Anthracite |
| Options | |
| IFTTT support available | No |
| Random generator | No |
| Astro program | No |
| Electrical | |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Mounting with screw |
| Mounting method | Flush-mounted |
| Connection | |
| With brightness sensor connection | No |
| Substation input | No |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | 0 |
| Setting/control | |
| Twilight value adjustable | 0 lx |
| Time setting | 5 min |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 722 cm3 |
| weight | 166 g |
| length | 9,5 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481467539 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,236 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 13606481467536 |
| Package 3 | |
| volume | 720000 cm3 |
| weight | 83,552 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 384 |
| qmin | 384 |
| um | PF |
