Descriere

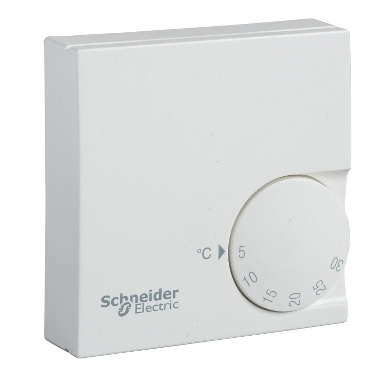

Multi9, Th, Montare Pe Perete Termostat
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Model/type | |
| With display | No |
| With sound indicator | No |
| With tap water circuit | No |
| Model | On/Off |
| With receiver | No |
| External sensor | No |
| Number of modules (module system) | - |
| Sensor/feeler type | - |
| Thermal feedback | None |
| Application | |
| Suitable for heating | Yes |
| Electrical | |
| Max. contact load | 10 A |
| Max. contact voltage | 250 V |
| Type of power supply | 230 V AC |
| Standby power consumption (solstandby) | - |
| Setting/control | |
| Adjustable differential | No |
| Class of the temperature control | I |
| Operation | Turn |
| Connection | |
| Number of cooler outputs | 0 |
| Number of heater outputs | 1 |
| Control characteristic | P |
| Measurements | |
| Diameter | - |
| Height | 70 mm |
| Width | 70 mm |
| Depth | - |
| Colour | |
| RAL-number | - |
| Protection | |
| Degree of protection (IP) | - |
| Explosion-proof | No |
| Degree of protection (NEMA) | 1 |
| Other | |
| Differential value | - |
| Options | |
| Temperature readable | No |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Package 1 | |
| volume | 224 cm3 |
| weight | 88 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430158707 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,736 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 72 |
| qmin | 72 |
| um | CT |
| gtin | 43303430158705 |
