Descriere

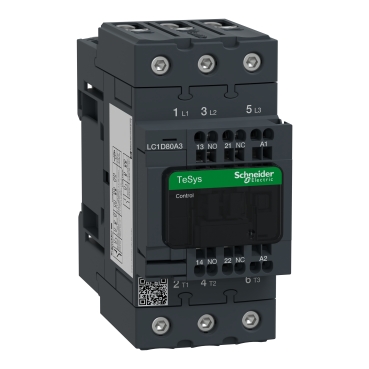

Tesys D Contactor 3P 80A Ac-3 Up To 440V Bobina 230V C.A 50/60Hz Everlink+Arcuri
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 V |
| Rated control supply voltage AC 60 Hz | 230 V |
| Rated operation power at AC-3, 400 V | 37 kW |
| Rated operation power NEMA | 29.8 kW |
| Rated operation current Ie at AC-1, 400 V | 80 A |
| Rated operation current Ie at AC-3, 400 V | 66 A |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-4, 400 V | 65 A |
| Rated control supply voltage DC | - |
| Rated operation power at AC-4, 400 V | 30 kW |
| Options | |
| Suitable for distribution board | Yes |
| Package 1 | |
| volume | 1290,096 cm3 |
| weight | 923 g |
| length | 15,3 cm |
| width | 13,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481312280 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 9,759 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43606481312288 |
