Descriere

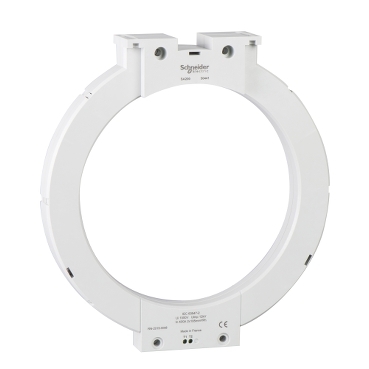

Transformator Curent Inchis Ptr. Protectie Impotriva Curentilor Reziduali Ga - Ø300 Mm
Documente
Specificatii
| Model/type | |
| Model | Summation current transformer |
| With contact protection | Yes |
| With copper rail | No |
| Options | |
| Calibrated | Yes |
| Connection | |
| Number of primary inputs | 4 |
| Secondary connection | Other |
| Electrical | |
| Rated primary current | 630 A |
| Overcurrent limiting factor | - |
| Rated secondary current | 0.63 A |
| Rated secondary apparent power | - |
| Measurements | |
| Opening diameter | 291 mm |
| Width opening | - |
| Height opening | - |
| Other | |
| Accuracy class | 1 |
| Mounting/installation | |
| Snap mounting | No |
| Package 1 | |
| volume | 7988,544 cm3 |
| weight | 2,139 kg |
| length | 40,2 cm |
| width | 36,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430504429 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 11,393 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43303430504427 |
