Descriere

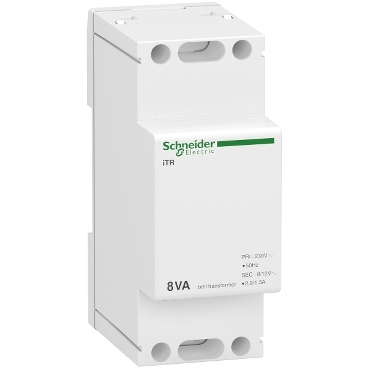

Transformator sonerie 8VA 230VCA 8..12VCA
Documente
Specificatii
| Measurements | |
| Length | 60 mm |
| Width | 36 mm |
| Width in number of modular spacings | 2 |
| Height | 89 mm |
| Electrical | |
| Max. output power | - |
| Primary voltage | 230 V |
| Max. power loss | 1.4 W |
| Short-circuit protected | Yes |
| Secondary voltage 3 | - |
| Secondary amperage 1 | 1 A |
| Max. output current | - |
| Secondary voltage 1 | 8 V |
| Secondary voltage 2 | 12 V |
| Secondary amperage 3 | - |
| Secondary amperage 2 | 0.66 A |
| Mounting/installation | |
| Flush-mounted installation | No |
| Surface mounting | No |
| Options | |
| Suitable for distribution board | Yes |
| Model/type | |
| Type of transformer | Standard bell ringing transformer |
| With on/off switch | No |
| Protection | |
| Temperature protection | Yes |
| Package 1 | |
| volume | 266 cm3 |
| weight | 270 g |
| length | 9,5 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480097881 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 10,96 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 13606480097888 |
