Descriere

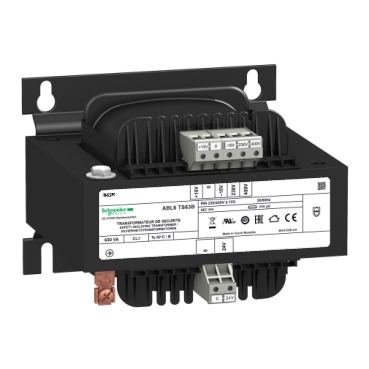

Transformator De Tensiune - 230 - 400 V - 1 X 24 V - 630 Va
Documente
Specificatii
| Electrical | |
| Primary voltage 10 | - |
| Secondary voltage 3 | - |
| Primary voltage 4 | - |
| Secondary voltage 4 | - |
| Secondary voltage 5 | - |
| Primary voltage 5 | - |
| Primary voltage 6 | - |
| Secondary voltage 6 | - |
| Rated apparent power | 630 VA |
| Primary voltage 1 | 230 V |
| Secondary voltage 1 | 24 V |
| Secondary voltage 10 | - |
| Relative short circuit voltage | 3.41 % |
| Secondary voltage 2 | - |
| Primary voltage 3 | - |
| Primary voltage 2 | 385 V |
| Primary voltage 7 | - |
| Secondary voltage 7 | - |
| Primary voltage 8 | - |
| Primary voltage 9 | - |
| Secondary voltage 8 | - |
| Secondary voltage 9 | - |
| Options | |
| Suitable for distribution board | No |
| Short-circuit-proof | No |
| Ring core | No |
| Material | |
| Conductor material | Other |
| Type of insulation material according to IEC 85 | B |
| Model/type | |
| Built as safety transformer | Yes |
| Built as isolating transformer | Yes |
| Built as energy saving transformer | No |
| Measurements | |
| Height | 152 mm |
| Width | 150 mm |
| Depth | 138 mm |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Suitable for mounting on PCB | No |
| Package 1 | |
| volume | 11328,75 cm3 |
| weight | 10,295 kg |
| length | 19 cm |
| width | 22,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110601350 |
| Package 2 | |
| volume | 360000 cm3 |
| weight | 167,425 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 15 |
| qmin | 15 |
| um | PF |
| gtin | 73389110601359 |
