Descriere

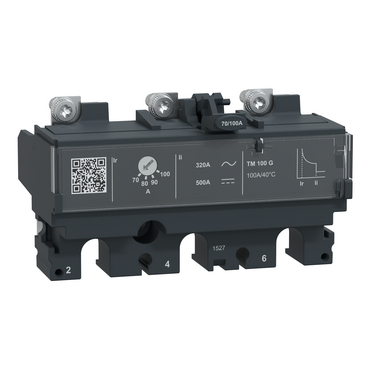

Unitate de declansare TM100G pentru intreruptoare ComPacT NSX 100/160/250, termomagnetice, 100 A, 3 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Thermal/magnetic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | Self powered |
| Rated control supply voltage DC | - |
| End value adjustment range undelayed short-circuit release | 320 A |
| Overload release current setting | 70 A |
| Rated permanent current Iu | 100 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 320 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 1920 cm3 |
| weight | 457 g |
| length | 10 cm |
| width | 12 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482000537 |
