Descriere

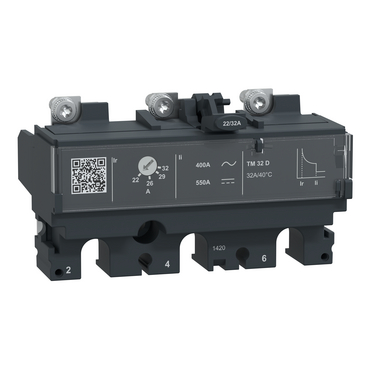

Unitate de declansare TM32D pentru intreruptoare ComPacT NSX 100/160, termomagnetica, 32 A, 3 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Thermal/magnetic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | Self powered |
| Rated control supply voltage DC | - |
| End value adjustment range undelayed short-circuit release | 400 A |
| Overload release current setting | 22.4 A |
| Rated permanent current Iu | 32 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 400 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 805 cm3 |
| weight | 422 g |
| length | 11,5 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481999511 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,154 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 13606481999518 |
