Descriere

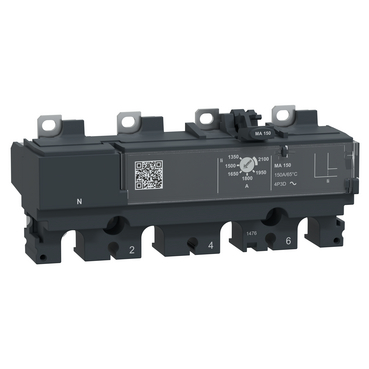

Unitate de declansare MA150 pentru intreruptoare ComPacT NSX 160/250, magnetice, 150 A, 4 poli 4d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Other |
| With ground fault protection function | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Number of poles | 4 |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | Self powered |
| Rated control supply voltage DC | - |
| End value adjustment range undelayed short-circuit release | 2100 A |
| Overload release current setting | - |
| Rated permanent current Iu | 150 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 1350 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 974,85 cm3 |
| weight | 510 g |
| length | 15 cm |
| width | 9,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482000650 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,128 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 23 |
| qmin | 23 |
| um | CT |
| gtin | 13606482000657 |
