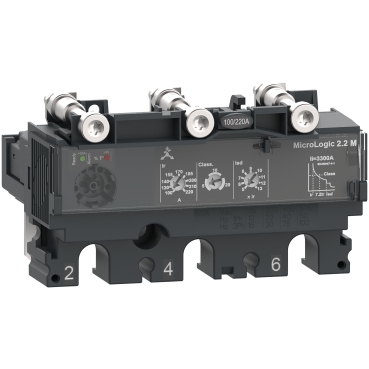

Unitate de declansare MicroLogic 2.2 M pentru intreruptoare ComPacT NSX 250, electronica, 220 A, 3 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | - |
| Voltage type for actuating | Self powered |
| End value adjustment range undelayed short-circuit release | 3300 A |
| Overload release current setting | 100 A |
| Rated permanent current Iu | 220 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 3300 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 691,6 cm3 |
| weight | 436 g |
| length | 11,2 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482000421 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,928 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 43606482000429 |
