Descriere

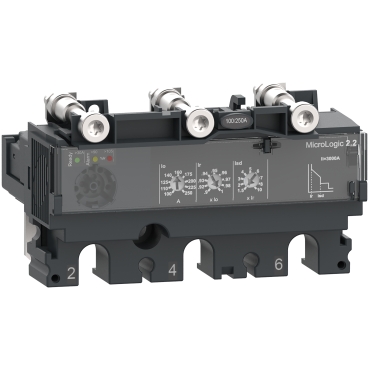

Acest MicroLogic 2.2 este o unitate de declansare electronica 3 poli 3d utilizata pe disjunctoarele ComPacT NSX 250. Aceasta unitate de declansare electronica cu un curent nominal de 250 A este o alegere optima pentru toate aplicatiile standard si specifice. Incorporeaza o protectie reglabila la suprasarcina cu timp lung. Ofera, de asemenea, o protectie reglabila cu timp scurt si o protectie instantanee fixa impotriva scurtcircuitelor. MicroLogic 2.2 indica suprasarcinile cu LED-uri de alarma. LED-ul verde Ready clipeste daca disjunctorul este gata sa declanseze. Acest produs face parte din arhitectura noastra EcoStruxure Power daca este asociat cu PowerTag NSX si cadrul de baza ComPacT NSX.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | - |
| Voltage type for actuating | Self powered |
| End value adjustment range undelayed short-circuit release | 3000 A |
| Overload release current setting | 100 A |
| Rated permanent current Iu | 250 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 3000 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 705,12 cm3 |
| weight | 426 g |
| length | 11,3 cm |
| width | 9,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481999658 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,624 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 43606481999656 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 91,56 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 192 |
| qmin | 192 |
| um | PF |
