Descriere

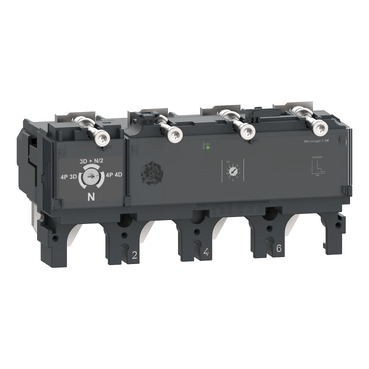

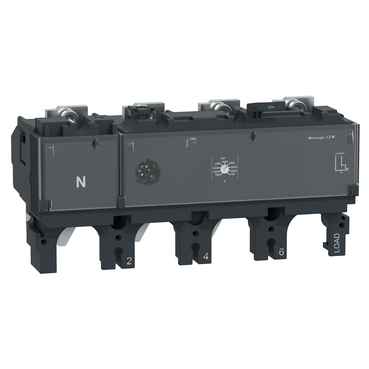

Unitate de declansare MicroLogic 1.3 M pentru intreruptoare ComPacT NSX 400/630, electronica, de 320 A, 4 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | No |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Number of poles | 4 |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | - |
| Voltage type for actuating | Self powered |
| End value adjustment range undelayed short-circuit release | 4800 A |
| Overload release current setting | - |
| Rated permanent current Iu | 320 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 4800 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 5079,375 cm3 |
| weight | 1,818 kg |
| length | 21,5 cm |
| width | 17,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482003323 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 18,83 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 23606482003327 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 87,32 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 40 |
| qmin | 40 |
| um | PF |
