Descriere

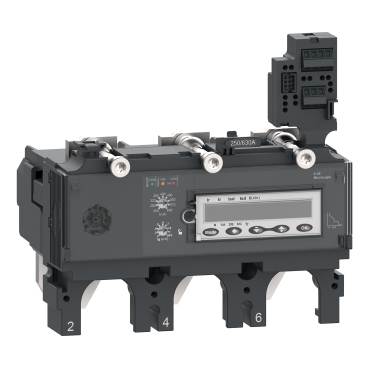

Unitate de declansare MicroLogic 6.3 EM pentru intreruptoare ComPacT NSX 630, electronica, 500 A, 3 poli 3d
Documente
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | Yes |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Number of poles | 3 |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | Self powered |
| Rated control supply voltage DC | 24 V |
| End value adjustment range undelayed short-circuit release | 6500 A |
| Overload release current setting | 250 A |
| Rated permanent current Iu | 500 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 6500 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 5166,45 cm3 |
| weight | 1,45 kg |
| length | 21,5 cm |
| width | 17,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482003132 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,29 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 43606482003130 |
