Descriere

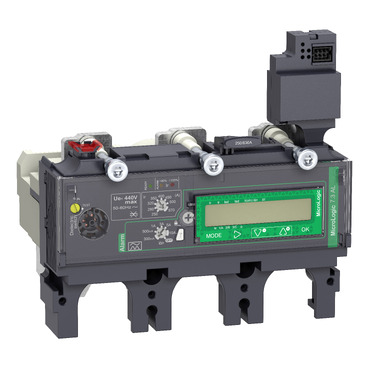

Unitate de declansare MicroLogic 7.3 E AL pentru intreruptoare ComPacT NSX 630, electronica, 570A, 3 poli 3d
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Type of motor protection | Electronic release |
| With ground fault protection function | No |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Rated control supply voltage DC | 24 V |
| Voltage type for actuating | Self powered |
| End value adjustment range undelayed short-circuit release | 6270 A |
| Overload release current setting | 250 A |
| Rated permanent current Iu | 570 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 855 A |
| Other | |
| Short-circuit release function | Delayed |
| Package 1 | |
| volume | 8879,091 cm3 |
| weight | 1,889 kg |
| length | 24,9 cm |
| width | 21,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481994325 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,122 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 43606481994323 |
