Descriere

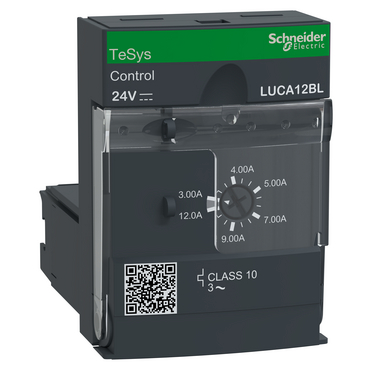

unitate de comandă std. LUCA - clasă 10 - 3...12 A - 24 V c.c.
Documente
Fisa tehnica
Specificatii
| Model/type | |
| Type of motor protection | Thermal/magnetic release |
| With ground fault protection function | Yes |
| Electrical | |
| Number of poles | 3 |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| End value adjustment range undelayed short-circuit release | 156 A |
| Overload release current setting | 3 A |
| Rated permanent current Iu | 12 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 156 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 440,64 cm3 |
| weight | 123 g |
| length | 8 cm |
| width | 10,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110363845 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,088 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 23 |
| qmin | 23 |
| um | CT |
| gtin | 43389110363843 |
