Descriere

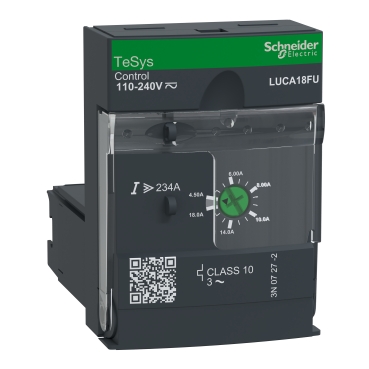

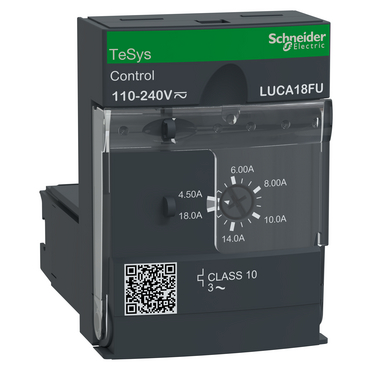

unitate de comandă std. LUCA - clasă 10 - 4.5...18 A - 110...220 V c.c./c.a.
Documente
Fisa tehnica
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Model/type | |
| Number of indicator lights | 0 |
| With transformer | No |
| Number of command positions | 0 |
| Type of motor starter | Other |
| With fuse | No |
| With short-circuit release | Yes |
| Electrical | |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | 4.5 A |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Rated conditional short-circuit current, type 2, 230 V | 4.5 A |
| Rated operation current Ie | 4.5 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | 18 A |
| Overload release current setting | 4.5 A |
| Rated operation current at AC-3, 400 V | 18 A |
| Rated conditional short-circuit current, type 2, 400 V | 18 A |
| Voltage type for actuating | AC/DC |
| Rated operation power at AC-3, 230 V, 3-phase | 7.5 kW |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated power, 575 V, 60 Hz, 3-phase | 15 kW |
| Rated power, 460 V, 60 Hz, 3-phase | 9 kW |
| Rated control supply voltage DC | 110 V |
| Communication | |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Operating conditions | |
| Ambient temperature, upper operating limit | 70 °C |
| Options | |
| External reset possible | No |
| Temperature compensated overload protection | Yes |
| Measurements | |
| Height | 66 mm |
| Width | 45 mm |
| Depth | 60 mm |
| Other | |
| Release class | CLASS 10 |
| Approval/certification | |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Protection | |
| Degree of protection (IP) | IP40 |
| Degree of protection (NEMA) | - |
| Mounting/installation | |
| Suitable for rail mounting | Yes |
| Application | |
| Suitable for emergency stop | No |
| Package 1 | |
| volume | 346,8 cm3 |
| weight | 125 g |
| length | 8,5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110364040 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,2 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 23 |
| qmin | 23 |
| um | CT |
| gtin | 43389110364048 |
