Descriere

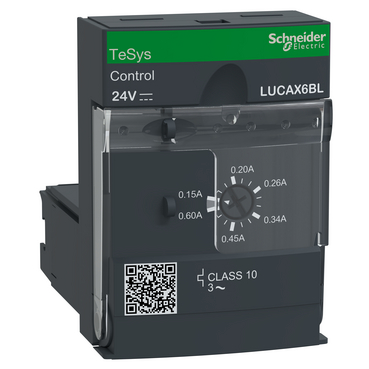

unitate de comandă std. LUCA - clasă 10 - 0,15...0,6 A - 24 V c.c.
Documente
Fisa tehnica
Specificatii
| Model/type | |
| Type of motor protection | Thermal/magnetic release |
| With ground fault protection function | Yes |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Number of poles | 3 |
| Rated control supply voltage AC 60 Hz | - |
| Voltage type for actuating | DC |
| Rated control supply voltage DC | 24 V |
| End value adjustment range undelayed short-circuit release | 7.8 A |
| Overload release current setting | 0.15 A |
| Rated permanent current Iu | 0.6 A |
| Setting/control | |
| Initial value of the undelayed short-circuit release - setting range | 7.8 A |
| Other | |
| Short-circuit release function | Undelayed |
| Package 1 | |
| volume | 340 cm3 |
| weight | 119 g |
| length | 5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110363814 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,002 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 23 |
| qmin | 23 |
| um | CT |
| gtin | 43389110363812 |
