Descriere

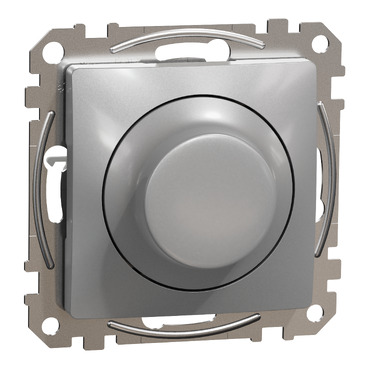

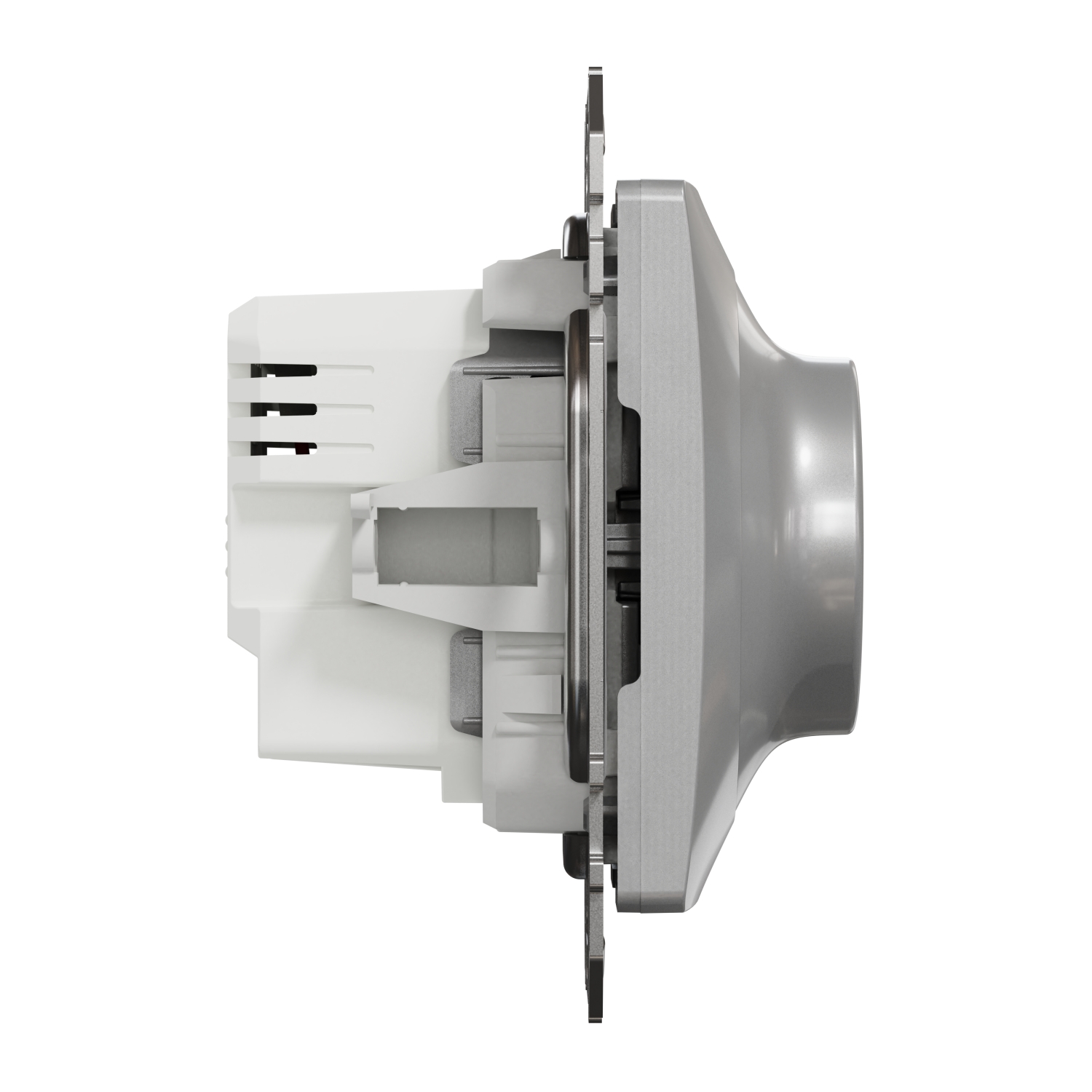

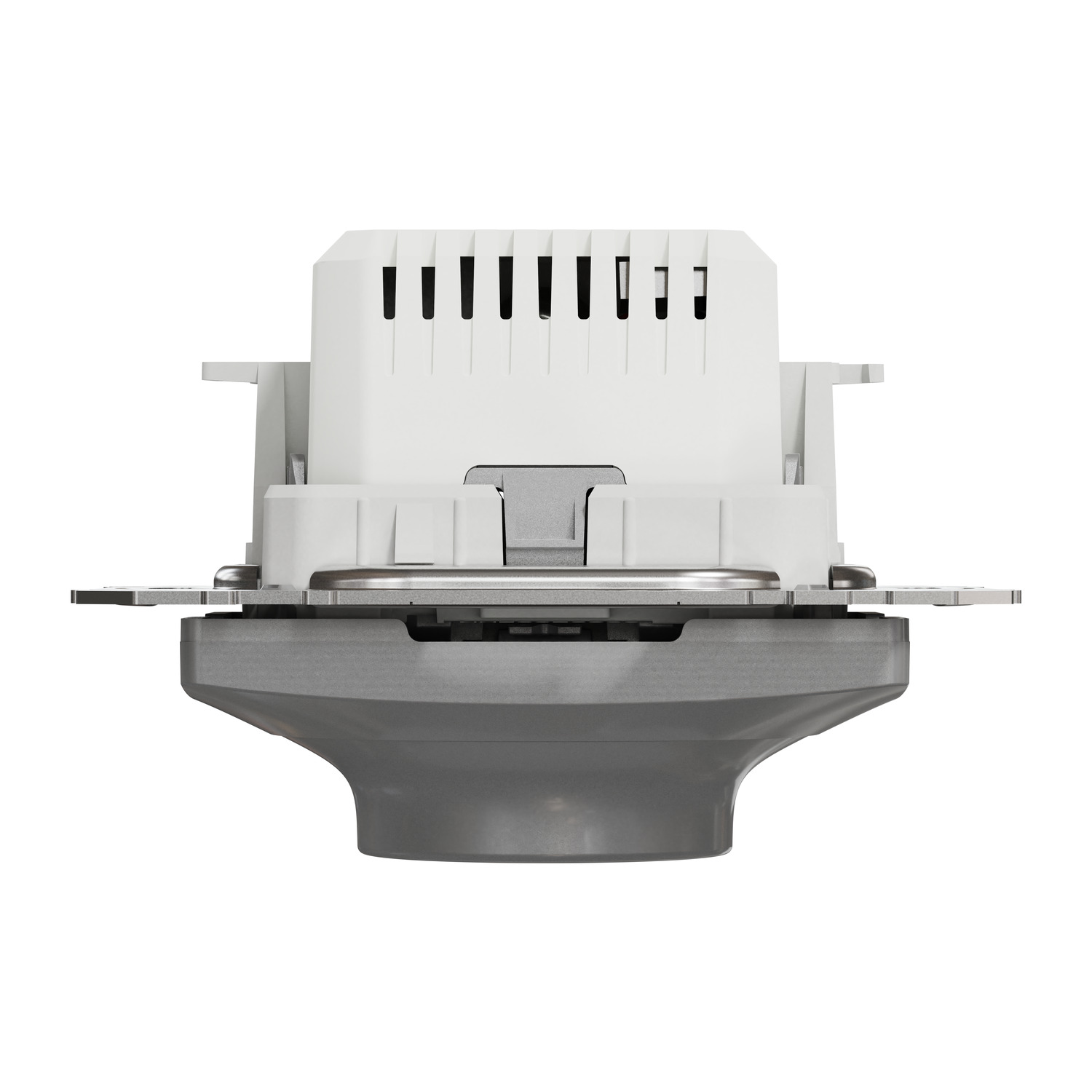

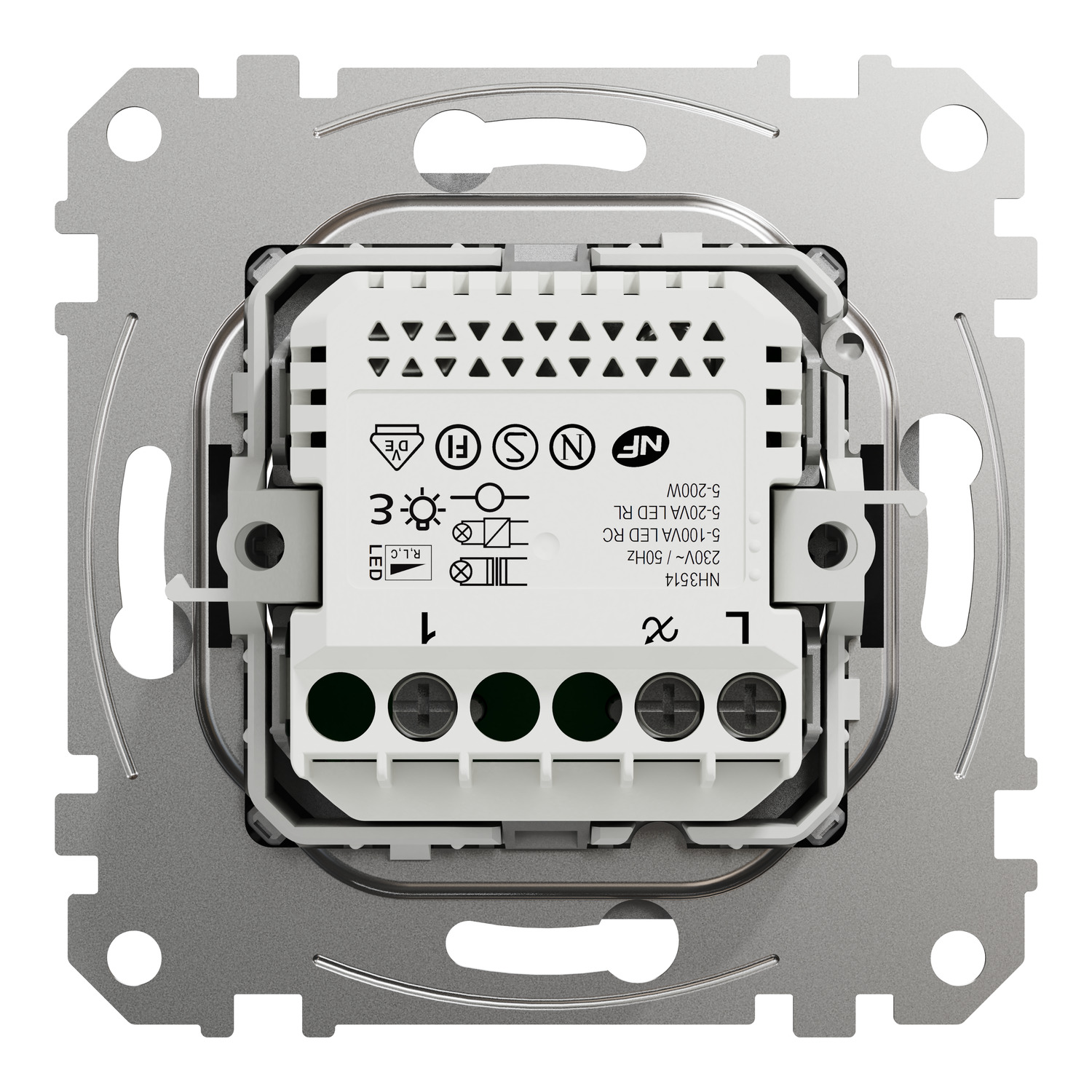

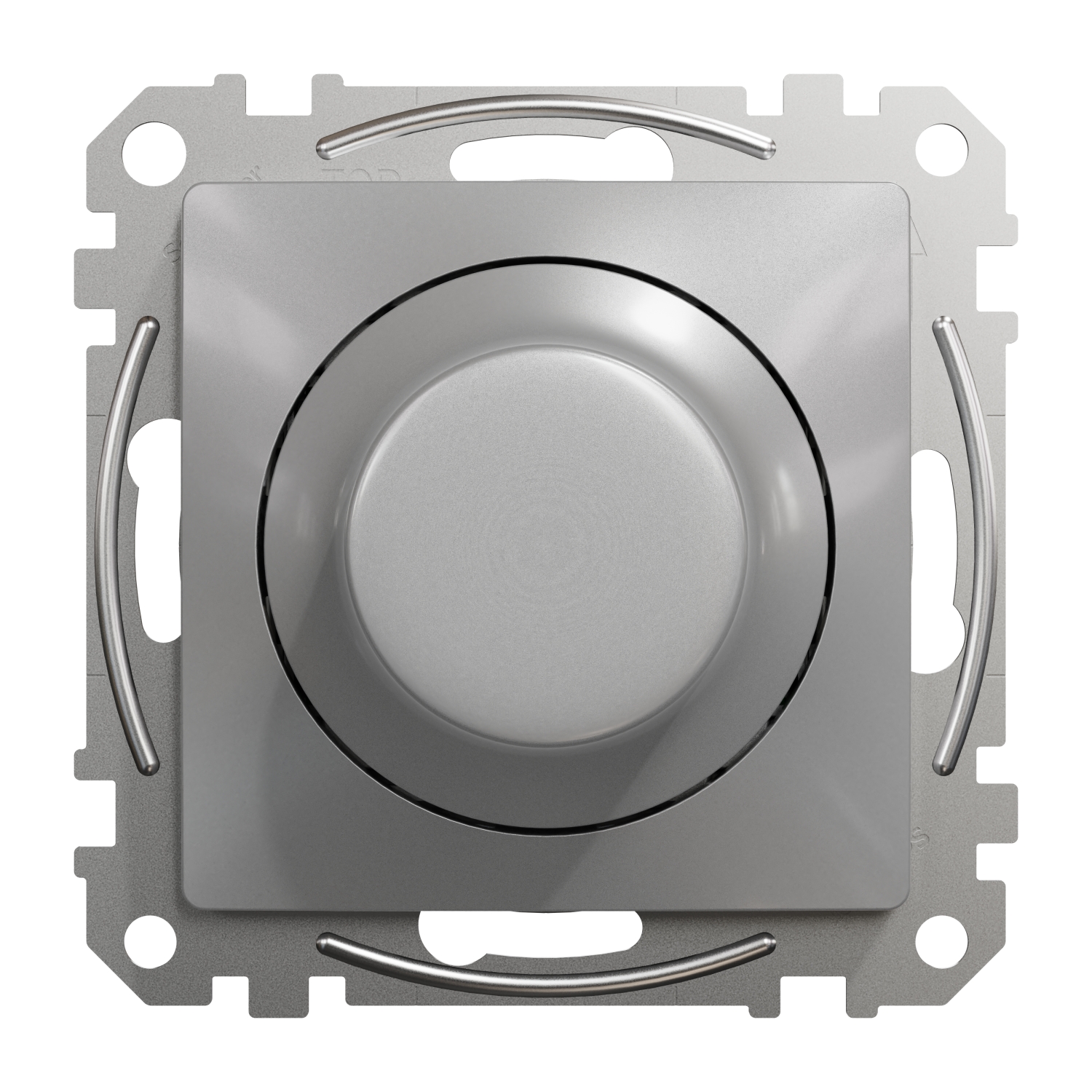

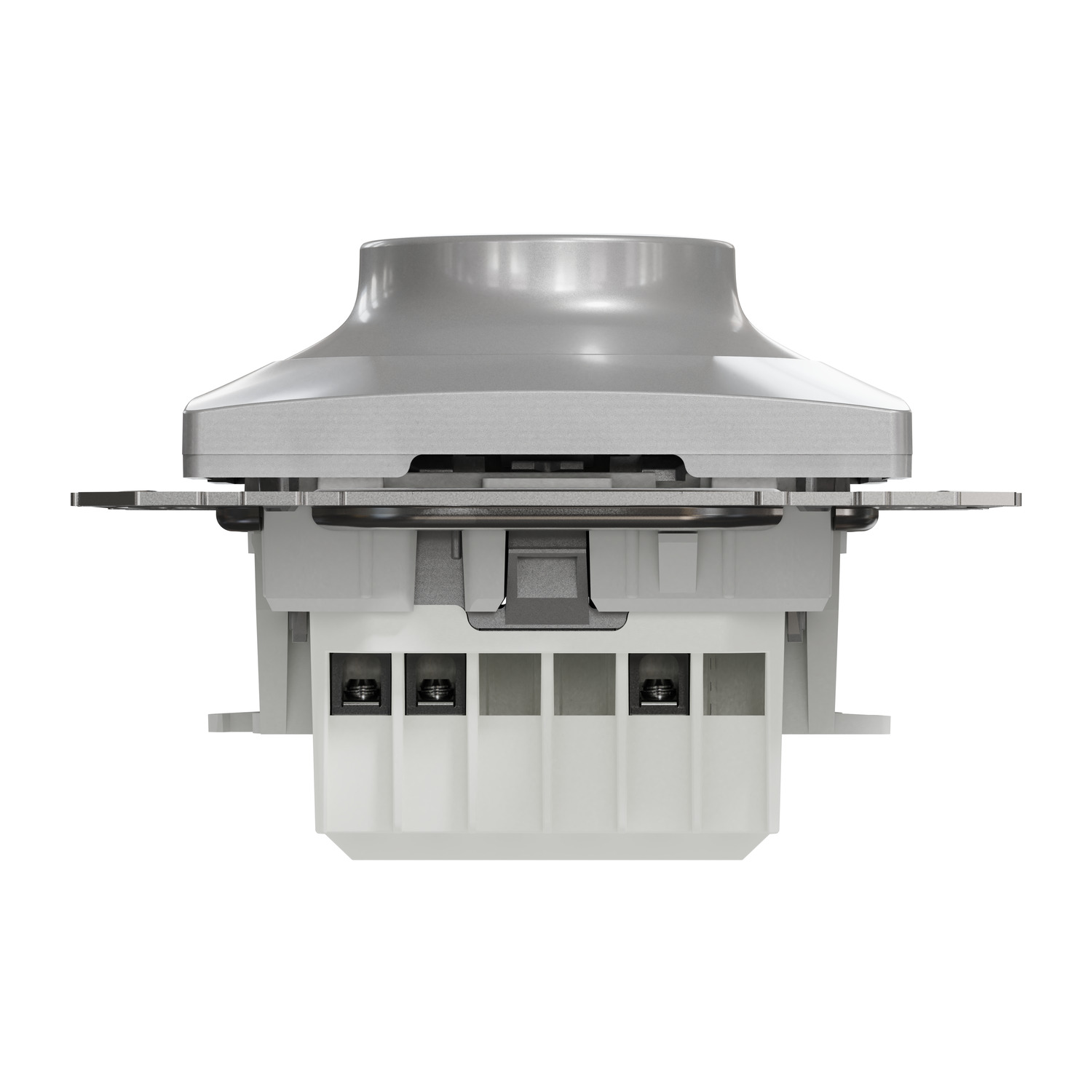

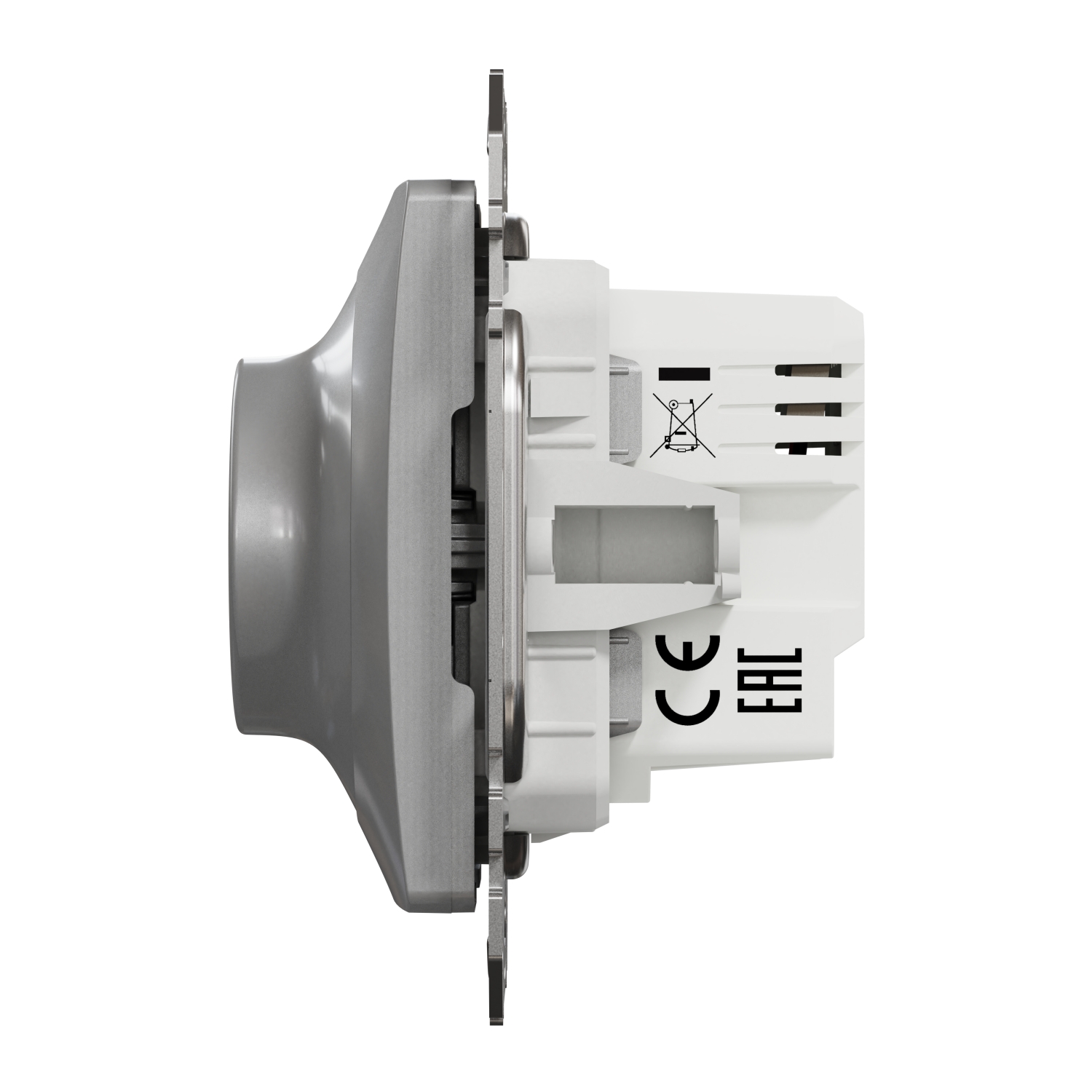

Sedna Design, Variator universal rotativ, LED, aluminiu
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Other |
| Halogen free | Yes |
| Material quality | - |
| Other | |
| Frequency | 50 Hz |
| Impact strength | IK02 |
| Model/type | |
| Type of load | Universal and LED Retrofit |
| Number of modules (module system) | - |
| Assembly arrangement | Basic element with central cover plate |
| Options | |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Applicable with movement sensor | No |
| Dimming phase cut-on (leading edge) | Yes |
| Dimming phase cut-off (trailing edge) | Yes |
| IFTTT support available | No |
| Serial dimmer | No |
| Light value memory | Yes |
| Applicable with presence indicator | No |
| Applicable with button | Yes |
| Applicable with time switch/timer | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Electrical | |
| Nominal voltage | 230 V |
| Nominal power inductive load | 5 VA |
| Nominal power resistive load | 5 W |
| Control voltage | - |
| Nominal power capacitive load | 5 VA |
| Max. switching power LED | 100 W |
| Colour | |
| RAL-number (similar) | 7047 |
| Transparent | No |
| Colour | Aluminium |
| Measurements | |
| Device depth | 55 mm |
| Min. depth of built-in installation box | 27 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Connection | |
| Core cross section | 1.5 mm² |
| Connection type | Screwed terminal |
| Substation input | Yes |
| Setting/control | |
| App control via Bluetooth | No |
| Method of operation | Turn/push button |
| Mounting/installation | |
| Type of fastening | Mounting with screw |
| Mounting method | Flush-mounted |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 722 cm3 |
| weight | 157 g |
| length | 9,5 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481467065 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,101 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 13606481467062 |
