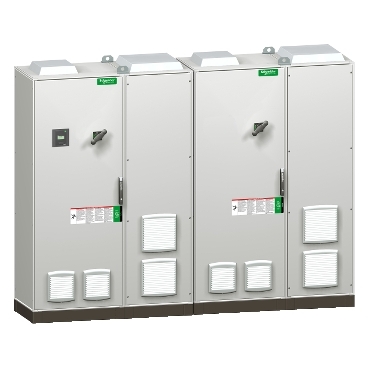

VarSet Auto 1000k DR3,8 400V-50 CB
Documente
Specificatii
| Measurements | |
| Width | 1600 mm |
| Depth | 600 mm |
| Height | 2200 mm |
| Electrical | |
| Number of phases | 3 |
| Voltage type (supply voltage) | AC |
| Supply voltage | 400 V |
| Rated operation current Ie at AC-1 | - |
| Reduction apparent power | 0 kVA |
| Reduction line voltage | 0 V |
| Rated operation current Ie at AC-15, 400 V | - |
| Reduction reactive power | 1000 kvar |
| Rated operation current Ie at AC-3 | - |
| Performance | |
| Power | - |
| Communication | |
| Supporting protocol for Modbus | Yes |
| With communication interface Ethernet | No |
| With communication interface RS-485 | Yes |
| With communication interface RS-232 | No |
| Supporting protocol for CAN | No |
| Consumption | |
| Reduction energy consumption | 0 % |
| Application | |
| Application | Power quality |
| Package 1 | |
| volume | 5740800 cm3 |
| weight | 1361 kg |
| length | 156 cm |
| width | 160 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480610141 |
