Descriere

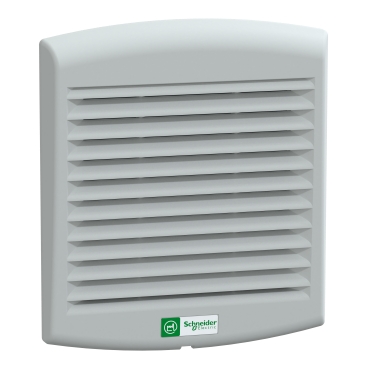

Vent. Fortata Climasys Ip54, 85M3/Ora, 230V, Cu Grilaj De Evacuare Si Filtru G2
Documente
Fisa tehnica
Specificatii
| Application | |
| Suitable for 19 inch rack mounting | No |
| Colour | |
| Colour | Grey |
| RAL-number | 7035 |
| Measurements | |
| Width | 150 mm |
| Depth | 62 mm |
| Height | 170 mm |
| Energy efficiency/environmental | |
| Noise emission | 49 dB(A) |
| Model/type | |
| Air circulator | Yes |
| With protective cover | Yes |
| Built as slide-in ventilator | Yes |
| EMC-version | No |
| With filter | Yes |
| Roof ventilator | No |
| Number of fans | 1 |
| Electrical | |
| Voltage type | AC |
| Operating voltage AC 50 Hz | 230 V |
| Operating voltage AC 60 Hz | 230 V |
| Operating voltage DC | - |
| Rated power | 17 W |
| Mounting/installation | |
| Mounting method | Snap mounting |
| Suitable for wall built-in | No |
| Protection | |
| Degree of protection (IP) | IP54 |
| Degree of protection (NEMA) | 13 |
| Performance | |
| Volume flow, freeblowing | 85 m³/h |
| Package 1 | |
| volume | 2232 cm3 |
| weight | 930 g |
| length | 18 cm |
| width | 15,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480151200 |
| Package 2 | |
| volume | 29799 cm3 |
| weight | 9,526 kg |
| length | 43 cm |
| width | 33 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43606480151208 |
| Package 3 | |
| volume | 912000 cm3 |
| weight | 241 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
| gtin | 73606480151209 |
