Descriere

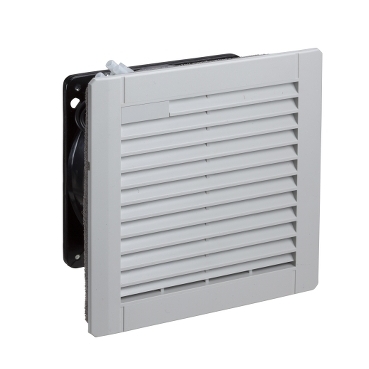

Ventilator Cem 156 M3/Ora
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Colour | |
| Colour | Grey |
| RAL-number | 7035 |
| Application | |
| Suitable for 19 inch rack mounting | No |
| Measurements | |
| Width | 250 mm |
| Depth | 117 mm |
| Height | 250 mm |
| Energy efficiency/environmental | |
| Noise emission | 50 dB(A) |
| Model/type | |
| Air circulator | Yes |
| With protective cover | Yes |
| Built as slide-in ventilator | Yes |
| EMC-version | Yes |
| Roof ventilator | No |
| With filter | Yes |
| Number of fans | 1 |
| Electrical | |
| Voltage type | AC |
| Operating voltage AC 50 Hz | 230 V |
| Operating voltage AC 60 Hz | 230 V |
| Operating voltage DC | - |
| Rated power | 20 W |
| Mounting/installation | |
| Mounting method | Snap mounting |
| Suitable for wall built-in | No |
| Protection | |
| Degree of protection (IP) | IP54 |
| Degree of protection (NEMA) | 13 |
| Performance | |
| Volume flow, freeblowing | 130 m³/h |
| Package 1 | |
| volume | 12265,5 cm3 |
| weight | 1,7 kg |
| length | 26 cm |
| width | 25,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480169397 |
| Package 2 | |
| volume | 1920000 cm3 |
| weight | 149 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
