Descriere

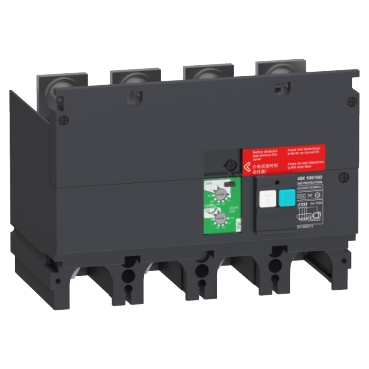

Earth-leakage add-on protection module VigiPacT, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles
Documente
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 200 V |
| Rated control supply voltage AC 60 Hz | 200 V |
| Max. rated operation voltage Ue | 440 V |
| Max. power on-delay time | 4000 ms |
| Rated control supply voltage DC | - |
| Rated fault current | 0.03 A |
| Setting/control | |
| Delay adjustable | Yes |
| Package 1 | |
| volume | 3341,96 cm3 |
| weight | 1,299 kg |
| length | 17,2 cm |
| width | 14,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481298553 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 16,289 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 13606481298550 |
| Package 3 | |
| volume | 403200 cm3 |
| weight | 76,357 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
