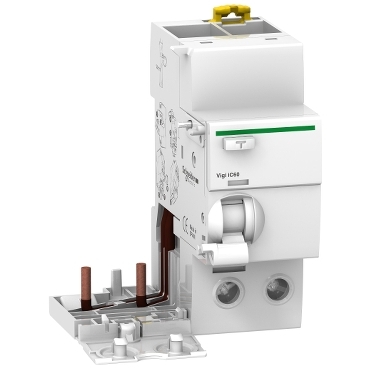

VIGI IC60 2P 63A 100MA A

Cod produs: A9V22263

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480090998

Descriere

Vigi iC60, Bloc Suplimentar Protectie Diferentiala, 2P, 63A, 100mA, Tip A

Documente

logo-pdf VIGI IC60 2P 63A 100MA A

Link

Specificatii

Electrical
Nominal voltage	230 V
Nominal current	63 A
Rated insulation voltage Ui	500 V
Surge current capacity	0.25 kA
Rated fault current	0.1 A
Number of poles	2
Rated impulse withstand voltage Uimp	6 kV
Leakage current type	A
Other
Max. delay time	0 ms
Frequency	50/60 Hz
Pollution degree	3
Setting/control
Delay adjustable	No
Rated fault current adjustable	No
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-25 °C
Model/type
With interlocking device	No
Protection
Degree of protection (IP)	IP20
Options
Anti-nuisance tripping version	No
Package 1
volume	897,84 cm3
weight	168 g
length	12 cm
width	8,6 cm
qmax	1
qmin	1
um	C62
gtin	3606480090998
Package 2
volume	36000 cm3
weight	5,025 kg
length	40 cm
width	30 cm
qmax	27
qmin	27
um	CT
gtin	43606480090996

Afiseaza mai multe specificatii
