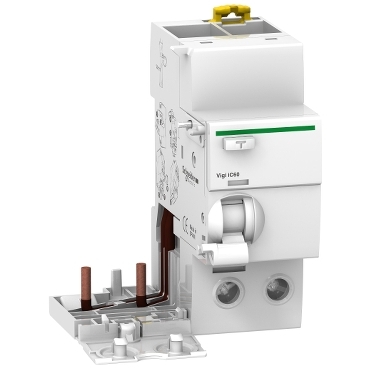

VIGI IC60 2P 63A 500MA AC-

Cod produs: A9V16263

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480087516

Descriere

Vigi Ic60, Bloc Suplimentar Protectie Diferentiala, 2P, 63A, 500Ma, Tip C.A

Documente

logo-pdf VIGI IC60 2P 63A 500MA AC-

Link

Specificatii

Electrical
Nominal voltage	230 V
Rated insulation voltage Ui	500 V
Nominal current	63 A
Surge current capacity	0.25 kA
Rated fault current	0.5 A
Number of poles	2
Rated impulse withstand voltage Uimp	6 kV
Leakage current type	AC
Other
Max. delay time	0 ms
Frequency	50/60 Hz
Pollution degree	3
Setting/control
Delay adjustable	No
Rated fault current adjustable	No
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-5 °C
Model/type
With interlocking device	No
Protection
Degree of protection (IP)	IP20
Options
Anti-nuisance tripping version	No
Package 1
volume	923,296 cm3
weight	160 g
length	12,2 cm
width	8,8 cm
qmax	1
qmin	1
um	C62
gtin	3606480087516
Package 2
volume	36000 cm3
weight	4,949 kg
length	40 cm
width	30 cm
qmax	27
qmin	27
um	CT
gtin	43606480087514

Afiseaza mai multe specificatii
