Descriere

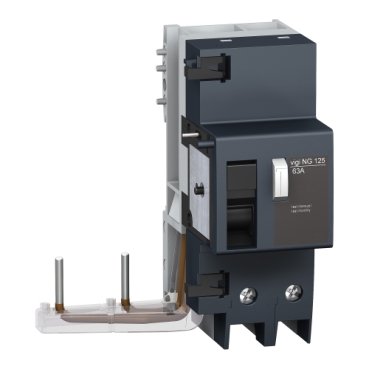

Acti9, bloc diferential VIGI NG125, 2P, 63A, 30mA, tip A, tensiune de functionare 110-230V
Documente
Specificatii
| Electrical | |
| Nominal voltage | 110 V |
| Nominal current | 63 A |
| Rated insulation voltage Ui | 690 V |
| Surge current capacity | 3 kA |
| Rated fault current | 0.03 A |
| Number of poles | 2 |
| Rated impulse withstand voltage Uimp | 8 kV |
| Leakage current type | A |
| Other | |
| Max. delay time | 0 ms |
| Frequency | 50/60 Hz |
| Pollution degree | 3 |
| Setting/control | |
| Delay adjustable | No |
| Rated fault current adjustable | No |
| Connection | |
| Connectable conductor cross section solid-core | 1.5 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Model/type | |
| With interlocking device | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Options | |
| Anti-nuisance tripping version | No |
| Package 1 | |
| volume | 2204 cm3 |
| weight | 330 g |
| length | 16 cm |
| width | 14,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430190080 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,15 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 43303430190088 |
